SEAWATER COOLED MODELS SERVICE MANUAL NUMBER 23
Page 6A-28 90-861326--1 MARCH 1999
Water Tap Locations For Propshaft Coolers
IMPORTANT: Tapping into the wrong location can cause the engine to vapor lock or
run too cold.
MIE (Inboard) Models Only:
Splice into the port-side exhaust manifold water hose. This provides the temperatures and
pressures required to cool the packing glands without damaging them.
76254
T-Fitting

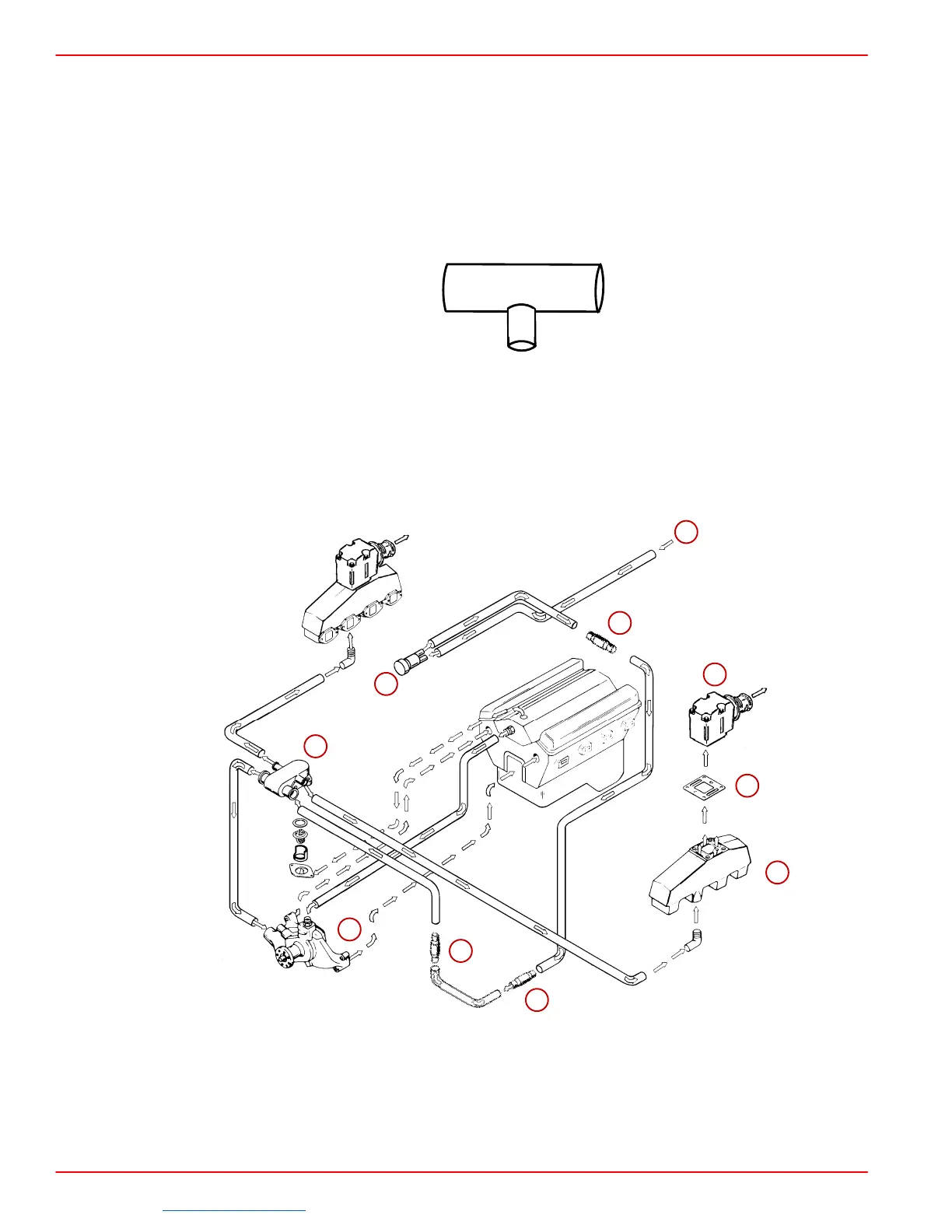

Water Flow Diagram
MCM / MIE Models With Raw Water Cooling
75151
6
7
4
9
3
2
5
10
1
8
