WALTER V-DRIVE TRANSMISSION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 8E-3
Changing Transmission Fluid
Draining Transmission
1. Remove the magnetic drain plug.
2. Disconnect oil hose from strainer fitting on bottom cover.
3. Remove oil strainer fitting from bottom cover. Do not remove elbow fitting from oil
strainer fitting.

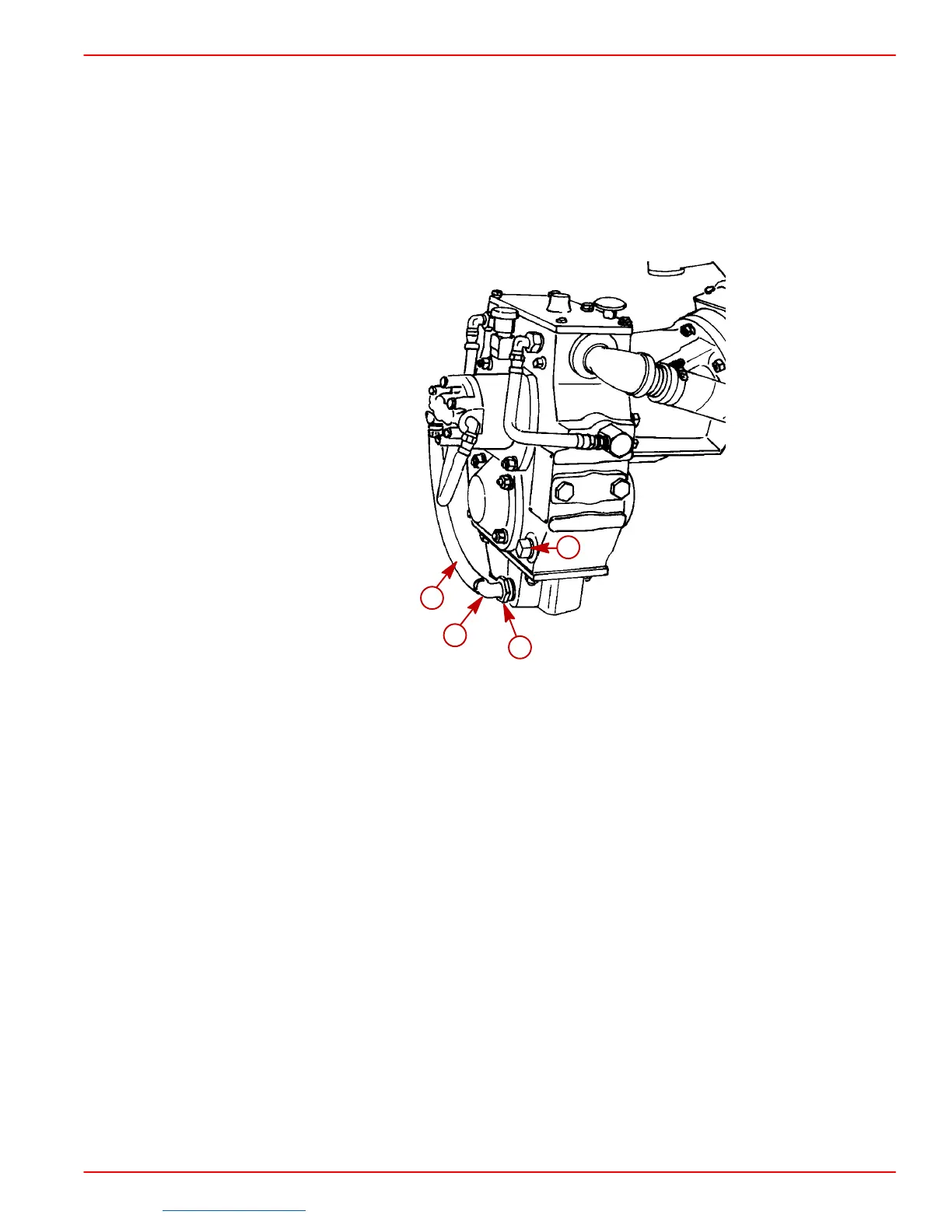

75192
a
b
c
d
a-Oil Hose
b-Magnetic Plug
c-Strainer Fitting
d-Oil Hose
4. Clean the outside surface of oil strainer.
5. Install magnetic plug.
6. Install oil strainer and oil hose.
