MULTI-PORT FUEL INJECTION DISASSEMBLY AND REASSEMBLY
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 5C-33
Fuel Pump Relay
NOTICE
Refer to “Precautions” in this section, BEFORE proceeding.
REMOVAL
1. Remove fuel pump relay from electrical bracket.

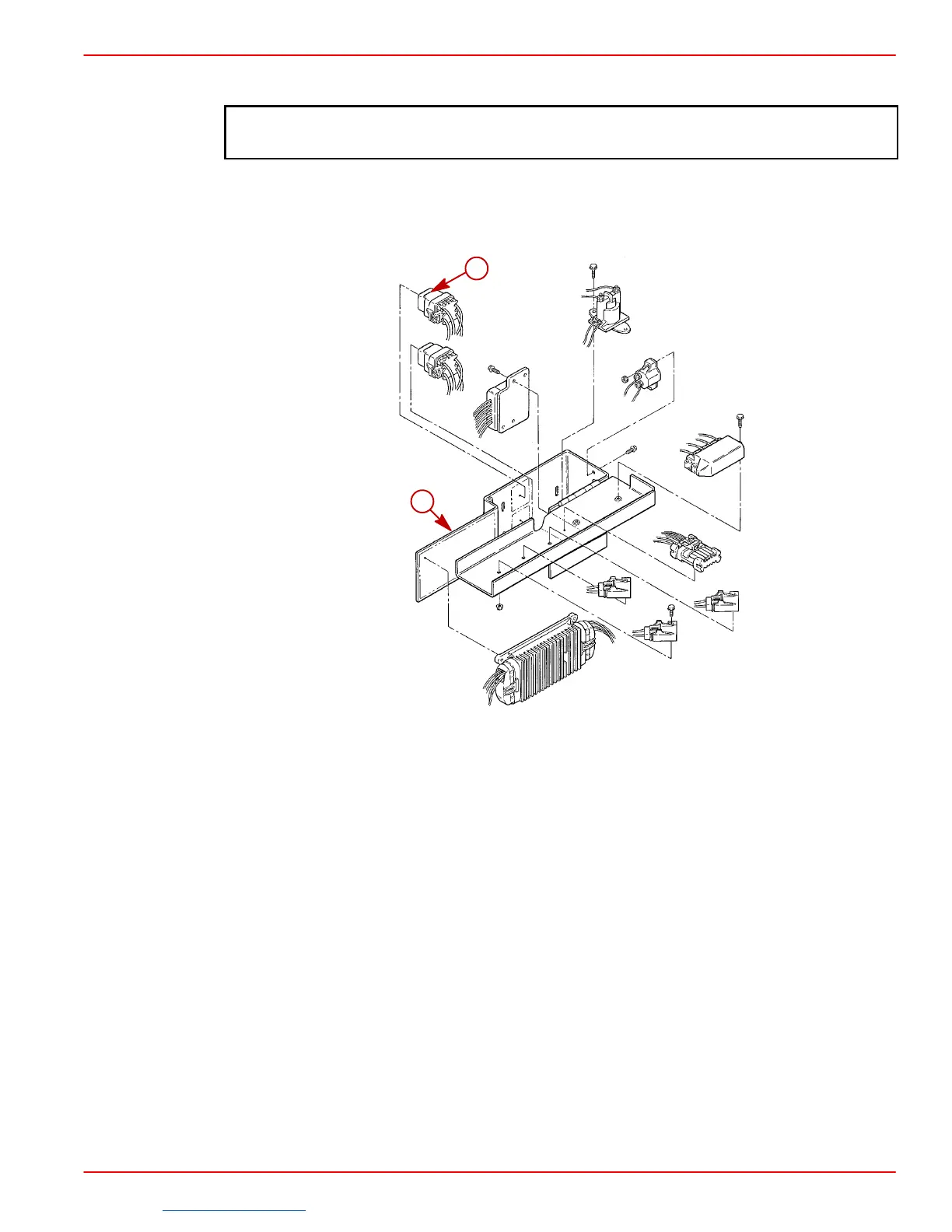

72801
a
b
a-Electrical Bracket
b-Fuel Pump Relay
2. Disconnect electrical connector and remove fuel pump relay.
IMPORTANT: The fuel pump relay is an electrical component. DO NOT soak in any
liquid cleaner or solvent; damage may result.
INSTALLATION
1. Connect electrical connector to fuel pump relay.
2. Attach fuel pump relay to electrical bracket.
