STARTING SYSTEM SERVICE MANUAL NUMBER 23

Page 4A-14 90-861326--1 MARCH 1999

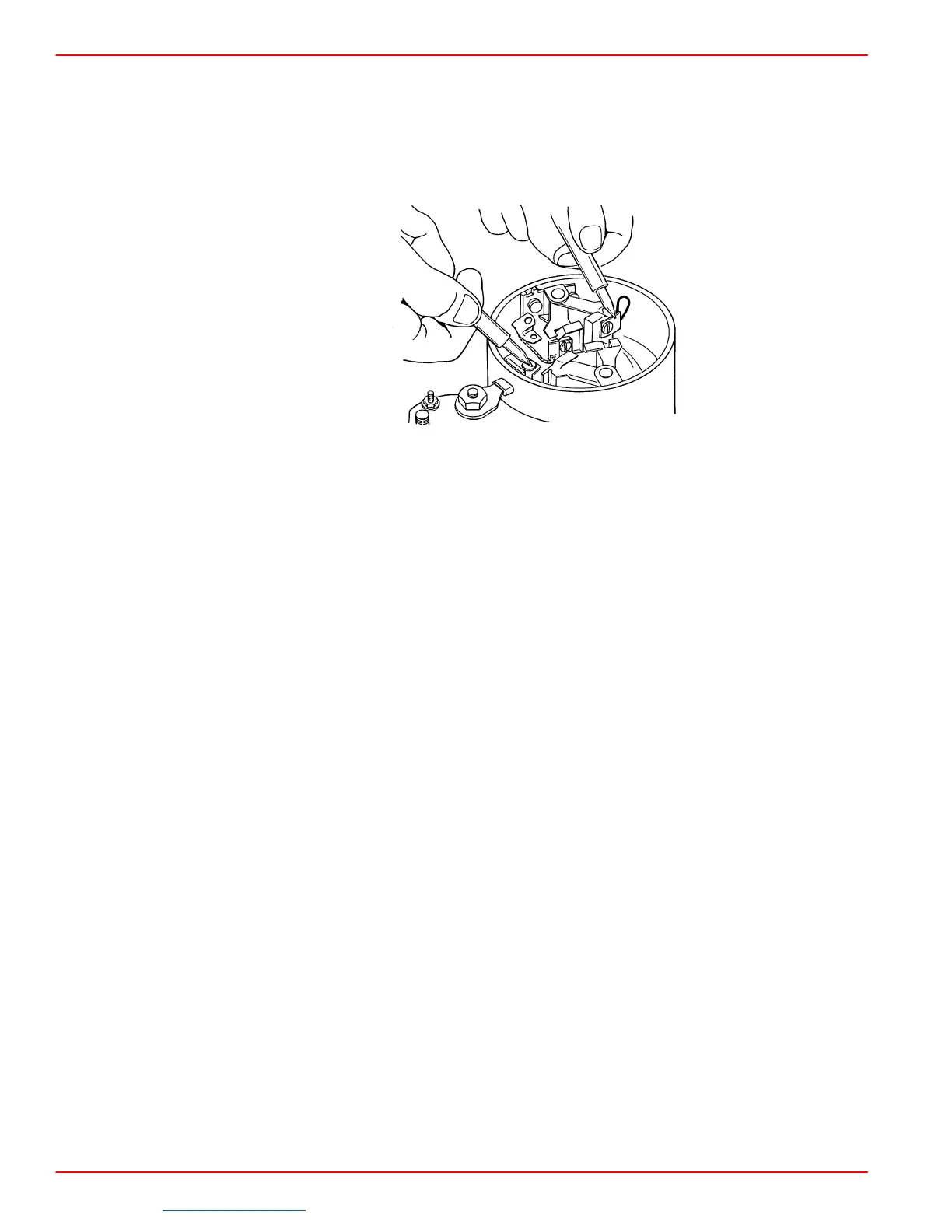

Field Coil Tests

TEST FOR OPEN CIRCUIT

1. With continuity meter, place one lead on each end of field coils (insulated brush and field

connector bar).

72635

2. If meter does not move, field coils are open and must be replaced.
