STARTING SYSTEM SERVICE MANUAL NUMBER 23
Page 4A-8 90-861326--1 MARCH 1999

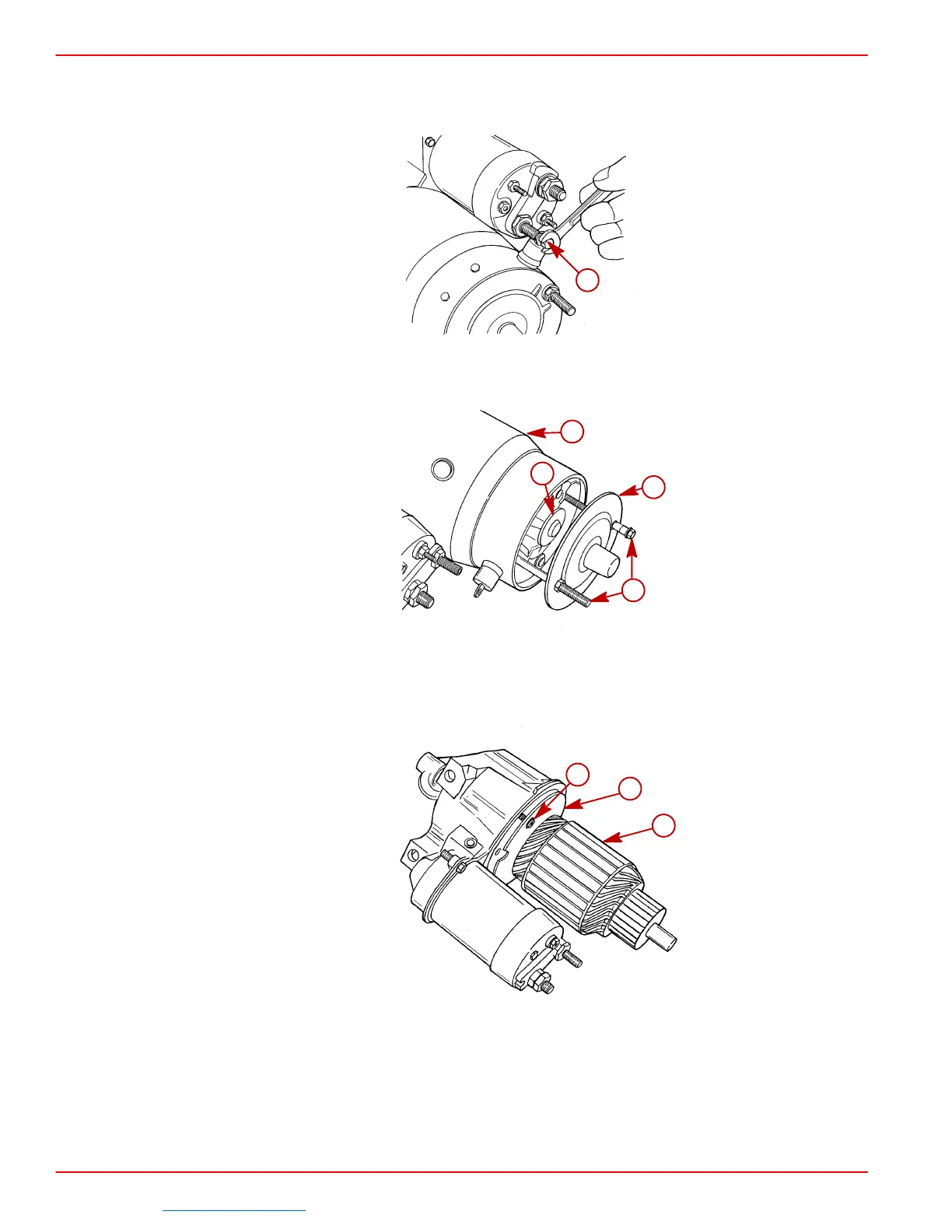

Starter Motor Disassembly
1. Remove screw from field coil connector.
72631
a
a-Connector Screw
2. Remove end frame screw/studs, end frame, washer and field frame.
72633
a
c
d
b
a-Screw/Studs
b-End Frame
c-Washer
d-Field Frame
3. Remove screws, center bearing plate and armature.
72634
a
b
c
a-Screws
b-Bearing Plate
c-Armature
4. Slide thrust collar off armature shaft.
5. Drive retainer ring toward armature.
6. Remove snap ring, retainer and clutch assembly.
