COLLECTORS SERVICE MANUAL NUMBER 23

Page 7D-6 90-861326--1 MARCH 1999

Component Replacement

72740

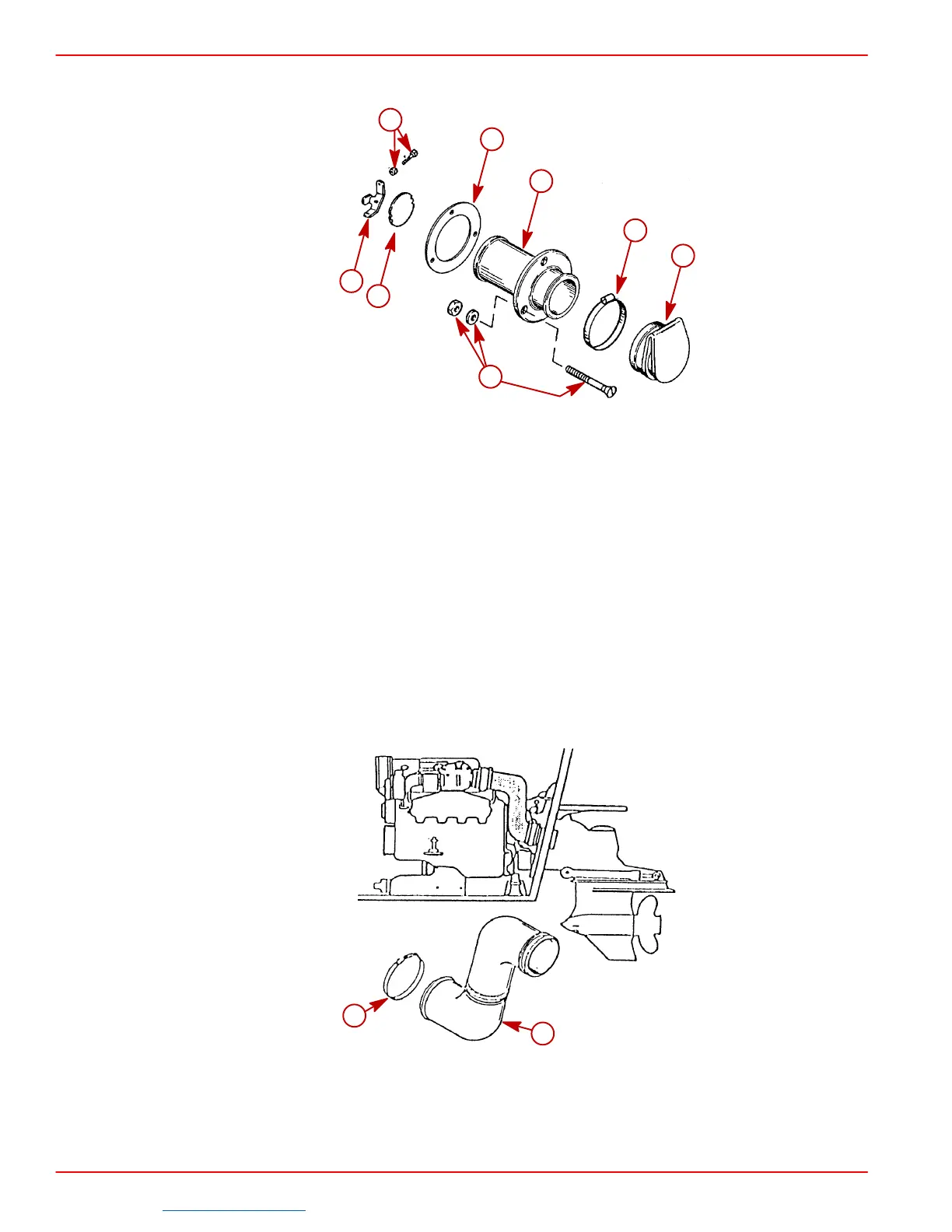

Transom Exhaust Kit

a-Screw And Nut (4)

b-Support Member

c-Water Shutter (Hinge Must Be Vertical)

d-Gasket

e-Exhaust Flange

f-Bolts, Washers and Nuts (3)

g-Clamp

h-Cover (Flapper)

Below Swim Platform Exhaust Pipe

This exhaust kit may be used on any MerCruiser installation having a 4 in. (102 mm) exhaust

elbow.

72742

a-8 Per Kit

b-2 Per Kit
