MIE MODELS - VELVET DRIVE TRANSMISSION SERVICE MANUAL NUMBER 23

Page 2C-14 90-861326--1 MARCH 1999

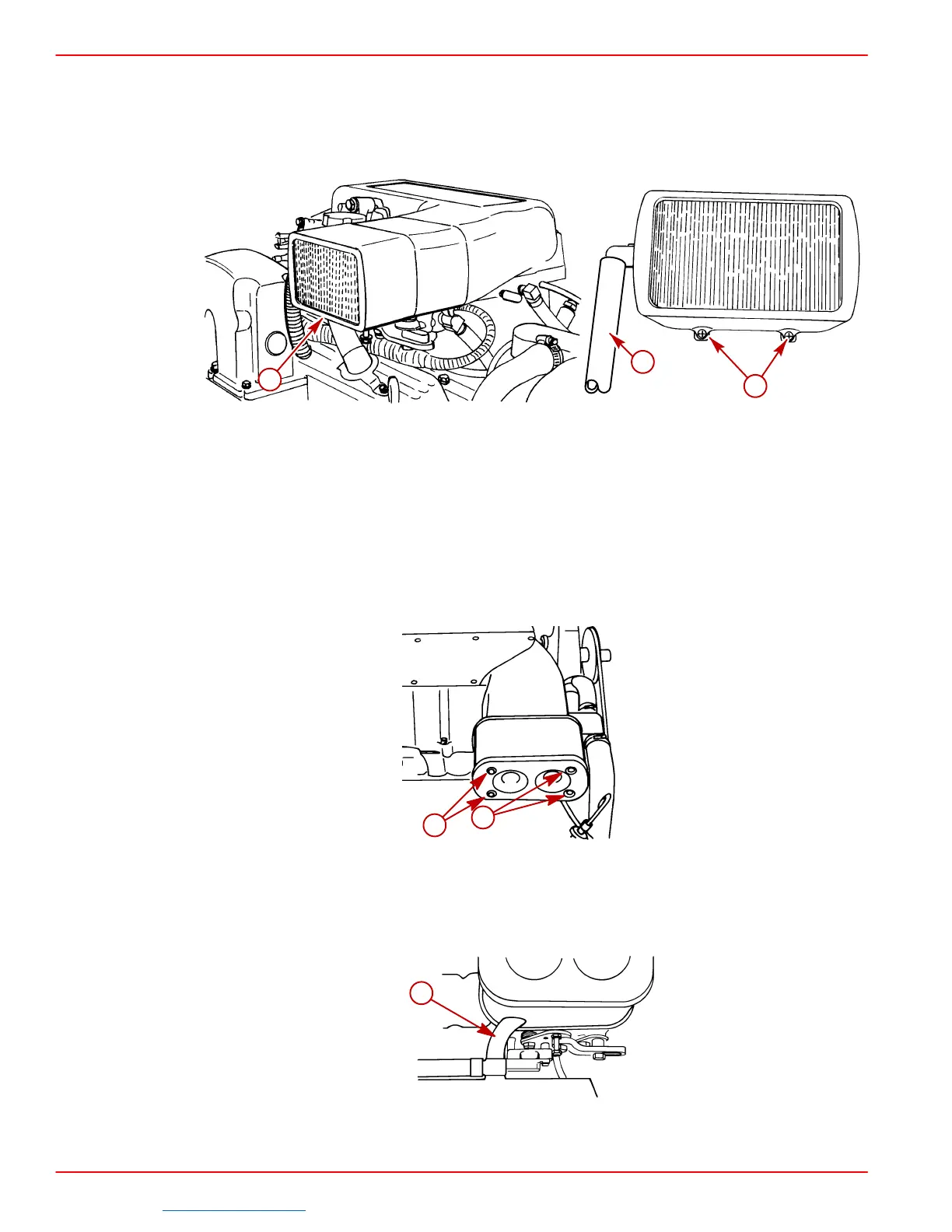

8. On 8.2L MPI Model

a. Install flame arrestor.

b. Connect crankcase ventilation hose.

c. Install flame arrestor screws and tighten securely.

75113

75142

8.2L MPI Shown

a-Flame Arrestor

b-Screws

c-Vent Hose

9. On 454 Mag MPI Horizon Model

a. Install flame arrestor.

b. Install locknuts.

71481

a-Locknuts

c. Position crankcase ventilation hose against flame arrestor and rocker arm cover fit-

tings as shown.

71764

a-Crankcase Vent Hose
