MIE MODELS - HURTH TRANSMISSION SERVICE MANUAL NUMBER 23
Page 2D-14 90-861326--1 MARCH 1999

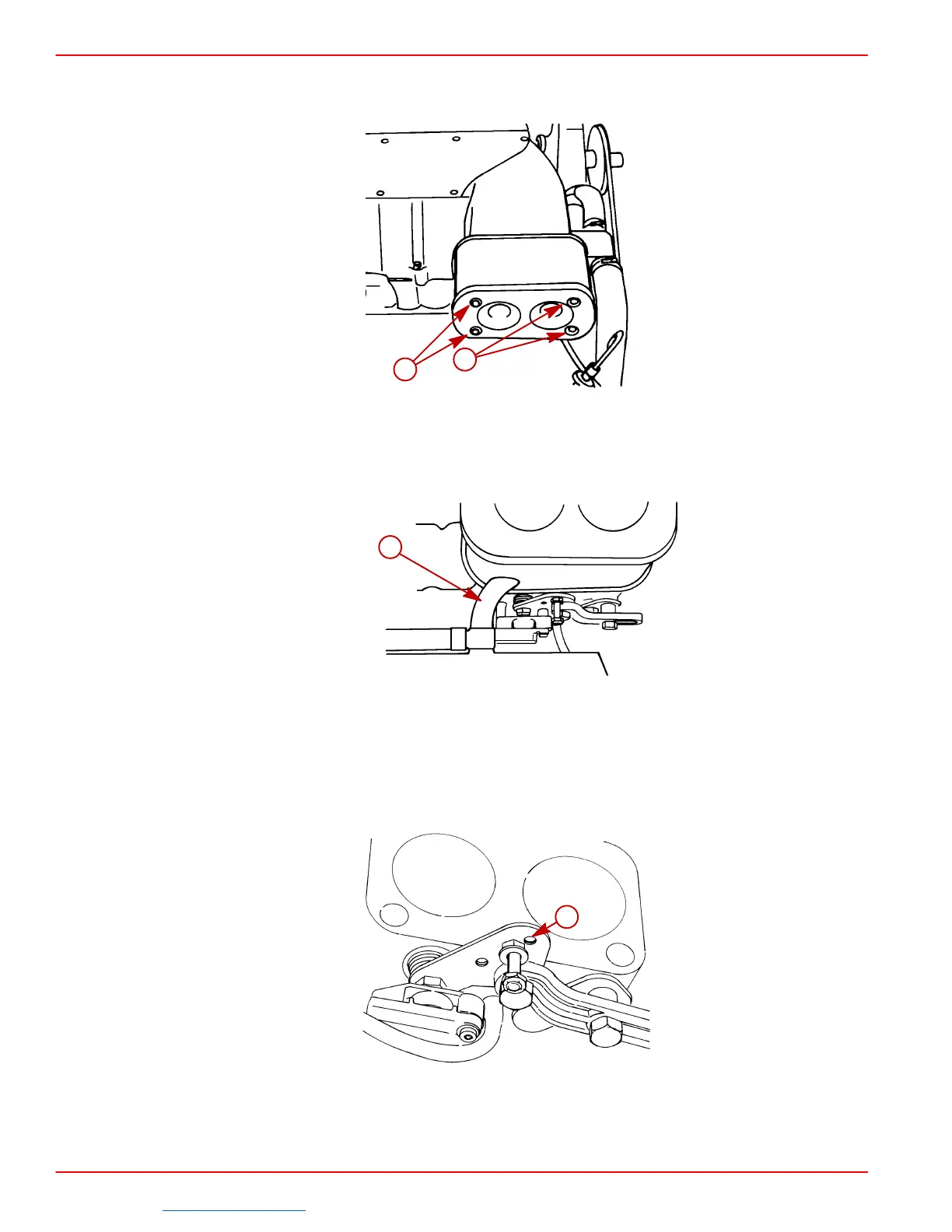

3. On 454 Mag MPI Horizon Model: Remove flame arrestor as follows:
a. Remove locknuts.
71481
a
a
a-Locknuts
b. Move crankcase ventilation hose away from flame arrestor and rocker arm cover fit-
tings.
71764
a
a-Crankcase Ventilation Hose
c. Remove flame arrestor.
NOTE: If boat is equipped with Quicksilver Zero Effort Controls, the throttle cable mounting
stud must be in the outer hole on the throttle lever.
73855
a
a-Position For Zero Effort Controls
