MIE MODELS - HURTH TRANSMISSION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 2D-21
6. Center cable end play. Adjust cable barrel to align holes in barrel and in cable end guide
with attaching points on transmission.
7. Temporarily install shift cable. Do not secure at this time.
73587
a

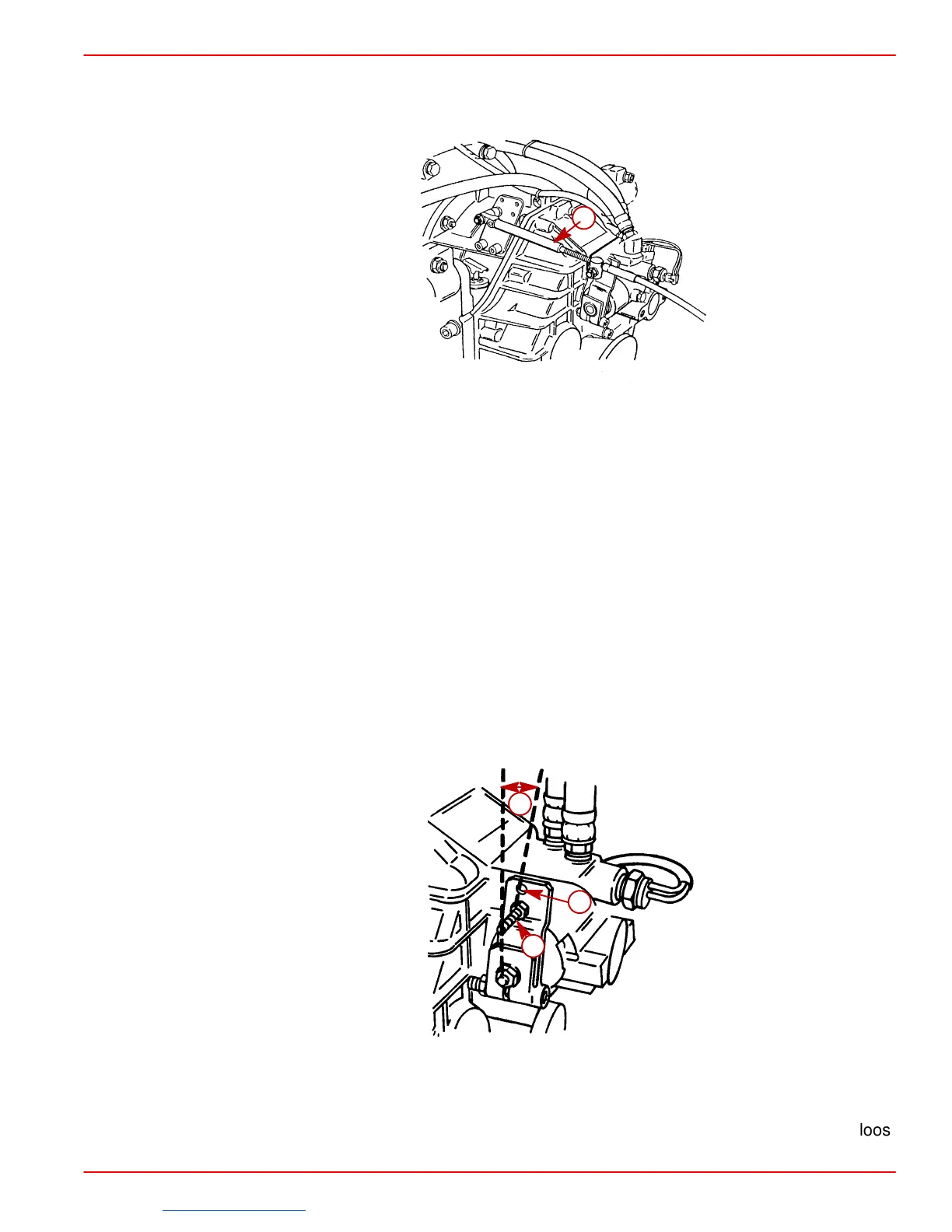

Typical
a-Shift Cable End Guide
IMPORTANT: Transmission is “fully” in gear when shift lever comes to a stop in either
direction.
8. Place remote control shift lever in forward gear position. Ensure transmission is fully in
gear, as follows:
a. Hold shift lever in position.
b. Carefully slide shift cable off of anchor points.
c. Attempt to move shift lever further.
9. Place remote control shift lever in the reverse gear position. Check that transmission is
fully in gear, following same procedure.
10. If transmission shift lever will position properly in one gear, but not in the other, recheck
shift cable adjustment. If transmission shift lever will not position properly in both gears,
move transmission shift lever stud (a), from top hole in shift lever to bottom hole and
recheck for proper positioning. If proper positioning is still not obtained, remote control
does not provide sufficient shift cable travel and must be replaced.
50228
a
b
c
a-Shift Lever Stud (In Bottom Hole, If Required)
b-Lever, In Neutral Detent, Must Be Approximately10
° Aft Of Vertical
c-Shift Lever Top Hole
11. Reattach locknut and washer to cable end guide stud. Tighten until contacts, then loos-
en one-half turn.
