454 CID (7.4L) / 502 CID (8.2L) SERVICE MANUAL NUMBER 23
Page 3A-50
90-861326--1 MARCH 1999

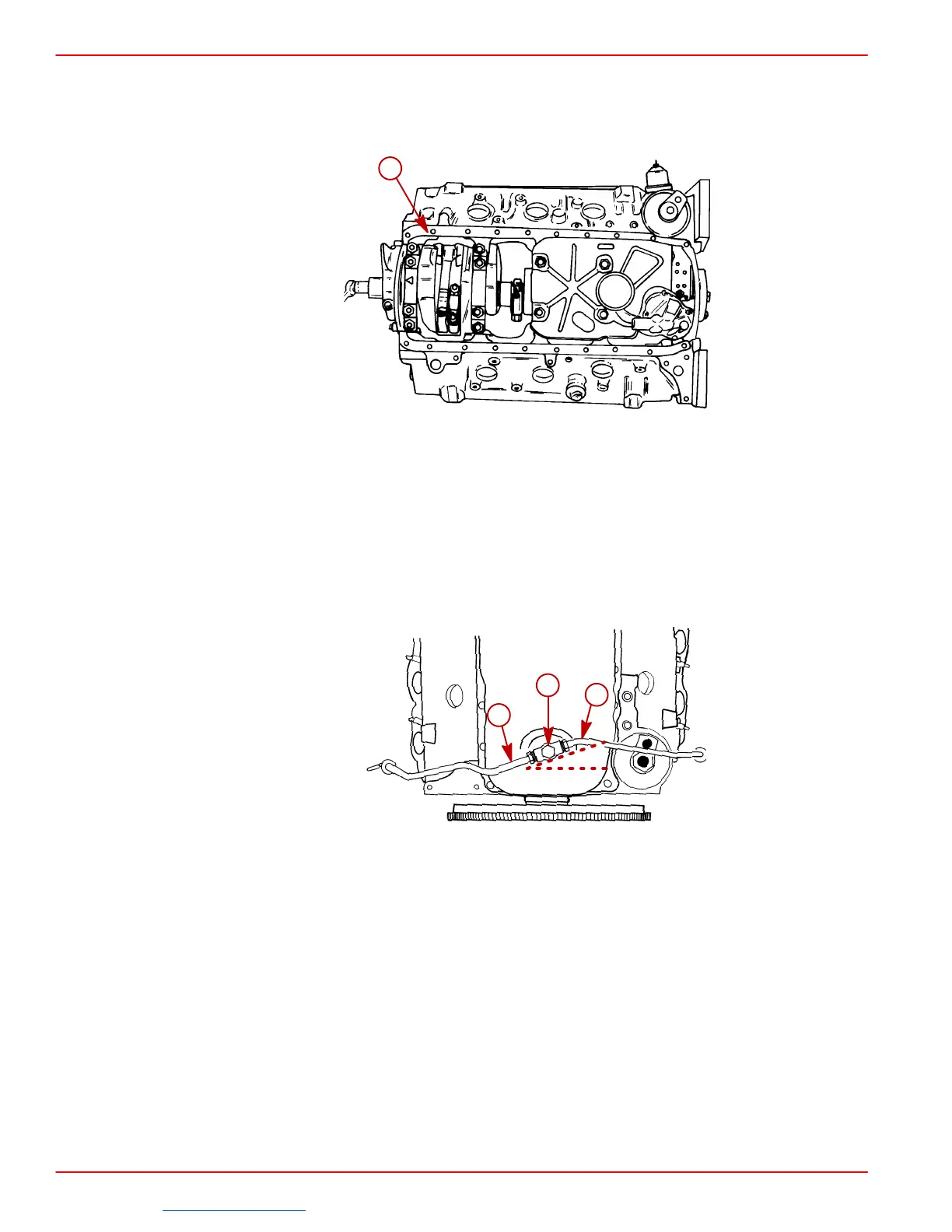

3. Install oil pan gasket in position as shown.
NOTE: A one-piece oil pan gasket may be re-used if it is still pliable and is not cracked, torn
or otherwise damaged.
75496
a
a-Oil Pan Gasket
4. Install oil pan. Starting from the center and working outward in each direction, torque to
18 lb-ft (25 Nm).
5. Install dipstick tube(s) and dipstick(s). Be certain, if equipped with two tubes, that they
are fitted where they were removed, and positioned as shown following.
IMPORTANT: DO NOT move or disturb the orientation of fitting on bottom of pan or
incorrect oil level readings may be obtained.
71308
c
b
a
a-Factory Positioned Fitting For Tubes (Do Not Move)
b-Port Tube
c-Starboard Tube
6. Fill crankcase with required quantity of oil of specified viscosity. See SECTION 1B
“Maintenance.”
