STARTING SYSTEM SERVICE MANUAL NUMBER 23
Page 4A-30 90-861326--1 MARCH 1999

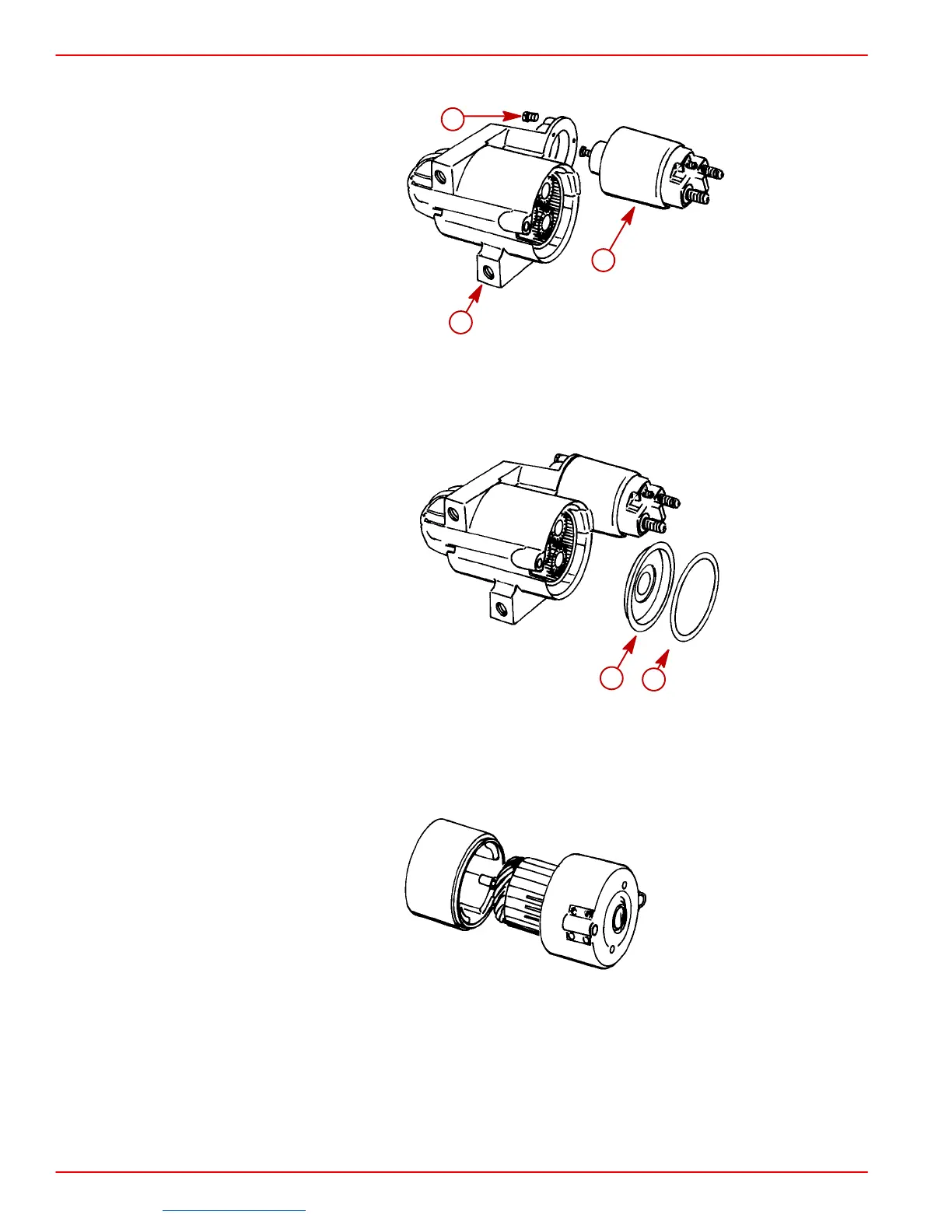

6. Place solenoid in drive housing and tighten screws.
74036
b
a
c
a-Drive Housing
b-Solenoid
c-Screw (3)
7. Install shield and washer in drive housing.
74038
a
b
a-Shield
b-Washer
8. Install field frame over armature. Align slot in end cap and field frame for proper position-
ing of rubber grommet.
