FUEL DELIVERY SYSTEM FOR ELECTRONIC FUEL INJECTION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 5A-15
IMPORTANT: To prevent loss of the stepped screw used to secure the cooler-to-fuel
rail fuel line, a retainer ring is provided. Do not remove the retainer or stepped screw.
75708
a
b
c
d
e

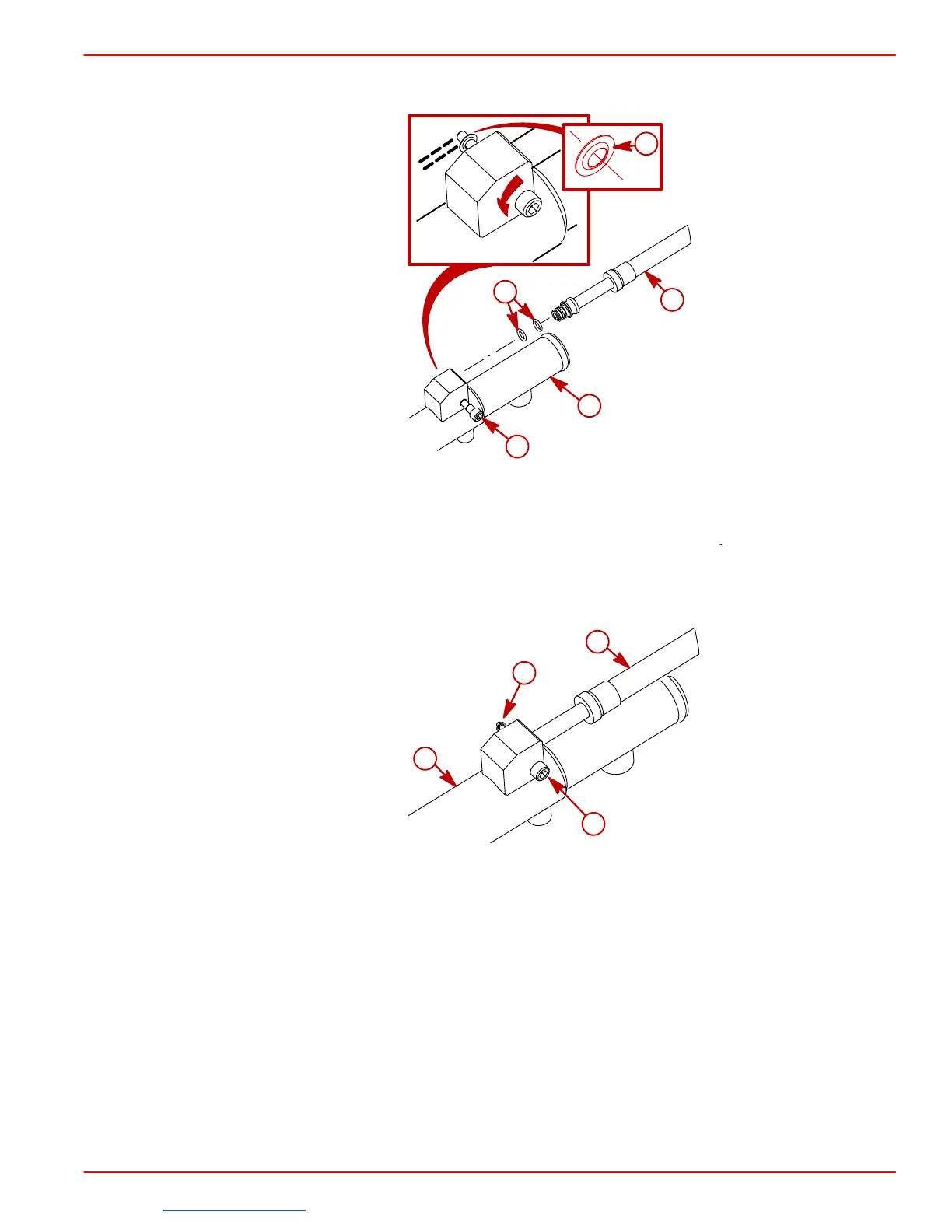

a-Fuel Line O-Rings
b-Fuel Line, Cooler-to-Fuel Rail
c-Fuel Cooler
d-Stepped Screw - Loosened To Accept Fuel Line
e-Retainer Ring
75708
a
b
c
d
a-Fuel Cooler
b-Fuel Line, Fuel Cooler to-Fuel Rail
c-Stepped Screw - Torqued
d-Retainer Ring
