FUEL DELIVERY SYSTEM FOR ELECTRONIC FUEL INJECTION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 5A-19

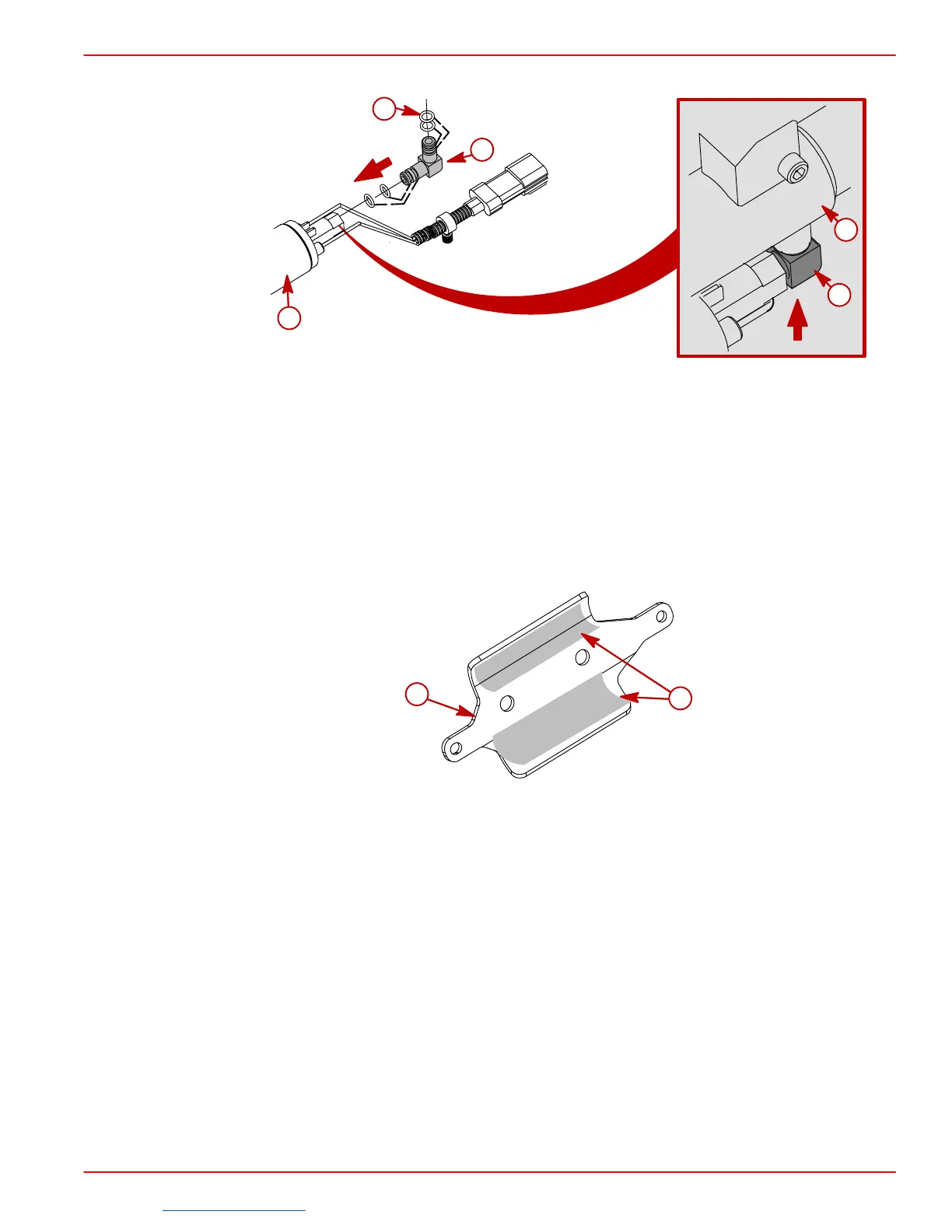

d. Install the fuel pump with elbow fitting in the cooler assembly.
75708
a
b
c
d
b
a-O-Rings (4)
b-Elbow Fitting
c-Fuel Pump
d-Fuel Cooler
4. Position the completed fuel cooler assembly in the cover base.
5. Apply a thin, even coating of Thermal Grease on all of the retainer bracket inside
surfaces where it contacts the cooler and the fuel pump when installed.
b
a
a-Retainer Bracket
b-Thermal Grease
6. Install the retainer bracket over the cooler and fuel pump. Apply Loctite 242 to the
threads of the mounting studs. Torque the two nuts to 50 lb. in. (5.6 N·m).
7. Install and securely tighten the seawater drain plug.
