VELVET DRIVE 5000A DOWN ANGLE TRANSMISSION SERVICE MANUAL NUMBER 23
Page 8B-14 90-861326--1 MARCH 1999
10. Install nut and washer to cable barrel stud. Tighten until they bottom out. Tighten
securely, but DO NOT OVER-TIGHTEN.
71780
71972
a
b
b
f
c
g
d
a
b
c
g
c
b
d
e
f

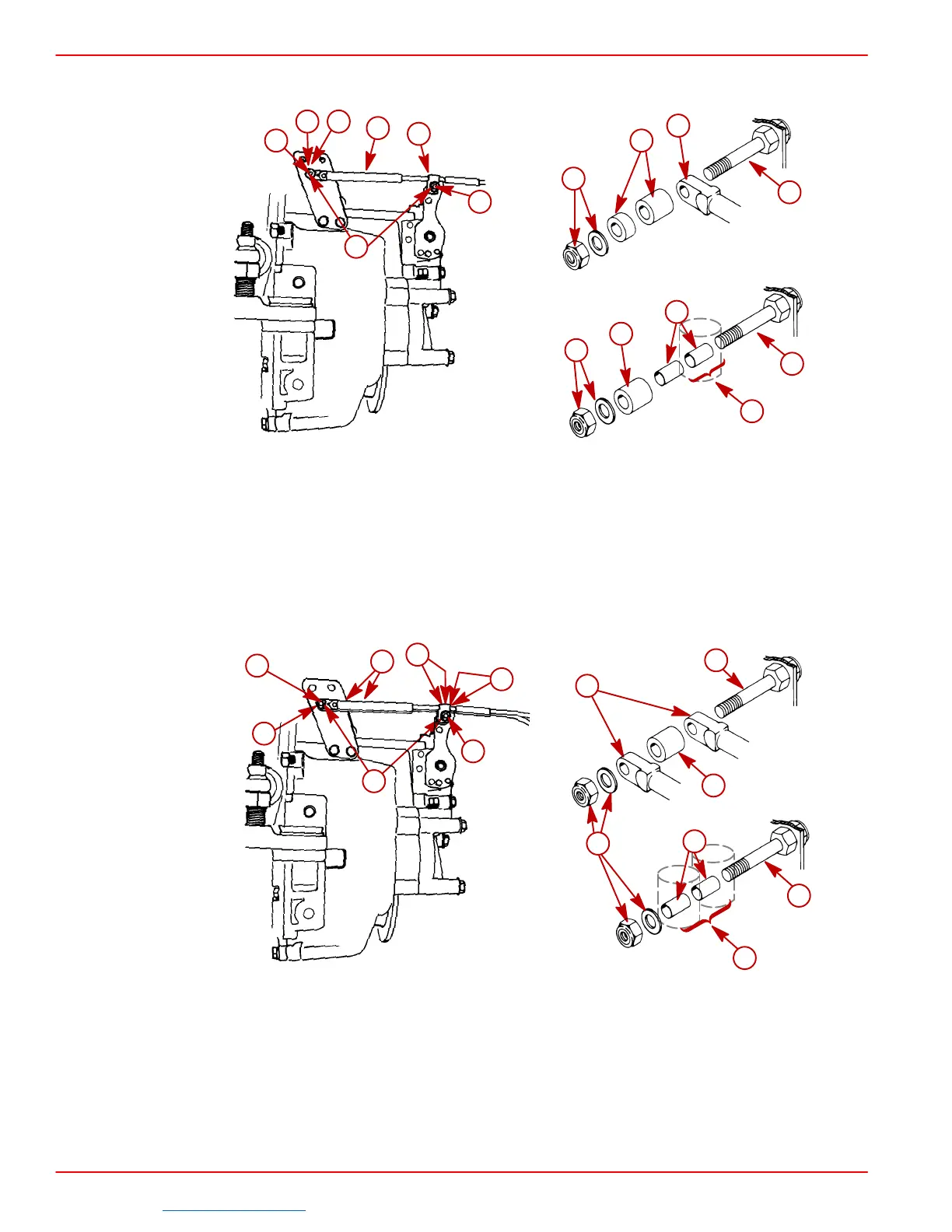

Typical Single Cable Installation - Rear Approach
a-Cable End Guide
b-Spacer (As Required)
c-Elastic Stop Nut And Washer
d-Bushing(s)
e-Cable Barrel (s) [Position (s) Only Indicated In Right Drawing]
f-Cable Barrel Stud
g-Cable End Guide Stud
71897
50073
a
b
c
d
f
e
g
a
a
b
c
d
e
f
g
Typical Dual Cable Installation - Rear Approach
a-Cable End Guide
b-Spacer (As Required)
c-Elastic Stop Nut and Washer
d-Bushing(s)
e-Cable Barrel (s) [Position(s) Only Indicated In Lower Drawing]
f-Cable Barrel Stud
g-Cable End Guide Stud
