MCM MODELS - BRAVO AND BLACKHAWK DRIVES WITH DRIVESHAFT EXTENSION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 2B-17
Throttle Cable Installation and Adjustment
MPI MODELS (EXCEPT 7.4L MPI)
1. Place remote control handle(s) in neutral idle position.
IMPORTANT: Be sure that cable is routed to avoid sharp bends and/or contact with
moving parts. DO NOT fasten any items to throttle cable. Outer cable must be free to
move when cable is actuated.

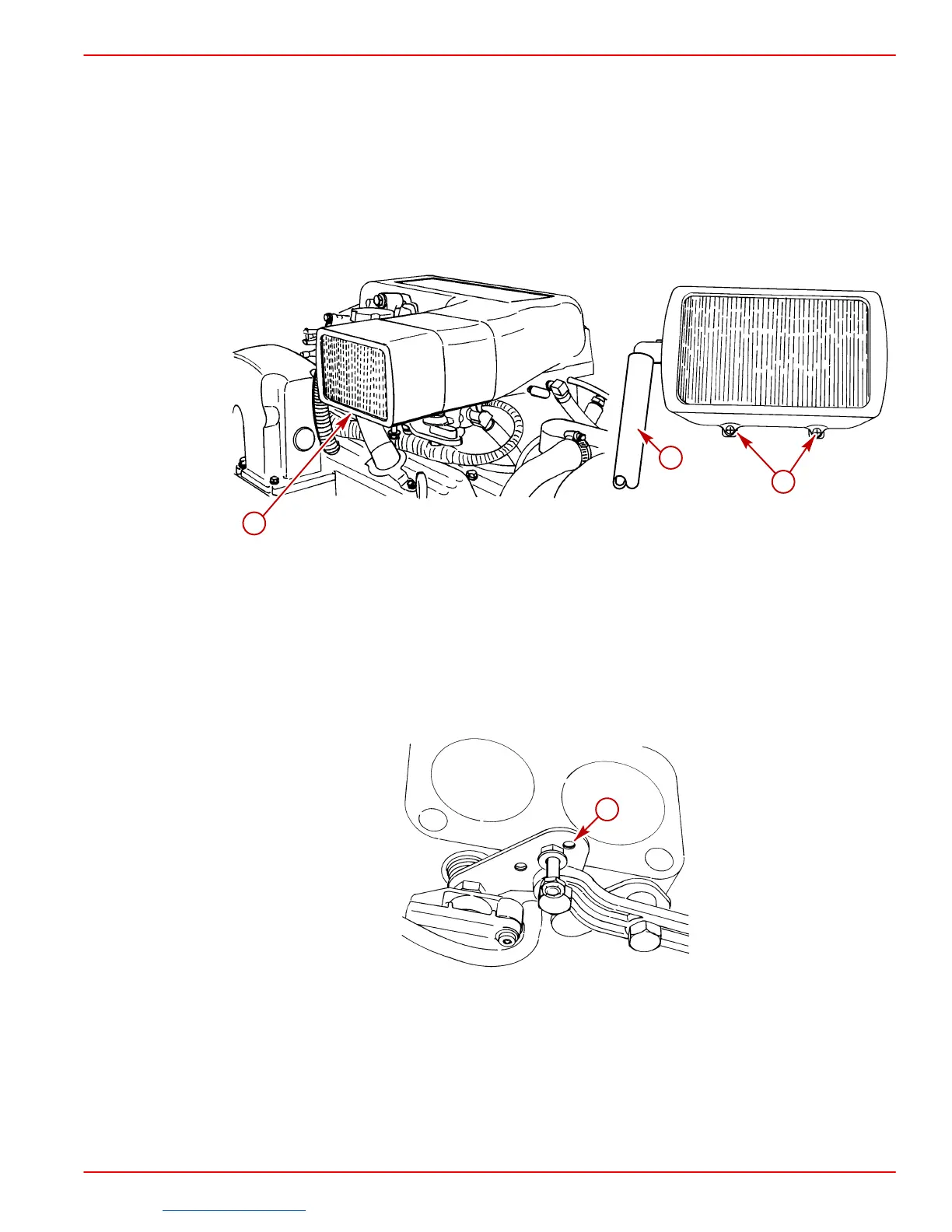

2. Remove flame arrestor.
75113
a
75142
b
c
454 and 502 Mag MPI Shown
a-Flame Arrestor
b-Screws
c-Vent Hose
NOTE: If boat is equipped with Quicksilver Zero Effort Controls, the throttle cable mounting
stud must be in the outer hole on the throttle lever.
73855
a
a-Position for Zero Effort Controls
