STARTING SYSTEM
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 4A-31

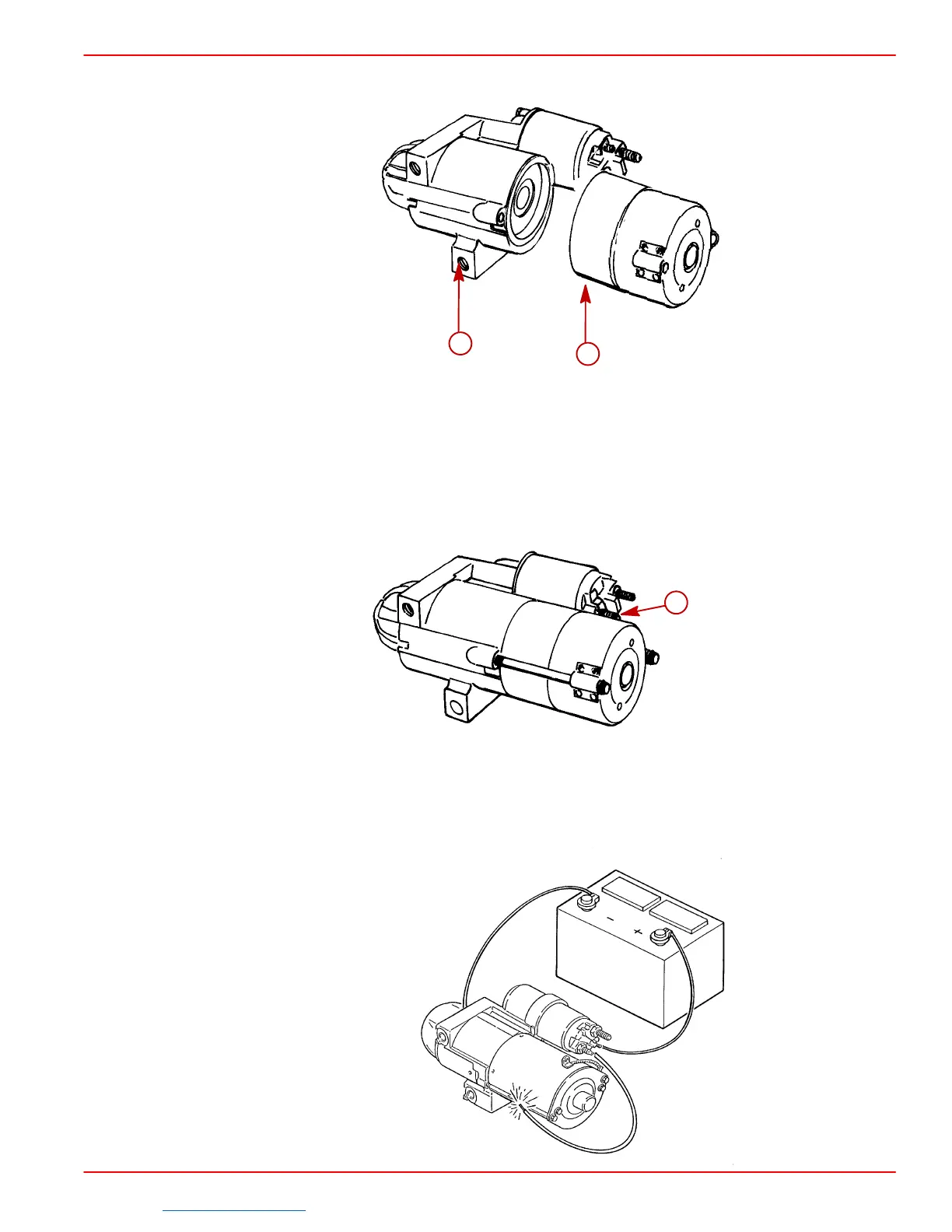

9. Install field frame and end cap in drive housing align slots in field frame with recess in
drive housing.
a
b
a-Drive Housing
b-End Cap And Field Frame
10. Install through bolts and brush lead. Tighten fasteners securely.
Pinion Clearance
Pinion clearance must be checked after reassembly of starter motor.
1. Disconnect brush lead from solenoid motor and insulate it carefully.
74041
a
a-Brush Lead
2. Connect 12 volt battery positive (+) lead to battery terminal and negative (–) lead to
frame.
3. Momentarily touch a jumper lead from battery terminal to switch terminal. This shifts
pinion into cranking position where it will remain until battery is disconnected.
72629
