MULTI-PORT FUEL INJECTION DISASSEMBLY AND REASSEMBLY
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 5C-9
Throttle Body
NOTICE
Refer to “Precautions” in this section, BEFORE proceeding.
REMOVAL

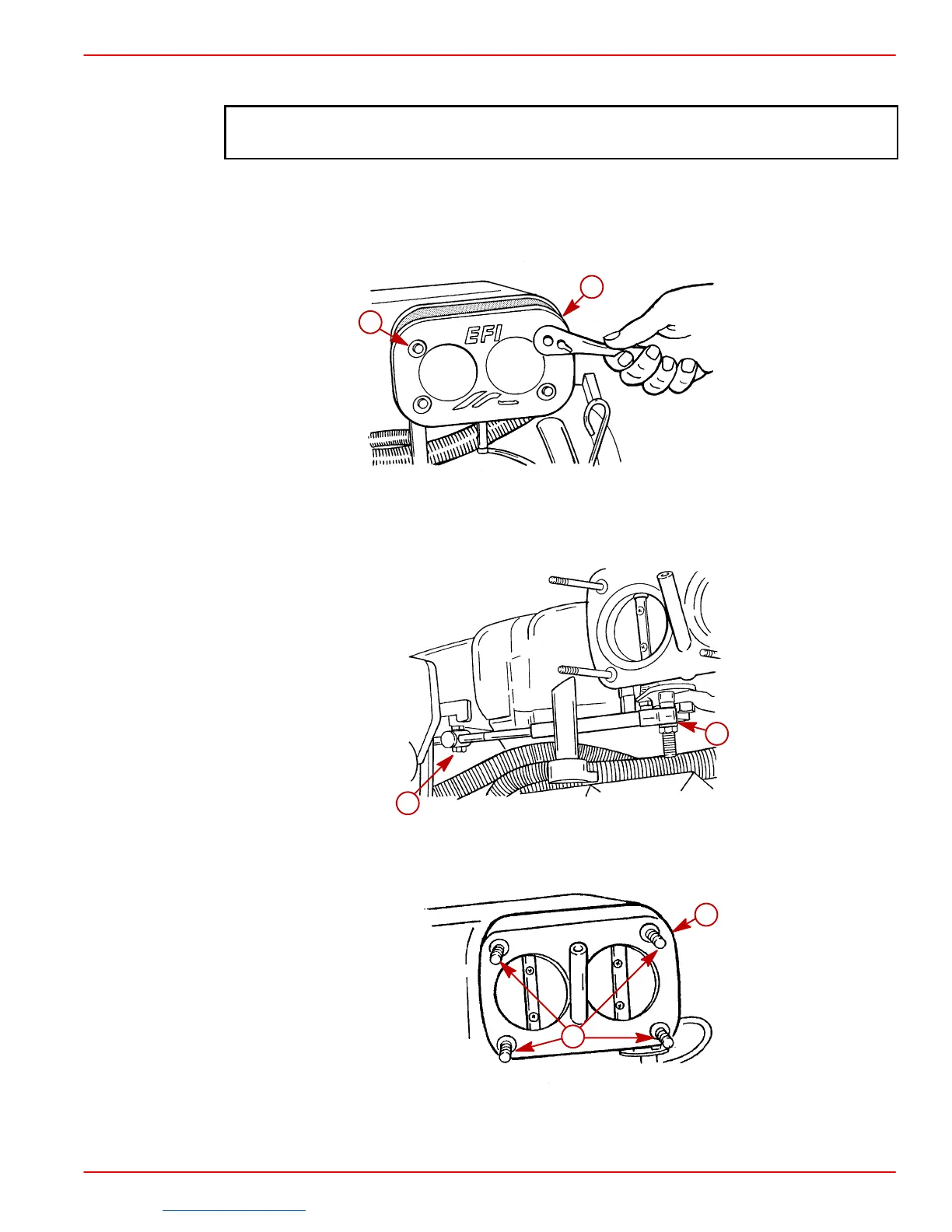

1. Remove four flame arrestor mounting cap nuts and remove flame arrestor from throttle
body.
72790
a
b
a-Flame Arrestor
b-Cap Nuts (4)
2. Disconnect throttle linkage.
72791
a
a
a-Throttle Linkage Connections
3. Remove four throttle body mounting studs using a stud driver.
72792
a
b
a-Throttle Body
b-Throttle Body Mounting Studs
