Exhaust Tube Installation

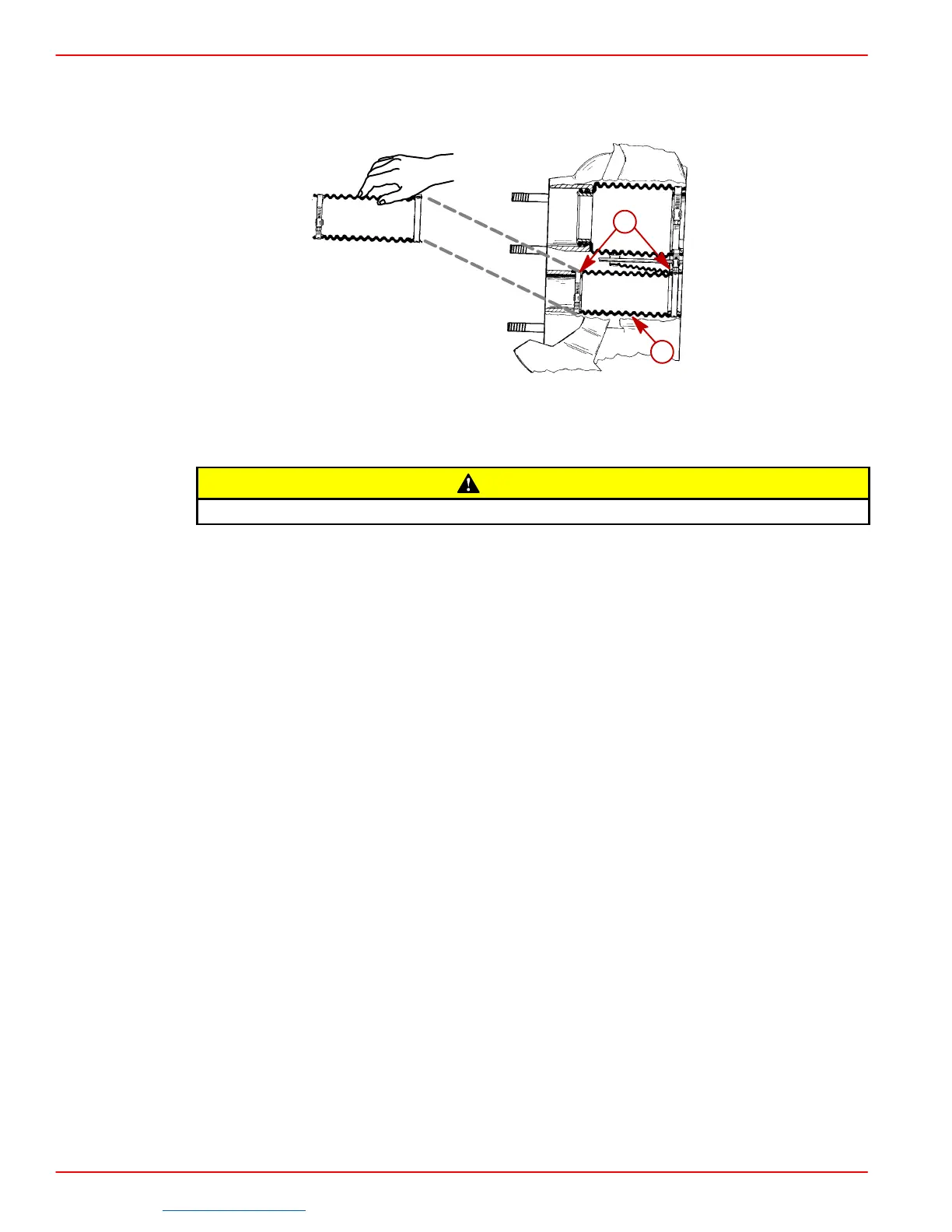

1. If required, remove and discard clamps and bellows from gimbal housing.
22116
a
b
2. If required, install exhaust tube on gimbal housing as follows:
3. Remove and discard clamps and exhaust bellows.
CAUTION
Exhaust tube clamp may corrode if grounding clip is not installed.
a. Install grounding clip on tube.
NOTE: Bellows adhesive is not used when installing an exhaust tube.
