MAINTENANCE

SERVICE MANUAL NUMBER 23

90-861326--1 MARCH 1999 Page 1B-39

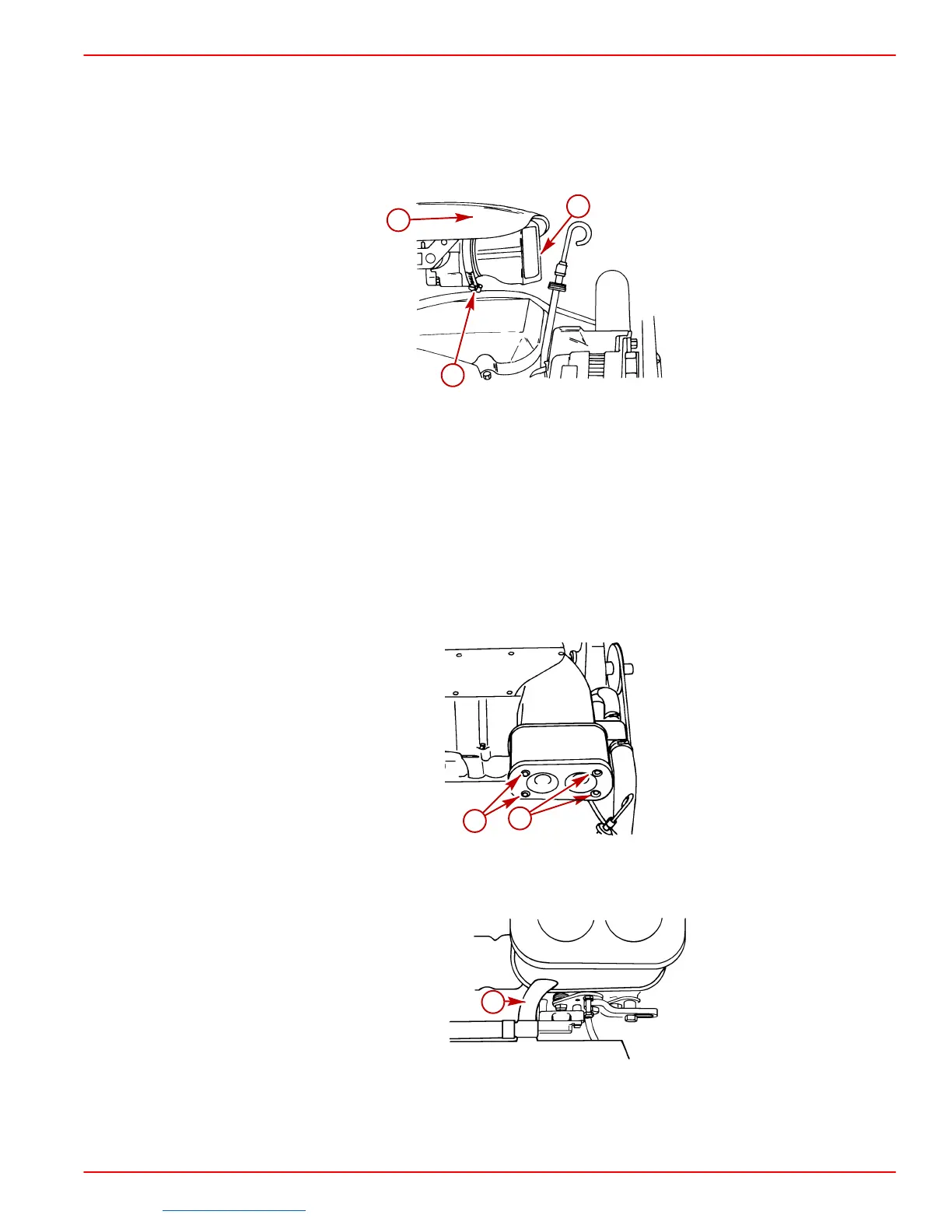

Plastic Front Mounted Flame Arrestor

1. Remove starboard side engine cover.

2. Loosen clamp.

3. Remove flame arrestor.

75447

a-Cover

b-Clamp

c-Flame Arrestor

4. Clean flame arrestor in solvent. Blow dry with compressed air.

5. Reinstall flame arrestor. Tighten clamp securely.

6. Reinstall engine cover.

Metal Side Mounted Flame Arrestor

1. Remove locknuts.

71481

a-Locknuts

2. Remove crankcase ventilation hose.

71764

a-Crankcase Vent Hose
