454 CID (7.4L) / 502 CID (8.2L) SERVICE MANUAL NUMBER 23

Page 3A-20

90-861326--1 MARCH 1999

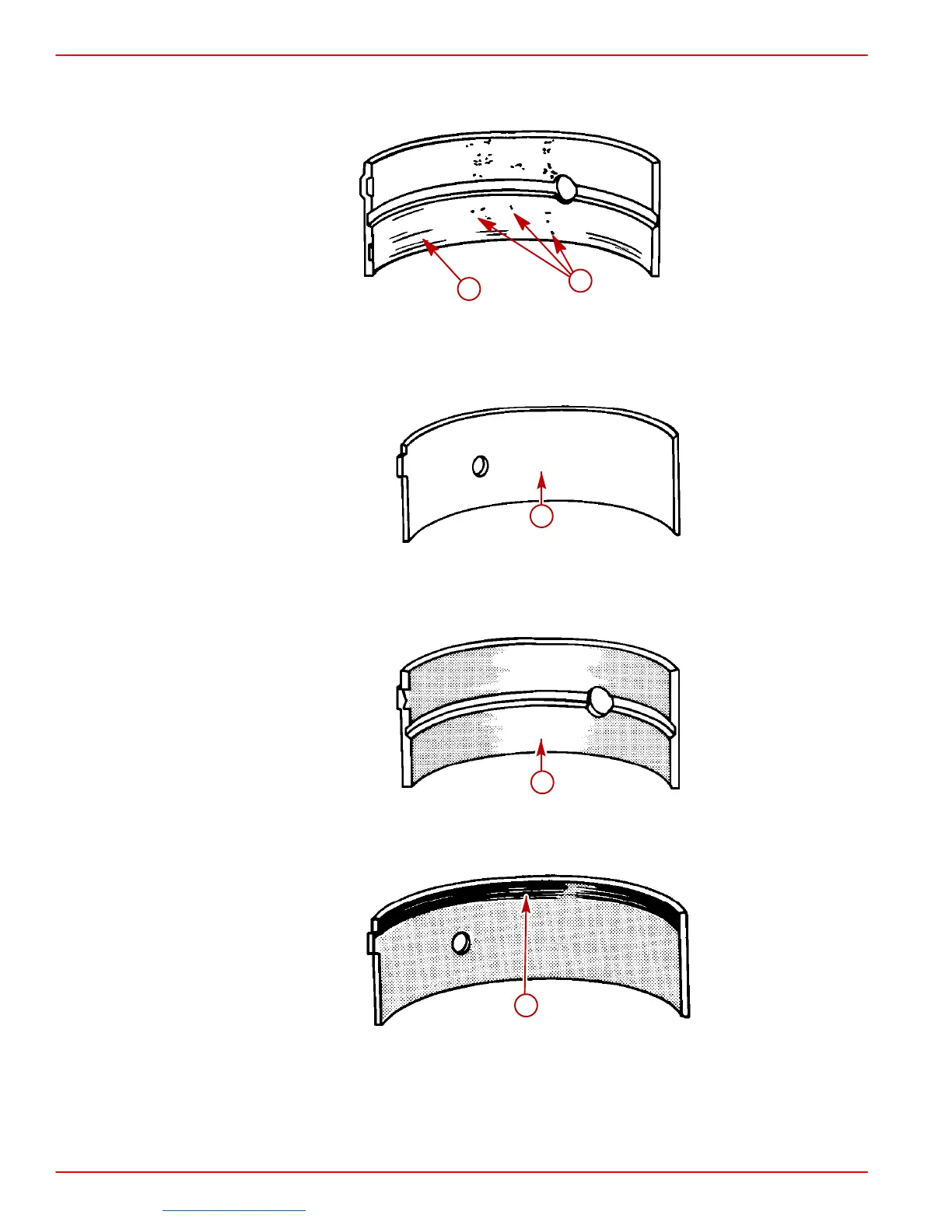

Bearing Failures

70436

Scratched By Dirt

a-Scratches

b-Dirt Imbedded In Bearing Material

70436

Tapered Journal

a-Overlay Gone From Entire Surface

70436

Lack Of Oil

a-Overlay Worn Off

70436

Radius Ride

a-Worn Area
