MIE MODELS - VELVET DRIVE TRANSMISSION SERVICE MANUAL NUMBER 23
Page 2C-10 90-861326--1 MARCH 1999

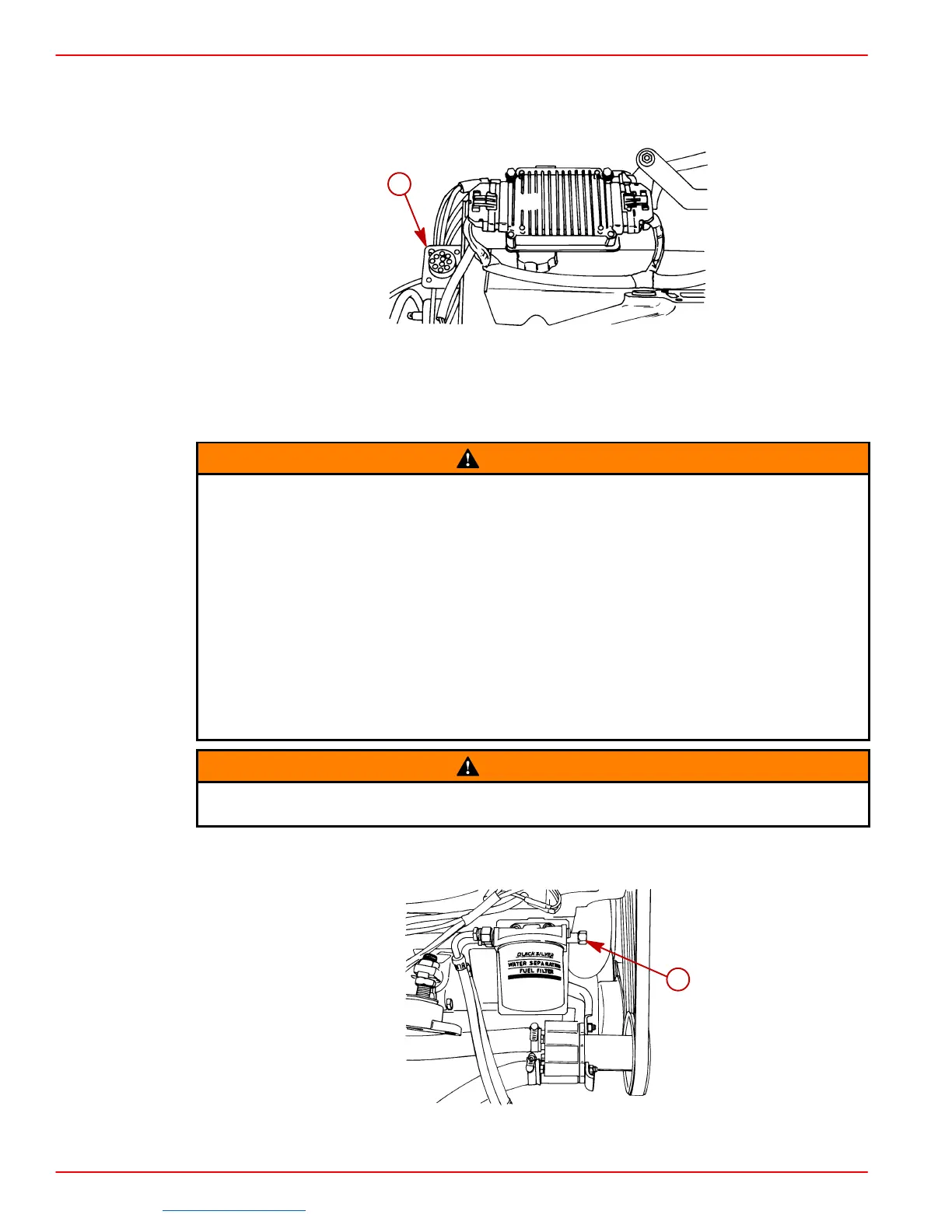

Electrical Connections
1. Connect instrument harness to engine harness with hose clamp. Tighten clamp
securely.
75441
a
7.4L MPI Shown
a-Instrumentation Wiring Harness Plug
Fuel Supply Connections
WARNING
Be careful when working on fuel system. Gasoline is extremely flammable and
highly explosive under certain conditions. Do not smoke or allow spark or open
flame in area. Wipe up any spilled fuel immediately.
• Apply #592 Loctite Pipe Sealant with Teflon to threads of brass fitting or plug.
DO NOT USE TEFLON TAPE.
• Thread brass fitting or plug into fuel pump or fuel filter base until finger tight.
• Tighten fitting or plug an additional 1-3/4 to 2-1/4 turns using a wrench. DO NOT
OVERTIGHTEN.
• Install fuel line. To prevent overtightening, hold brass fitting with suitable
wrench and tighten fuel line connectors securely.
• Check for fuel leaks.
WARNING
Avoid gasoline fire or explosion. Improper installation of brass fittings or plugs into
fuel pump or fuel filter base can crack casting and/or cause a fuel leak.
1. Connect fuel line from fuel tank(s) to engine. Ensure connections are secure. Check for
leaks.
75533
a
a-Fuel Inlet Hose Connects Here
