COLLECTORS

SERVICE MANUAL NUMBER 23

90-861326--1 MARCH 1999 Page 7D-3

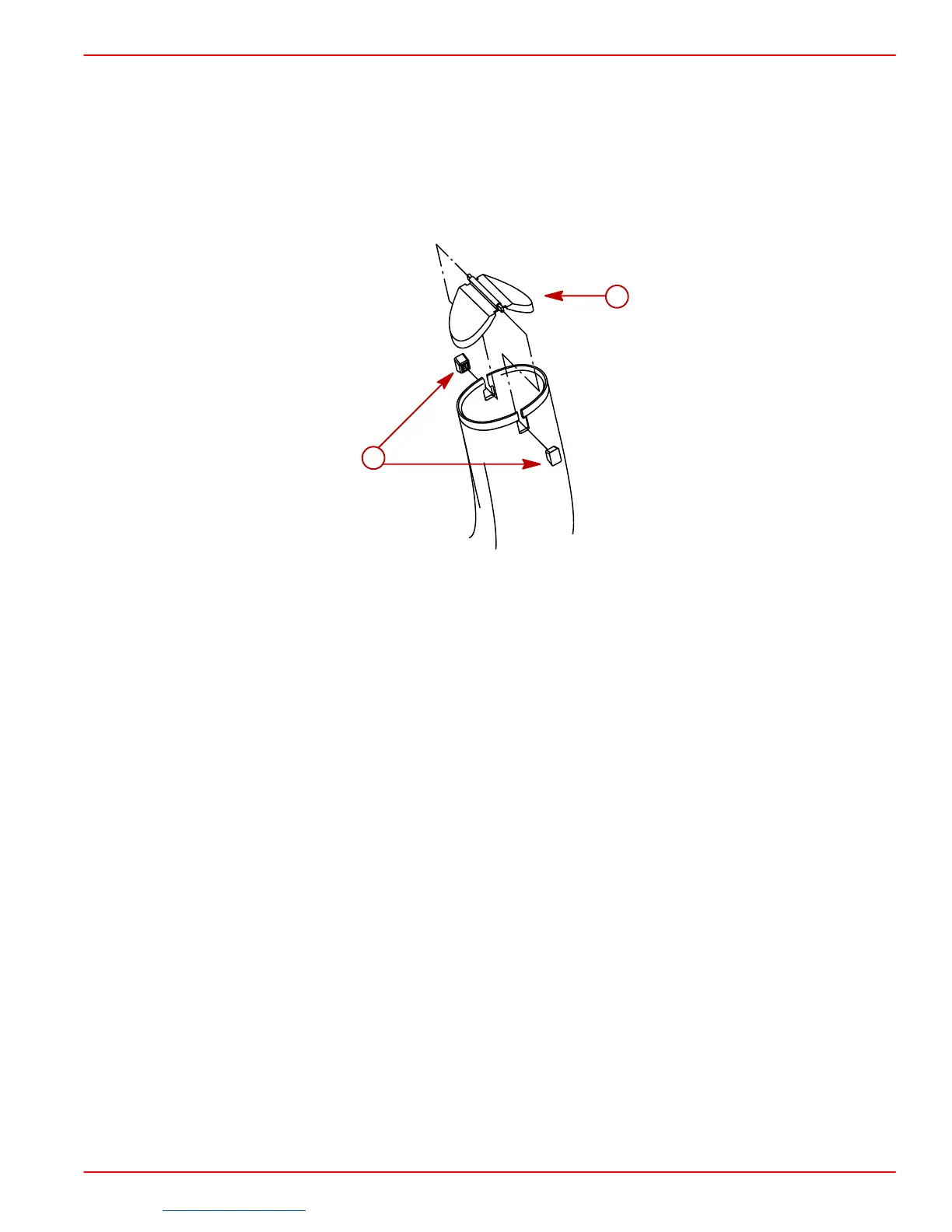

Shutter Replacement

IMPORTANT: Engine does not have to be removed to change shutters.

1. Loosen clamps and remove exhaust pipe, elbow and exhaust hose.

2. Replace water shutter as shown.

3. Reinstall pipe, elbow and hose. Tighten clamps securely.

75760

a-Exhaust Flapper

b-Rubber Grommets
