STARTING SYSTEM SERVICE MANUAL NUMBER 23

Page 4A-30 90-861326--1 MARCH 1999

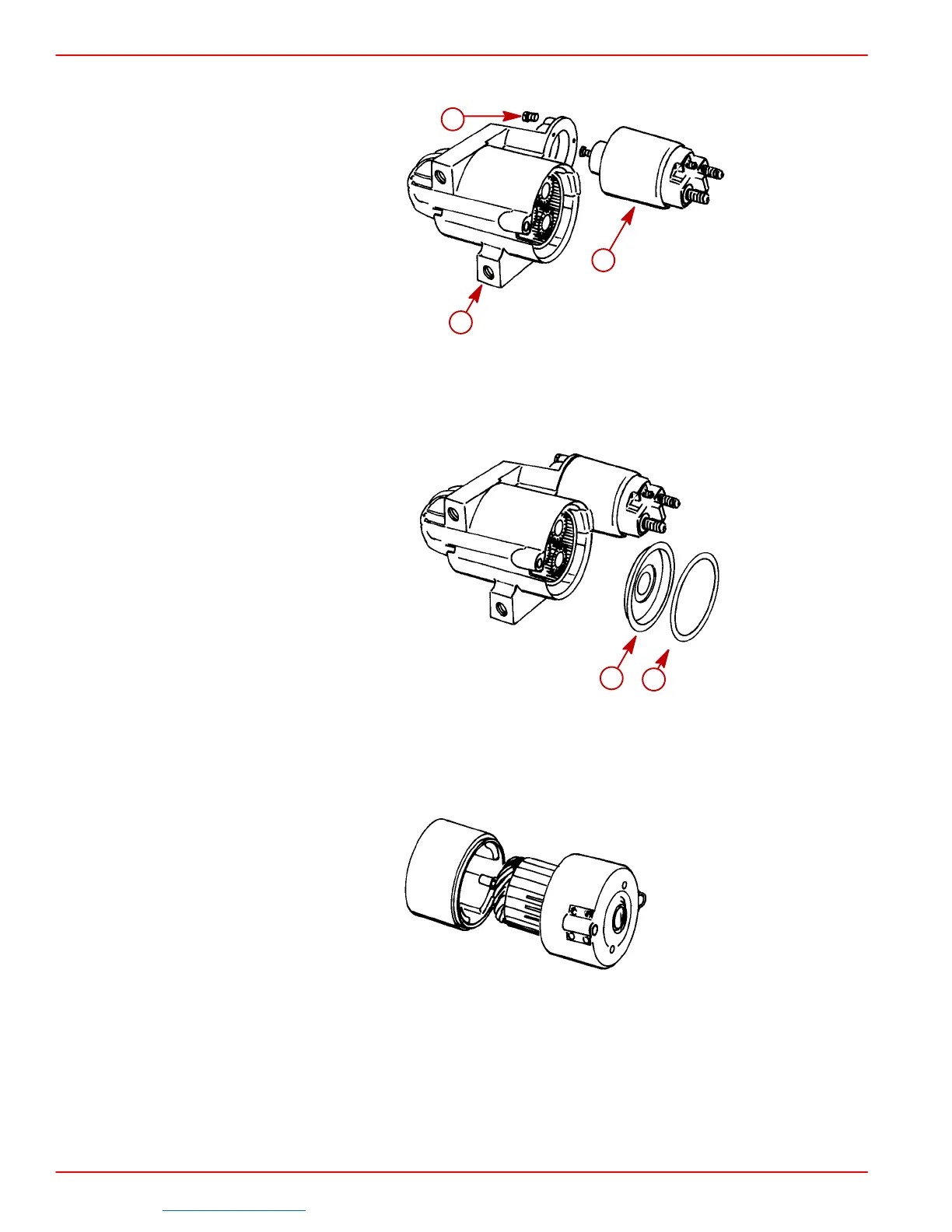

6. Place solenoid in drive housing and tighten screws.

74036

a-Drive Housing

b-Solenoid

c-Screw (3)

7. Install shield and washer in drive housing.

74038

a-Shield

b-Washer

8. Install field frame over armature. Align slot in end cap and field frame for proper position-

ing of rubber grommet.
