STARTING SYSTEM

SERVICE MANUAL NUMBER 23

90-861326--1 MARCH 1999 Page 4A-29

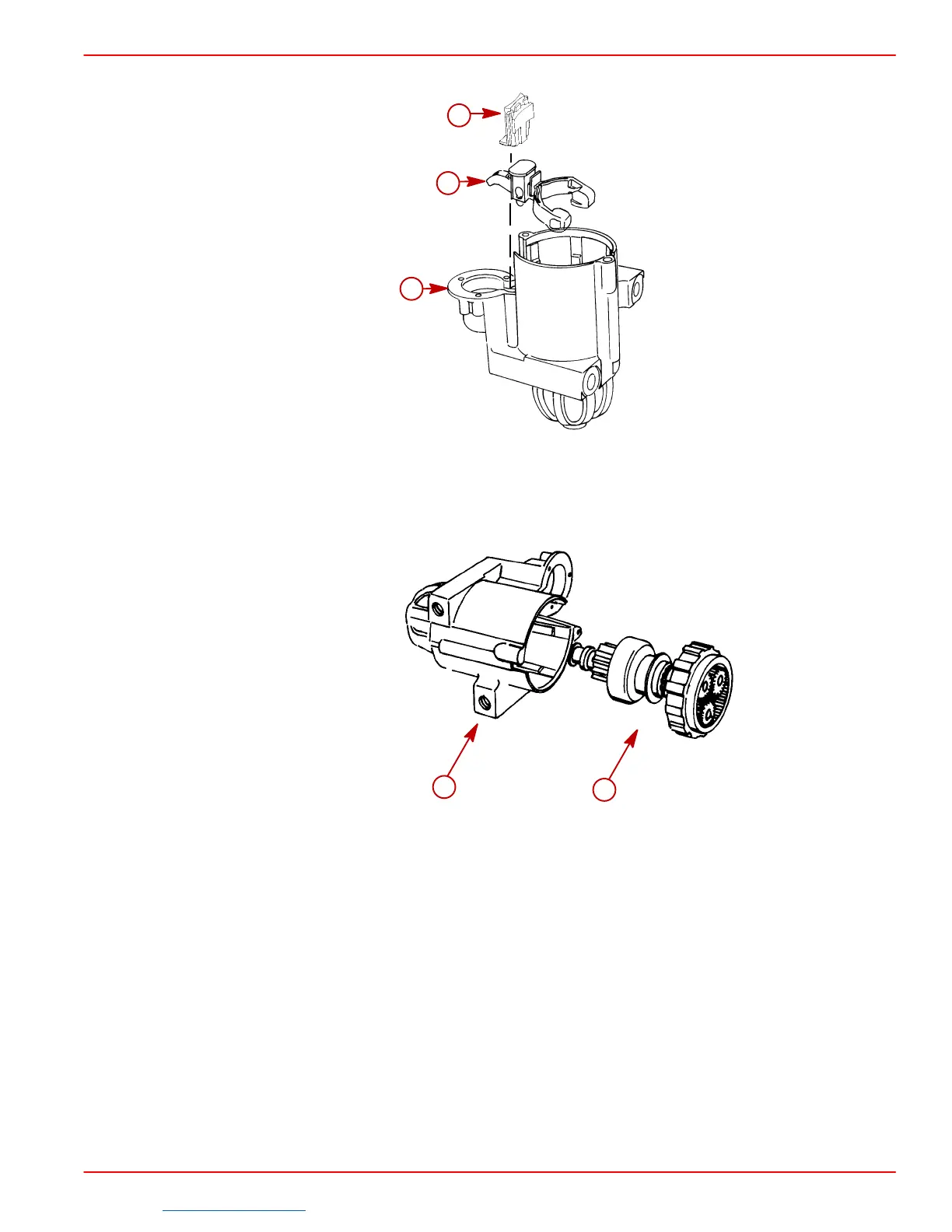

4. Install solenoid arm and rubber grommet in the drive housing.

74018

74048

74105

a-Rubber Grommet

b-Solenoid

c-Drive Housing

5. Install drive and associated parts in drive housing.

74035

a-Drive Housing

b-Drive
