MIE MODELS - VELVET DRIVE TRANSMISSION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 2C-5
d. Each mount base is downward. Tighten clamping bolts and nuts slightly to prevent
moving in or out. Mounts must be free to pivot when installing engine.
72638
72594
c
e
a
b
g
f
a
b
c
d
e
f
g

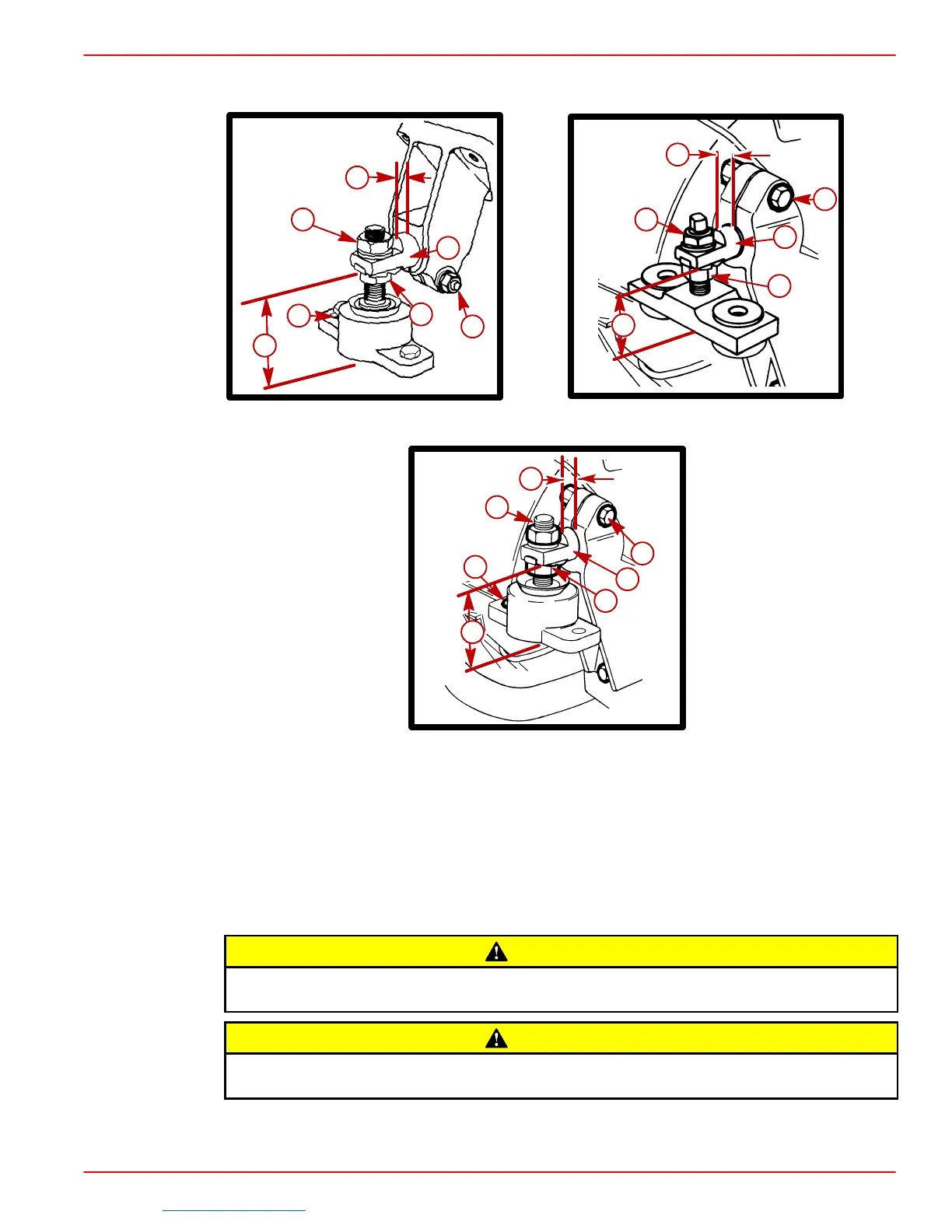

Front Mount - All Engine Rear Mount - Typical
71182
a
b
c
d
e
f
g
Rear Mount - Typical
a-Locking Nut
b-Adjusting Nut
c-Trunnion Clamp Bolt And Nut, With Lockwasher
d-Slot Forward
e-3/8 In. ± 1/16 In. (10 mm ± 2 mm)
f-2-5/8 In. ± 1/16 In. (67 mm ± 2 mm)
g-Mount Trunnion
CAUTION
Center lifting eye (located on top of thermostat housing) is used for engine align-
ment only. DO NOT use to lift entire engine.
CAUTION
DO NOT allow lifting sling to hook or compress engine components or damage to
them will occur.
3. Attach a suitable sling to lifting eyes on engine. Refer to “Removal” section for
location of lifting eyes.
