MIE MODELS - HURTH TRANSMISSION SERVICE MANUAL NUMBER 23

Page 2D-16 90-861326--1 MARCH 1999

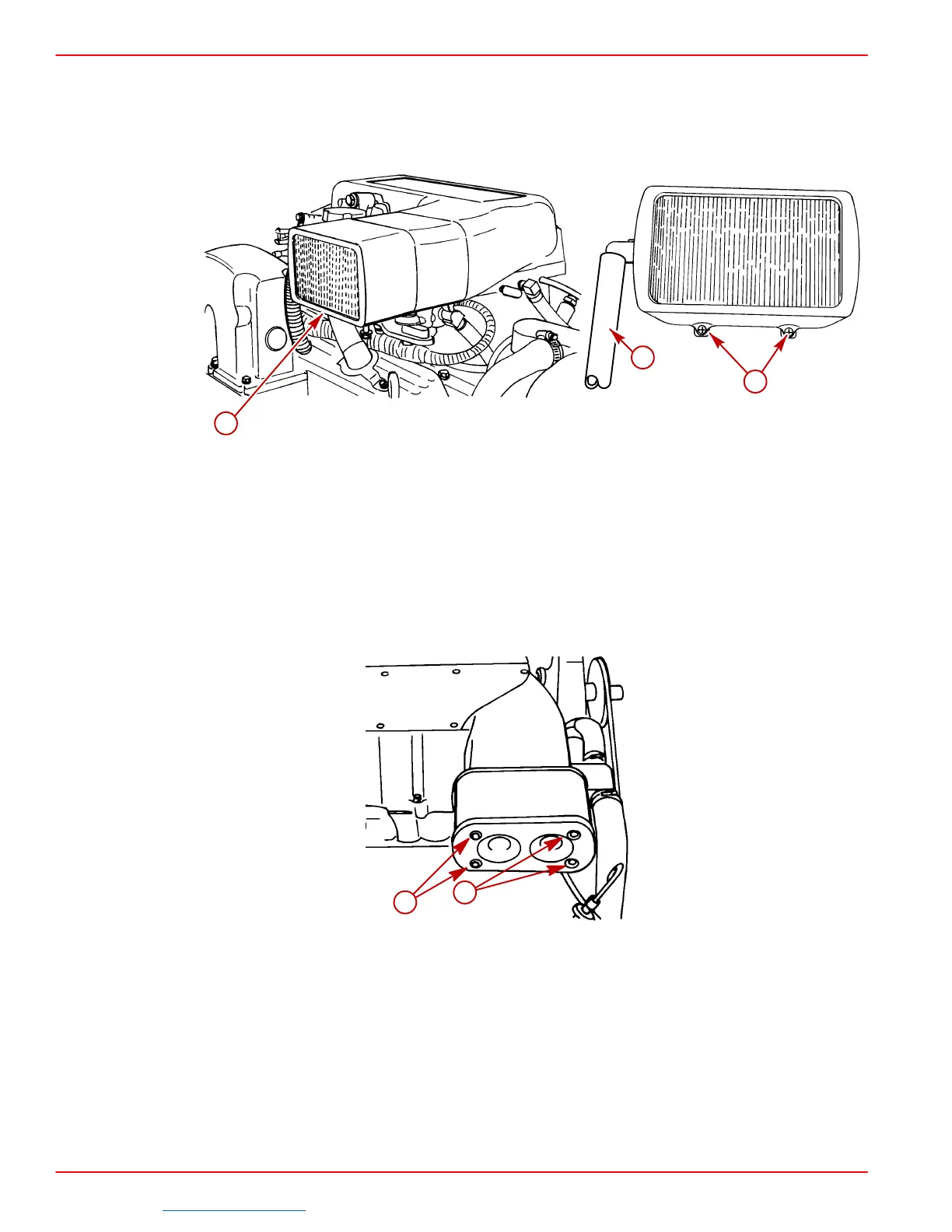

8. On 8.2L MPI Model: Install flame arrestor as follows:

a. Install flame arrestor.

b. Connect crankcase ventilation hose.

c. Install flame arrestor screws and tighten securely.

75113

75142

8.2L MPI Shown

a-Flame Arrestor

b-Screws

c-Crankcase Ventilation Hose

9. On 454 Mag MPI Horizon Model: Install flame arrestor as follows:

a. Install flame arrestor.

b. Install locknuts.

71481

a-Locknuts
