IGNITION SYSTEM

SERVICE MANUAL NUMBER 23

90-861326--1 MARCH 1999 Page 4B-9

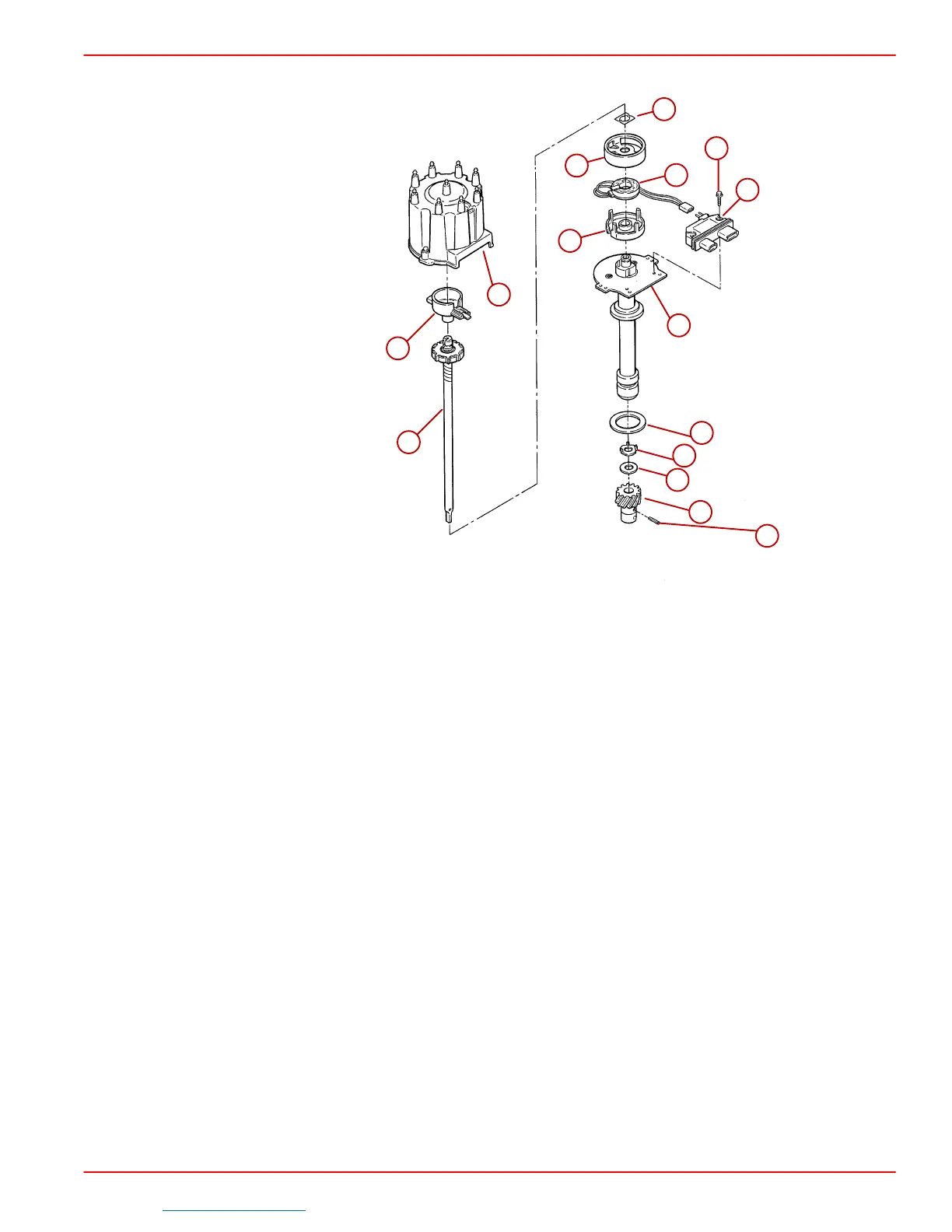

DISASSEMBLY

72411

a-Cap

b-Rotor

c-Shaft Assembly

d-Retainer

e-Shield

f-Pickup Coil

g-Pole Piece

h-Screw

i-Module

j-Housing

k-Gasket

l-Tang Washer

m-Washer

n-Gear

o-Pin

NOTE: Whenever disassembling distributor, the retainer (d) must be replaced. DO NOT

attempt to use old retainer.
