CHARGING SYSTEM
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 4C-25
4. Slide fan spacer onto rotor shaft. Install fan, pulley, lockwasher and nut on shaft. Clamp
pulley in a vise, using protective jaws or an old oversize V-belt to protect pulley, and
torque nut to specifications. Tighten vise only enough to allow tightening of nut, as
excessive tightening may distort pulley.
5. Assemble stator to rectifier by soldering the three leads to the three rectifier terminals.

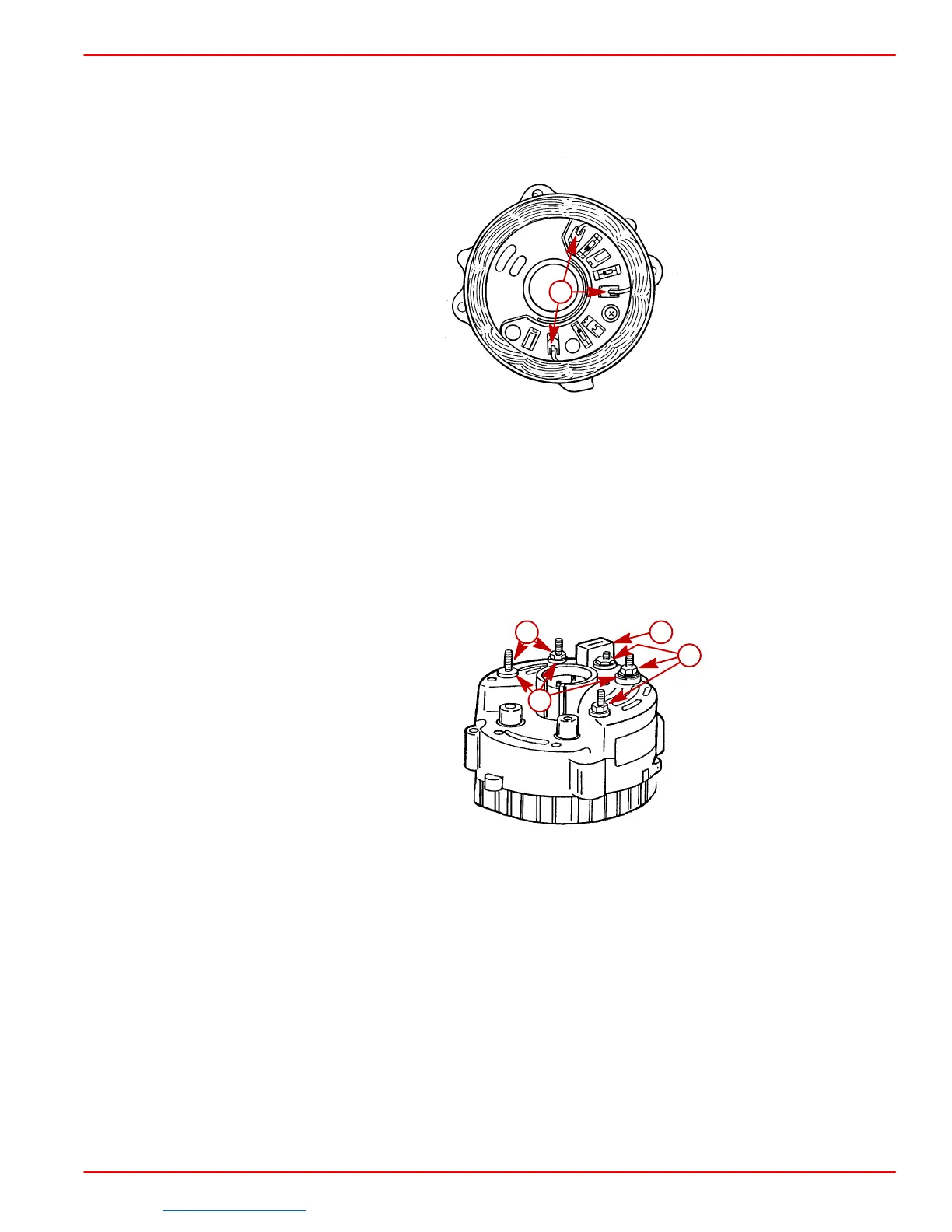

72826
a
a-Stator Lead Connections
NOTE: Be sure to connect leads to their original positions.
6. Install assembled stator and rectifier assembly into rear end frame, aligning scribe
marks on each (scribed during disassembly), and install Phillips head screw and washer
to retain.
IMPORTANT: The insulating washers MUST BE installed as shown or damage to the
alternator will result.
7. Position stator down with rear end frame up and reinstall insulators, nuts and condenser.
72561
b
a
c
b
a-Insulators (3)
b-Nuts (5) One Removed
c-Condenser
