WIRING DIAGRAMS
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 4E-15

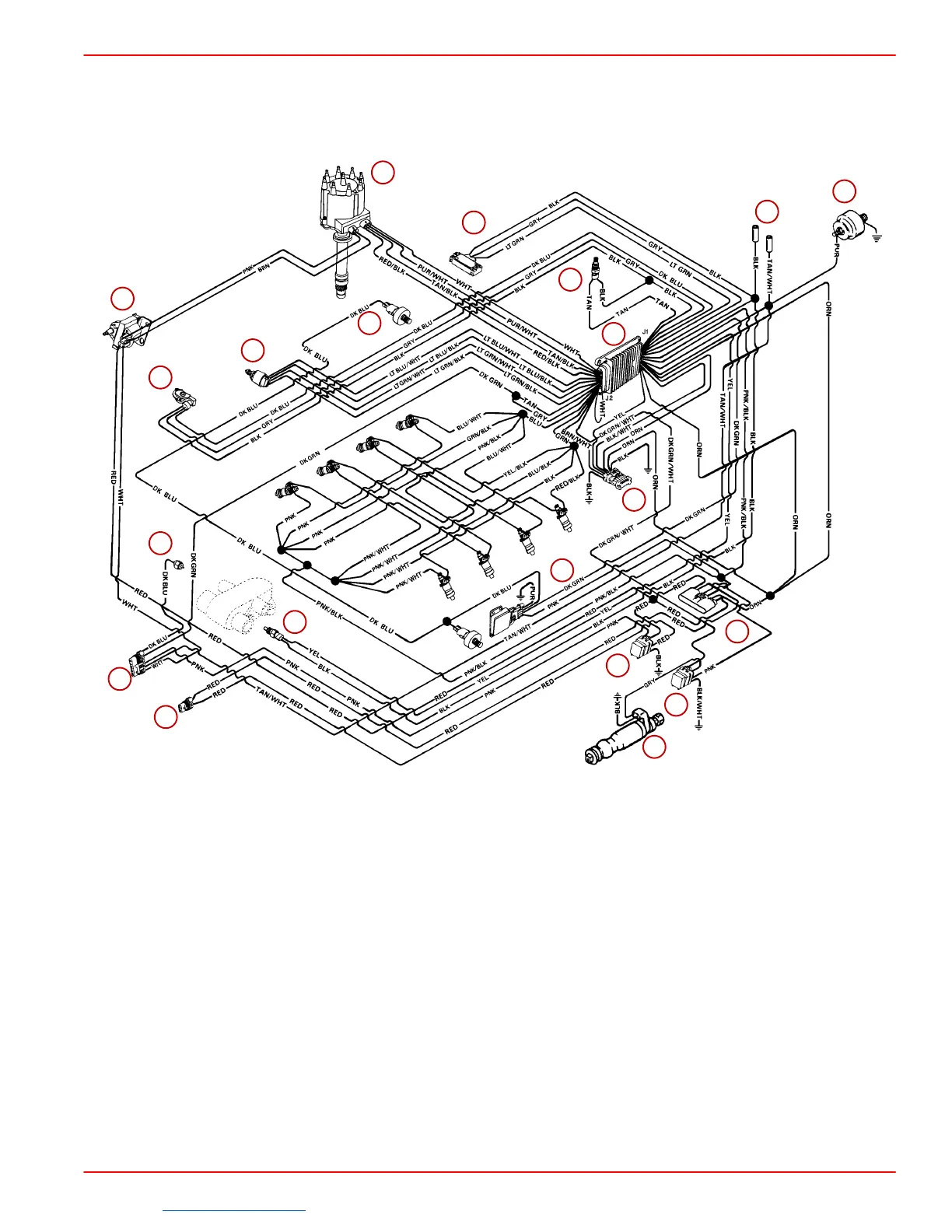

MEFI 2 MIE (Inboard) 7.4L MPI Model
NOTE: All BLACK wires with a ground symbol are interconnected within the EFI system
harness.
75682
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1-Fuel Pump
2-Distributor
3-Coil
4-Electronic Spark Control Module
5-Data Link Connector (DLC)
6-Manifold Absolute Pressure (MAP) Sensor
7-Knock Sensor
8-Idle Air Control (IAC)
9-Throttle Position (TP) Sensor
10 - Engine Coolant Temperature (ECT) Sensor
11 - Electronic Control Module (ECM)
12 - Fuel Pump Relay
13 - Ignition/System Relay
14 - Fuse (15 Amp) Fuel Pump Fuse (15 Amp)
ECM / DLC / Battery Fuse (10 Amp) ECM /
Injector / Ignition / Knock Module
15 - Harness Connector To Starting/Charging
Harness
16 - Positive (+) Power Wire To Engine Circuit
Breaker
17 - Intake Air Temperature (IAT) Sensor
18 - Not Used
19 - Water Temperature Sender (Gauge)
20 - Oil Pressure - Audio Warning Switch
