GENERAL SYSTEM DIAGNOSTICS

SERVICE MANUAL NUMBER 23

90-861326--1 MARCH 1999 Page 5E-47

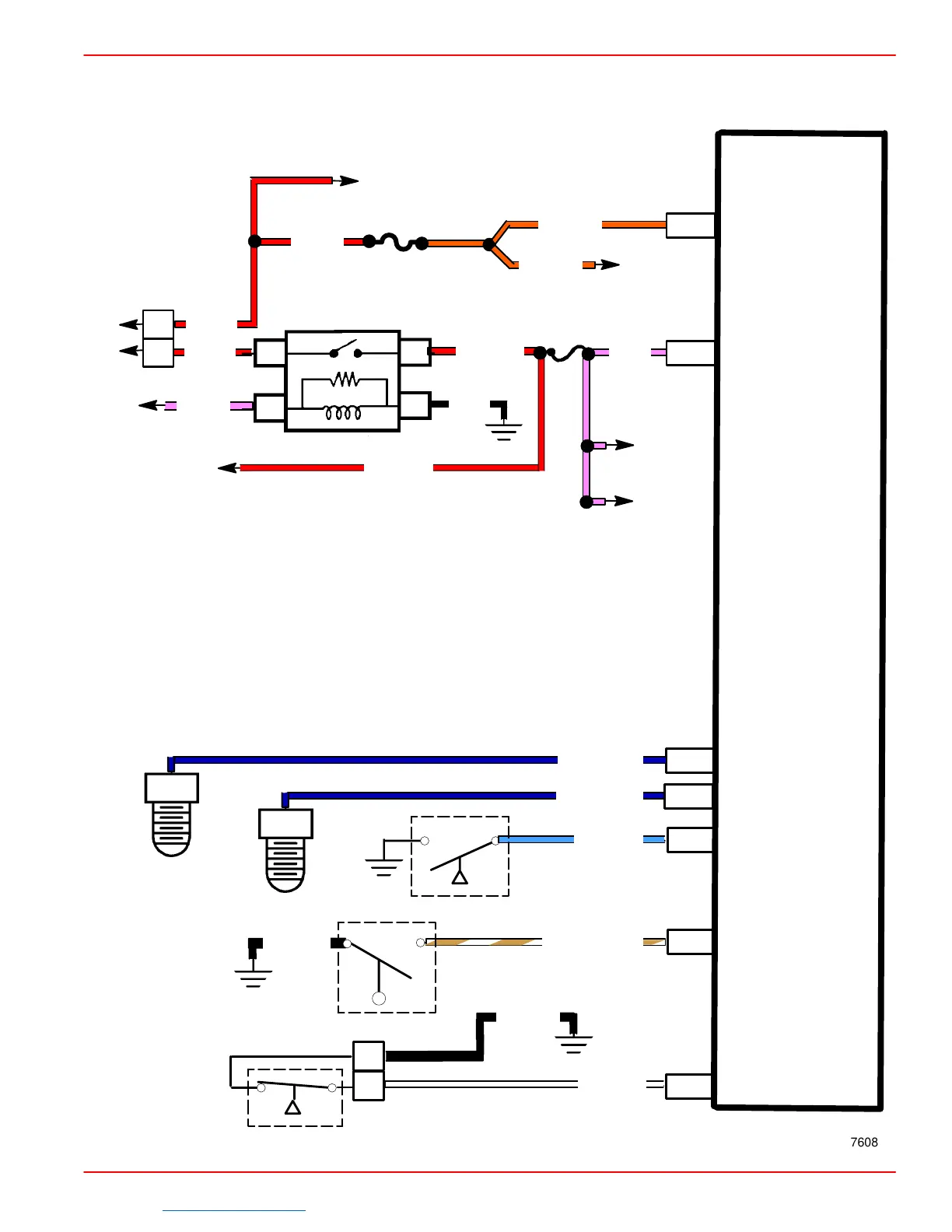

MEFI 3 - ECM Wiring PAGE 3 of 4

76081

ECM

J2-7

OIL PRESSURE

SWITCH

KNOCK SENSOR

2 (L29 ONLY)

J1-14

KNOCK

SENSOR 2 (L29 ONLY)

496 DK BLU

GEAR LUBE BOTTLE

(MCM ONLY)

J2-24

906 TAN/WHT

J2-20

LOAD ANTICIPATION

SIGNAL

150 BLK

923 WHT

KNOCK

SENSOR 1

J1-30

496 DK BLU

KNOCK SENSOR 1

114 BLU

150 BLK

TRANSMISSION NEUTRAL

SAFETY SWITCH (MIE ONLY)

ECM BAT FUSE/

DLC 15A

SYSTEM/IGNITION RELAY

TO DLC

CONNECTOR

IGN / INJ FUSE

INJECTORS

902 RED

2 RED

B+

IGNITION

BATTERY

FEED

150

BLK

902 RED

2 RED

TO FUEL PUMP RELAY

FUSE

3 PNK

439

PNK

J2-1

440 0RN

J2-32

TO IGN COIL

TERM INAL

T0 FUEL PUMP

RELAY

IGNITION

GEAR LUBE BOTTLE

SWITCH (MCM ONLY)
