VELVET DRIVE IN-LINE TRANSMISSION SERVICE MANUAL NUMBER 23

Page 8A-6 90-861326--1 MARCH 1999

Changing Transmission Fluid

Draining Transmission

1. Clean area around cooler hose shown and proceed as follows:

a. Disconnect hose from elbow fitting.

b. Remove elbow fitting from bushing.

c. Drain oil from transmission, cooler and cooler hoses into a suitable container.

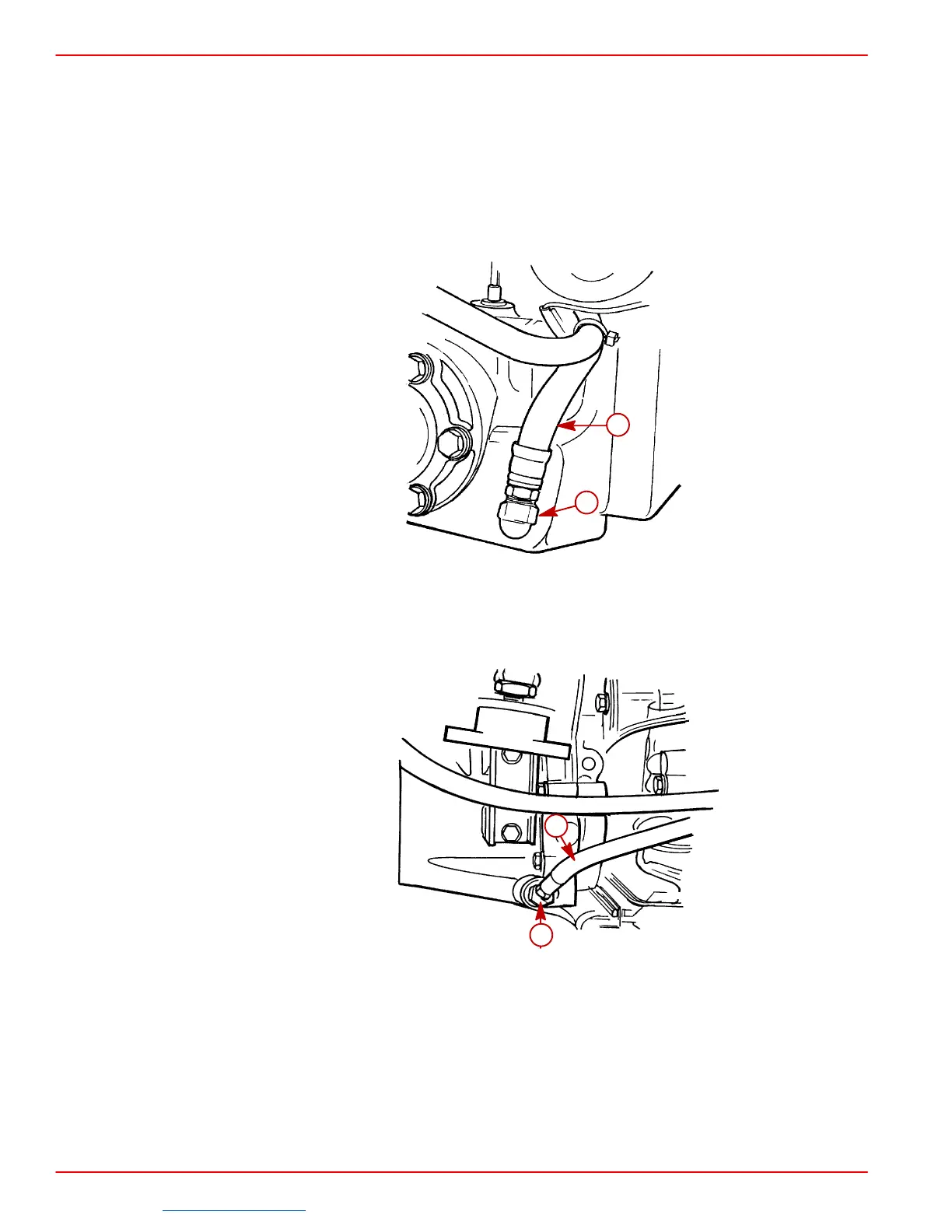

72840

Transmission With 1:1 Ratio

a-Hose

b-Elbow Fitting

72841

Transmission with Reduction Ratios

a-Hose

b-Bushing

2. Remove bushing, spring and strainer tube from transmission case. Allow transmission

to drain completely.
