VELVET DRIVE IN-LINE TRANSMISSION SERVICE MANUAL NUMBER 23
Page 8A-10 90-861326--1 MARCH 1999
22. Connect and adjust shift cable(s) as outlined in SECTION 2C, “MIE Models - Velvet
Drive Transmissions”.
IMPORTANT: Velvet Drive Transmission Warranty is jeopardized if the shift lever pop-
pet ball or spring is permanently removed, if the shift lever is repositioned or changed
in any manner, or if remote control and shift cable do not position shift lever exactly
as shown.
72601
F
-
N
-
R
F
R
a
b
c
d

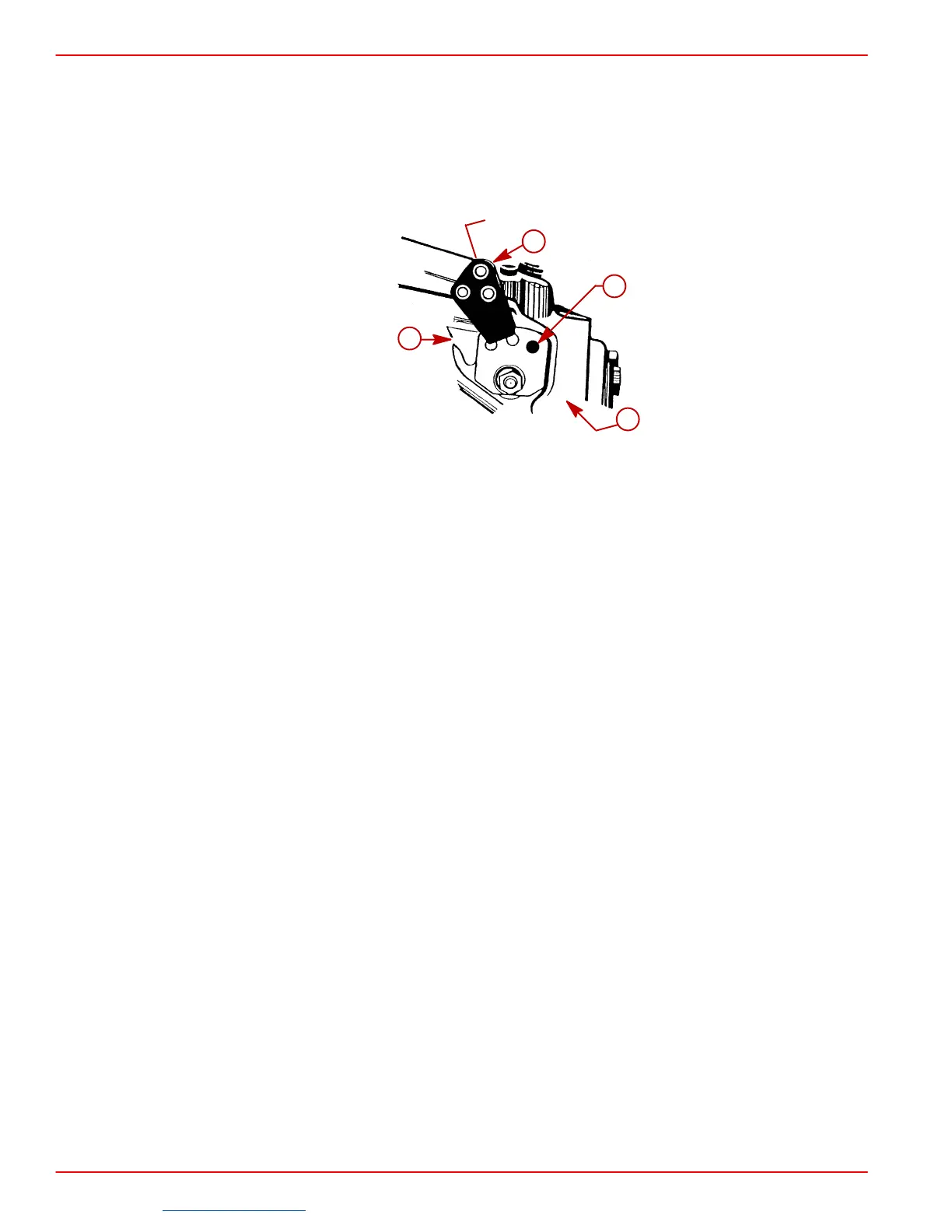

a-Transmission Shift Lever
b-Shift Lever Must Be Over This Letter when Propelling Boat FORWARD
c-Shift Lever Must Be Over This Letter when Propelling Boat in REVERSE
d-Poppet Ball Must Be Centered in Detent Hole for Each F-N-R Position
(Forward Gear Shown)
23. Refer to SECTION 2C, “MIE Models - Velvet Drive Transmissions” and check engine
final alignment as outlined.
24. After engine has been properly aligned, connect propeller shaft coupler to transmission
output flange. Attach couplers together with bolts, lockwashers and nuts. Torque to 50
lb. ft. (68 N·m).
25. Refill transmission with specified fluid. Refer to “Filling Transmission”.
26. Check for leaks and check fluid level after first engine start-up.
