HURTH V-DRIVE TRANSMISSION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 8D-5
1. On bracket with two anchor location holes: Be certain anchor stud is installed in the
hole marked “630.”
WARNING
Avoid serious personal injury or property damage caused by improper shifting.
Anchor stud for shift cable must be installed in the correct hole when using bracket
with two anchor location holes.
71020
71041
a
a
b
b
c
c

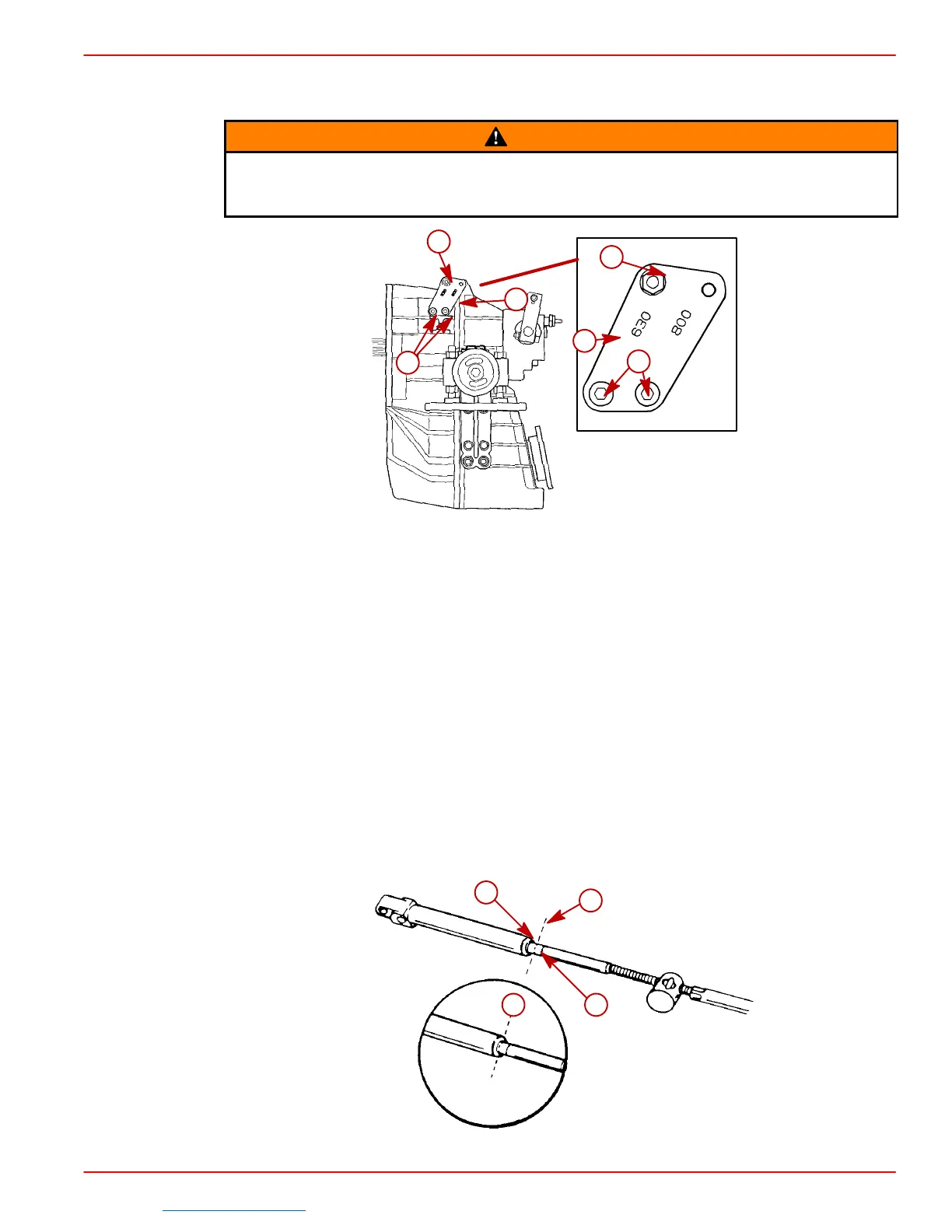

Shift Cable Bracket - Anchor Stud Position Shown for 630 Transmission
a-Shift Cable Bracket
b-Shift Cable Anchor Stud
c-Bracket To Transmission Fasteners
2. Place remote control shift lever and transmission shift lever in neutral position.
3. Remove nuts and washers from shift cable attaching studs.
4. Locate center of remote control and control shift cable play (backlash), as follows:
a. Check that remote control is in neutral position.
b. Push in on control cable end with enough pressure to remove play and mark position
(a) on tube.
c. Pull out on control cable end with enough effort to remove play and mark position
(b) on tube.
d. Measure distance between marks (a) and (b), and mark position (c), halfway
between marks (a) and (b).
22024
a
b
c
c
