HURTH V-DRIVE TRANSMISSION

SERVICE MANUAL NUMBER 23

90-861326--1 MARCH 1999 Page 8D-13

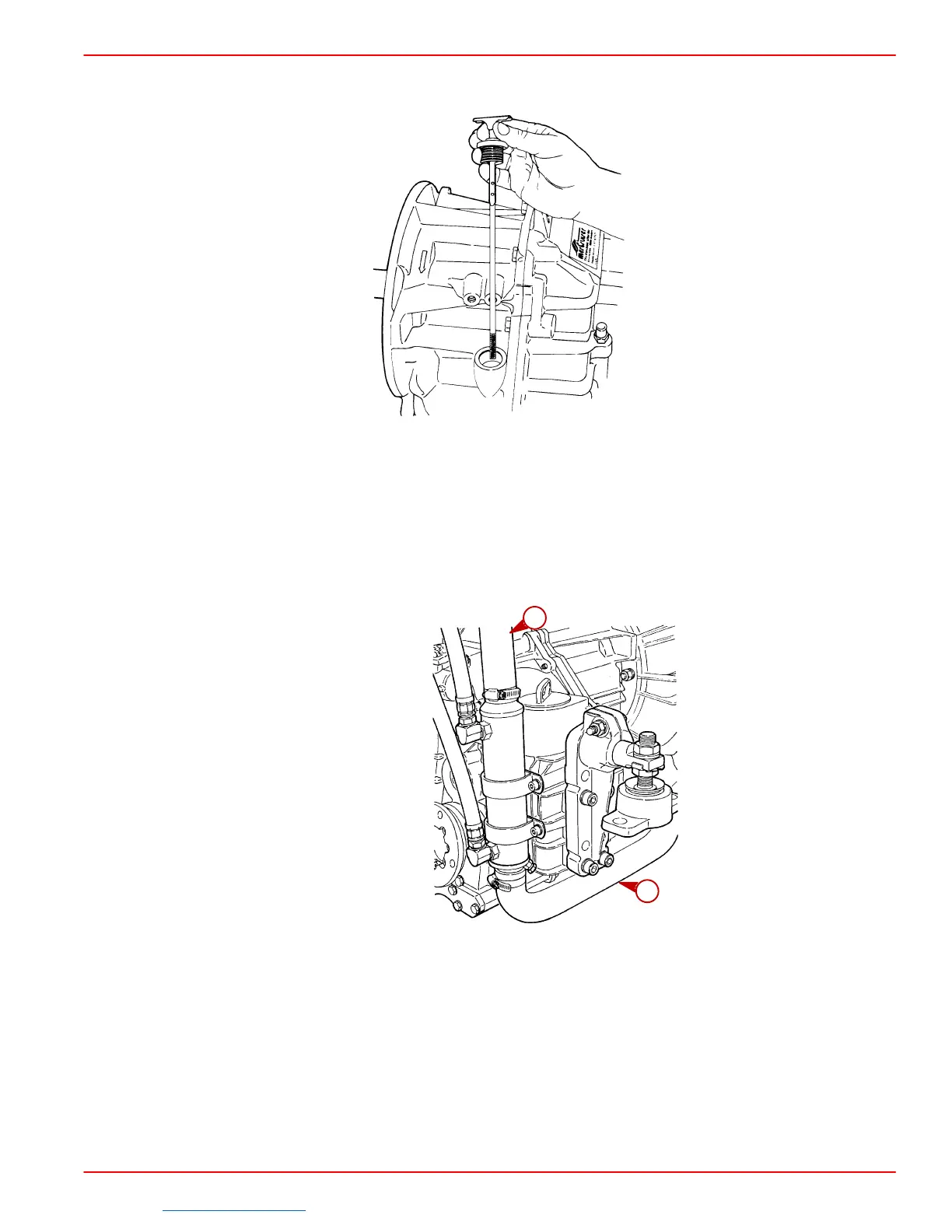

4. Stop engine and check fluid level. Fluid should be between min. and max. lines on dip-

stick.

27661

Typical Hurth Transmission Shown

Transmission Removal

1. Disconnect wires from neutral safety switch and audio warning temperature switch.

2. Disconnect seawater hoses from transmission fluid cooler.

72711

a-Seawater Hoses
