SYSTEM TACH & SPEED
3-4
SYSTEM TACH & SPEEDOMETER
4
3
2
1
5
Continued Next Page
Speedometer
0
10
20
30
40
50
60
70
80

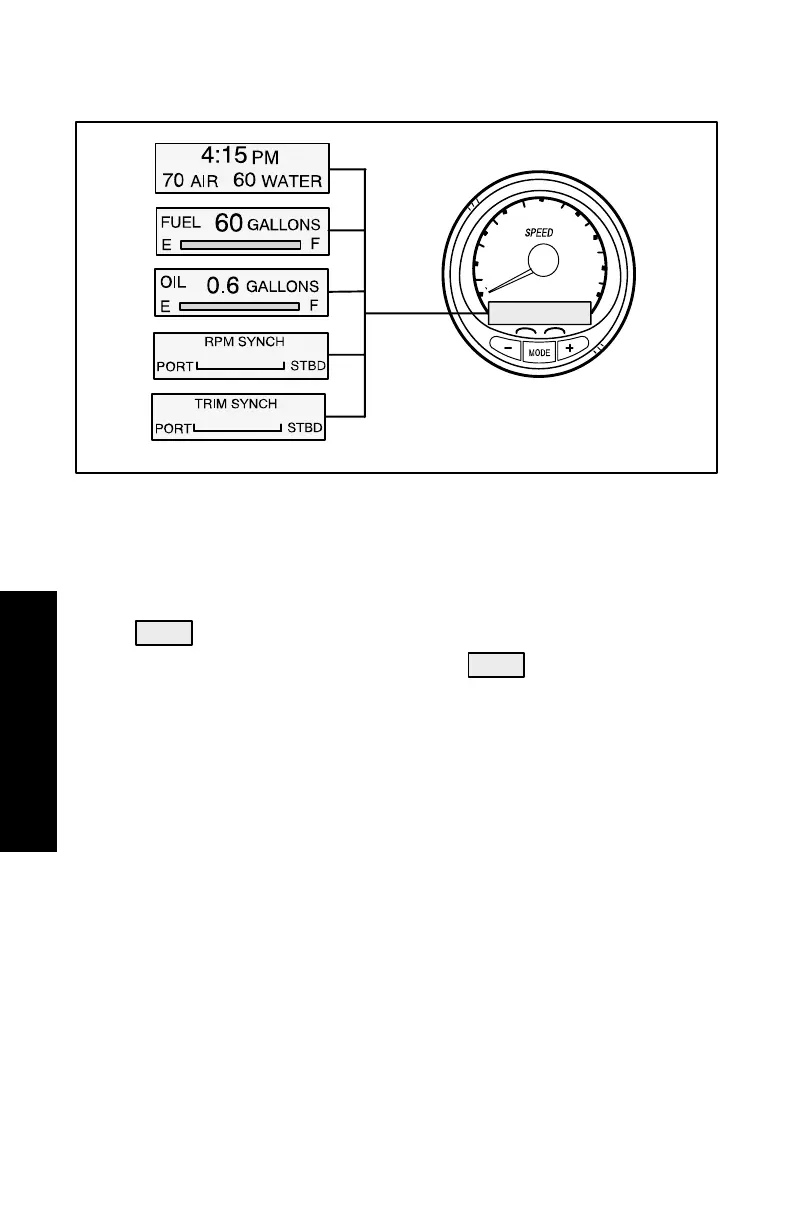

Speedometer Display Screens
NOT ALL SCREENS MAY APPLY TO YOUR ENGINE TYPE.
When the ignition is turned on, the speedometer will show the last
screen that was displayed before the ignition was turned off.
Press
MODE
to change display screens. You can revert back to the
previous screen by pressing and holding
MODE
for 2 seconds. This
will reverse the display rotation.
NOTE:Readings can be displayed in English (U.S.) or Metric. Refer
to Calibrations.
NOTE:Descriptions are not necessarily in order on the gauge. Order
changes depending on engine type.
1. Clock - Temp – Clock, air temperature and water temperature.
The air and water temperature sensors will have to be connected
to obtain display readings.
2. Fuel Level – Displays the amount of fuel remaining.
3. Oil Level – Displays the amount of engine oil remaining, or wa-
ter/waste tank level (if attached).
4. RPM Synchronizer – Dual Engines Only – Monitors the revolu-
tions of both engines.
5. Trim Synchronizer – Dual Engines Only – Displays the trim posi-
tion of both engines. Simplifies keeping trim levels equal.
To Next Page
