SMART TACH & SPEED
4-10
SMART TACH & SPEEDOMETER
1
3
4
5
2
7
8
6
0
1
2
3
4
5
6
7

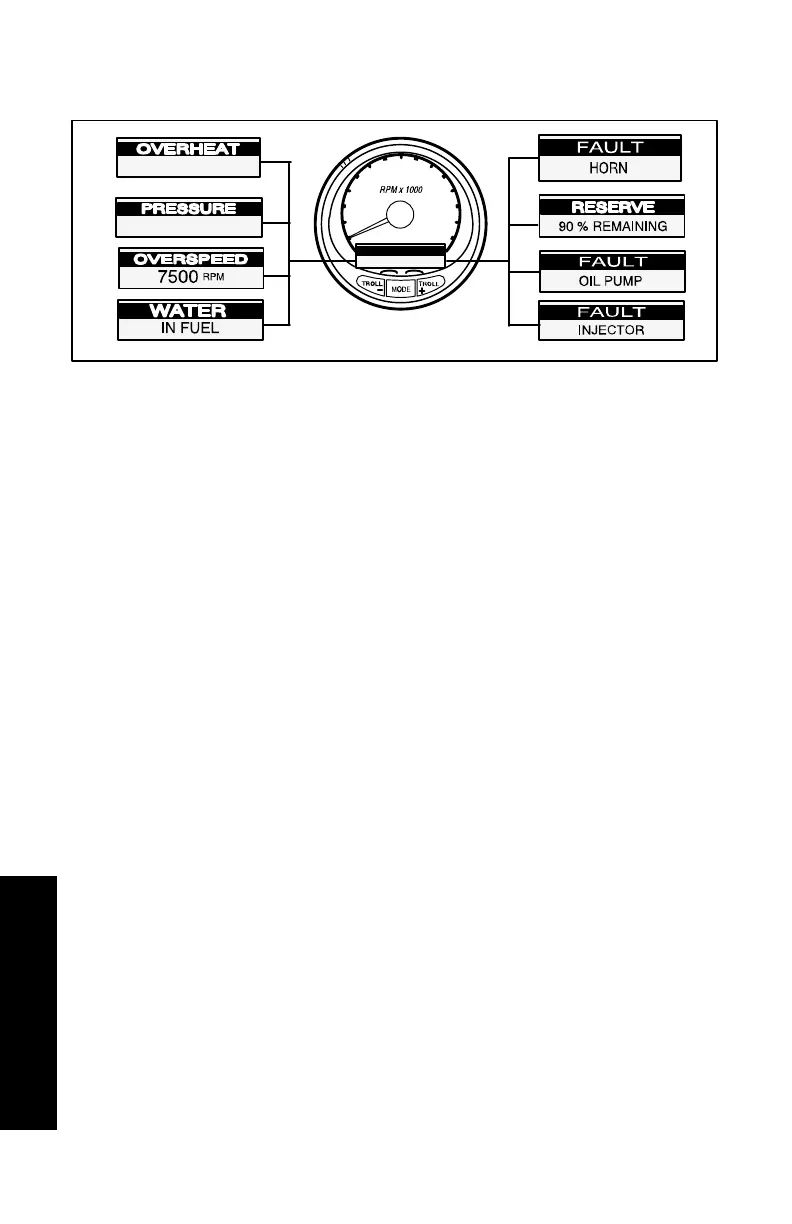

Warning Display Screens
IMPORTANT: Refer to the Engine Operation, Maintenance
Manual for further explanation of the problem and the correct
action to take.
1. OVERHEAT – The engine has overheated.
2. PRESSURE – There is insufficient water pressure in the cooling
system.
3. OVERSPEED – Engine speed exceeded the maximum allowable
RPM.
4. WATER IN FUEL – Water in the water-separating fuel filter
reached the full level.
5. FAULT-HORN – Warning horn is not functioning correctly.
6. RESERVE OIL LOW – 2 STROKE OUTBOARD ONlY – Oil level
is critically low in the engine mounted oil reservoir tank.
7. FAULT-OIL PUMP – Oil pump has stopped functioning electrically.
No lubricating oil is being supplied to the engine.
8. FAULT-INJECTOR – One or more of the fuel injectors have stop
functioning electrically.
