2. Press the arrow button to highlight the ECO icon and press the enter button. The user‑selected data area will display the
ECO icon element with a short description on how to achieve the best fuel economy.
NOTE: When ECO mode is active, system footer data field 4 location will default to displaying trim values, if another data
value is currently being displayed. Trim values will be displayed in the bottom right corner of the screen if another data
value is currently being displayed.

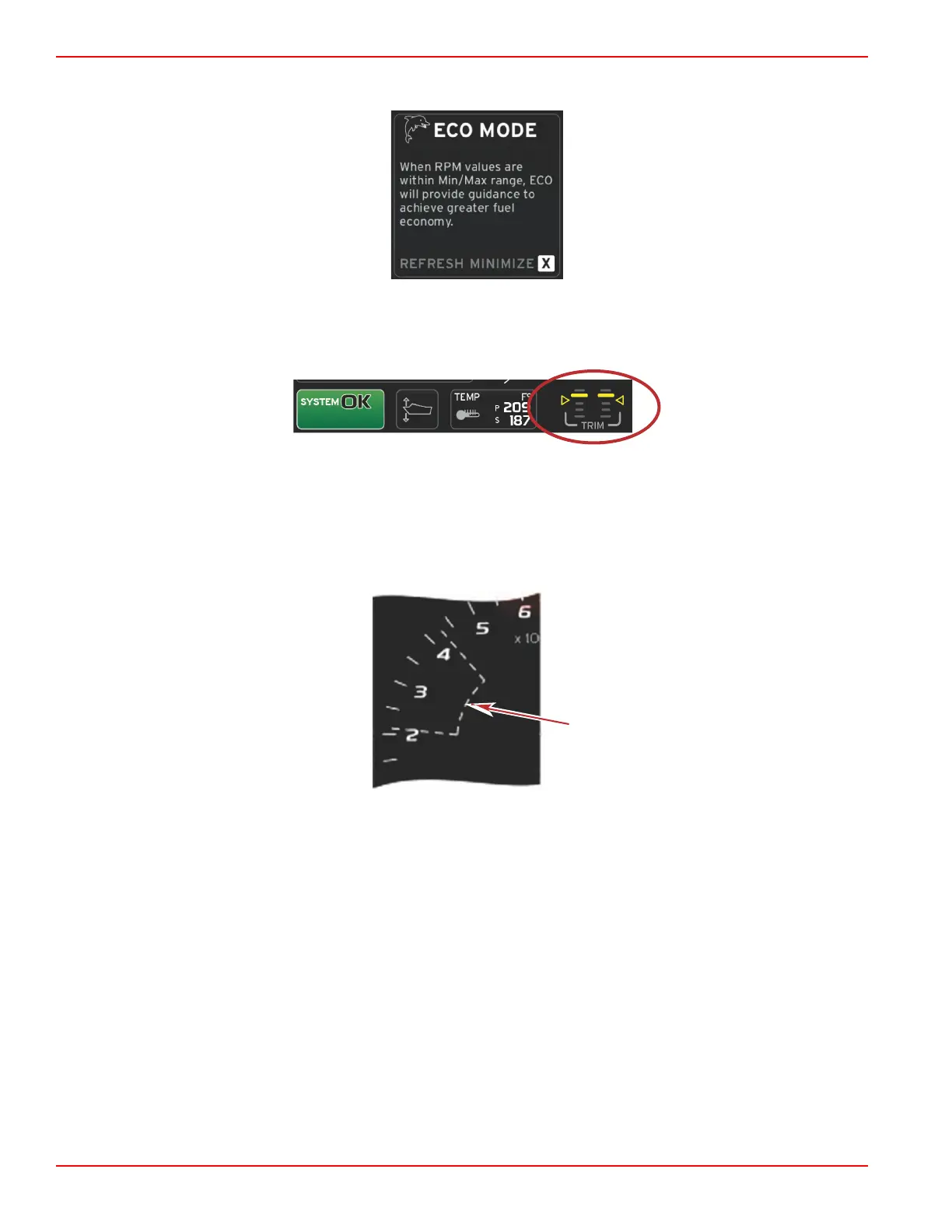

ECO mode active trim values
ECO Minimum and Maximum Values
When ECO mode is active and the engines are in forward gear, the minimum and maximum value lines will appear in the RPM
sweep. These lines display the active optimized range that is to be calculated. This window can be adjusted in the Settings
menu.
ECO RPM and Trim Targets
When the RPM values reach the minimum value range, RPM and trim targets will appear. A colored line will span the RPM
sweep with colored targets to inform the user where the target values are and will change color when they have achieved
optimization.
