Section 4 - Setup and Calibrations
90-8M0120668 eng MARCH 2016 Page 49
Vessel

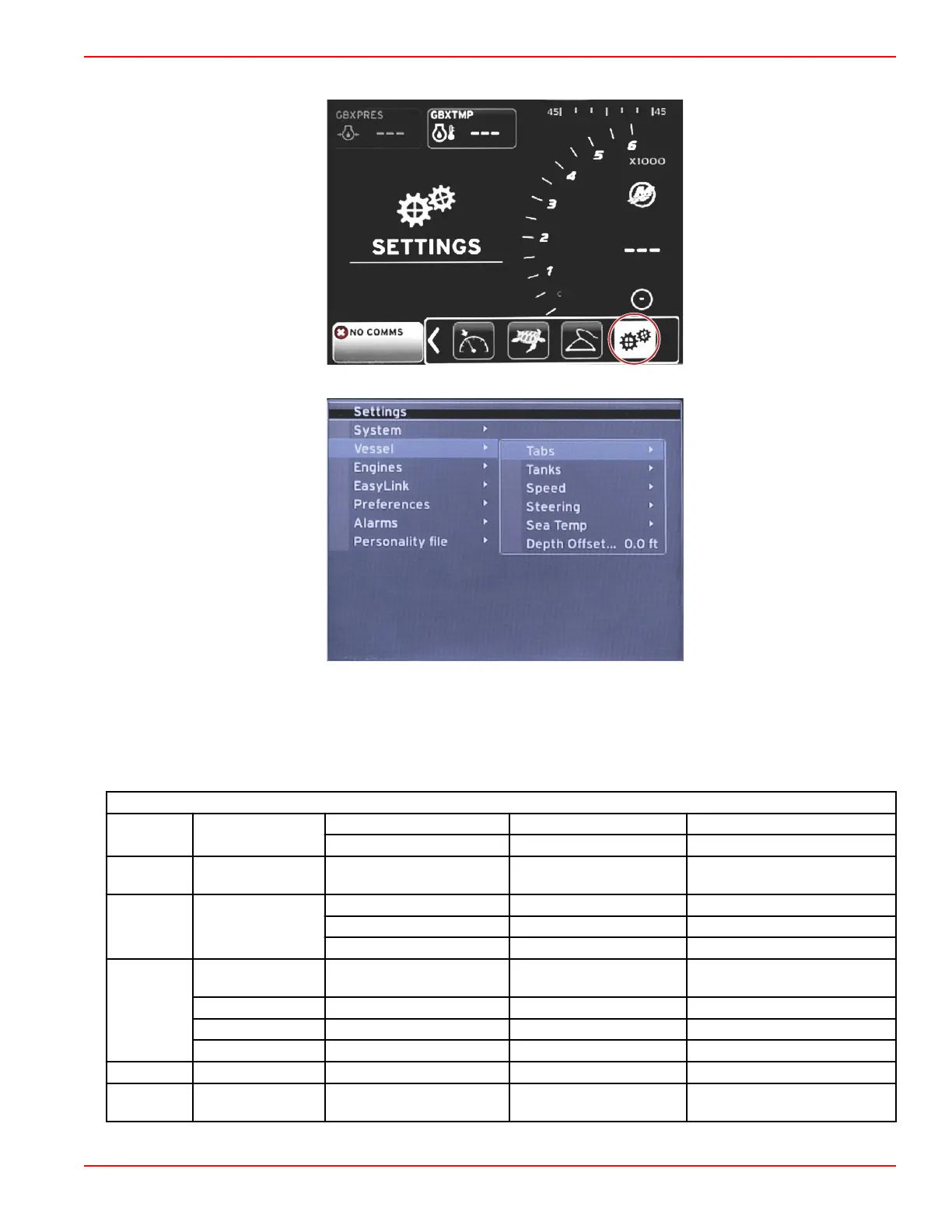

Vessel allows the operator to assign the source of tab data, configure tank names and capacities, determine speed source,
assign the speed and sea temperature, and set the depth transducer offset, source of engines, the number of fuel tanks, and
the total fuel capacity. The fuel capacity can also be reset after refueling.
The greater than sign (>) indicates additional menu choices. An asterick (*) indicates additional information on this settings
menu item.
Vessel
Tabs > Source >
Starboard Calibration > Calibration Window > Reset, Save, or Cancel
Outboard Calibration > Calibration Window > Reset, Save, or Cancel
Tanks >
Tank name and
position >
Calibration > Calibration Window > Reset, Save, or Cancel *
Speed > Speed Source >
Strategy or GPS > GPS > CAN P or CAN H
Pitot > Pitot Source > Sensor Type
Paddle wheel > Paddle wheel Source > Sensor—Current or Legacy
Steering >
Steering Angle
Source >
Selection
Show > Dot—display, Empty—hide
Invert Steering > Dot—yes, Empty—no *
Offset > Offset options > Save or Cancel *
Sea Temp > Selection >
Depth
Offset >
Offset > Offset options > Calibration > Save or Cancel
To Next Page
