Mercusys ac12 User Manual

AC12
AC1200 Dual Band Wireless Router
- 11 -
4.2 Network
Choose Network, you can view and customize the basic Internet settings on the page.

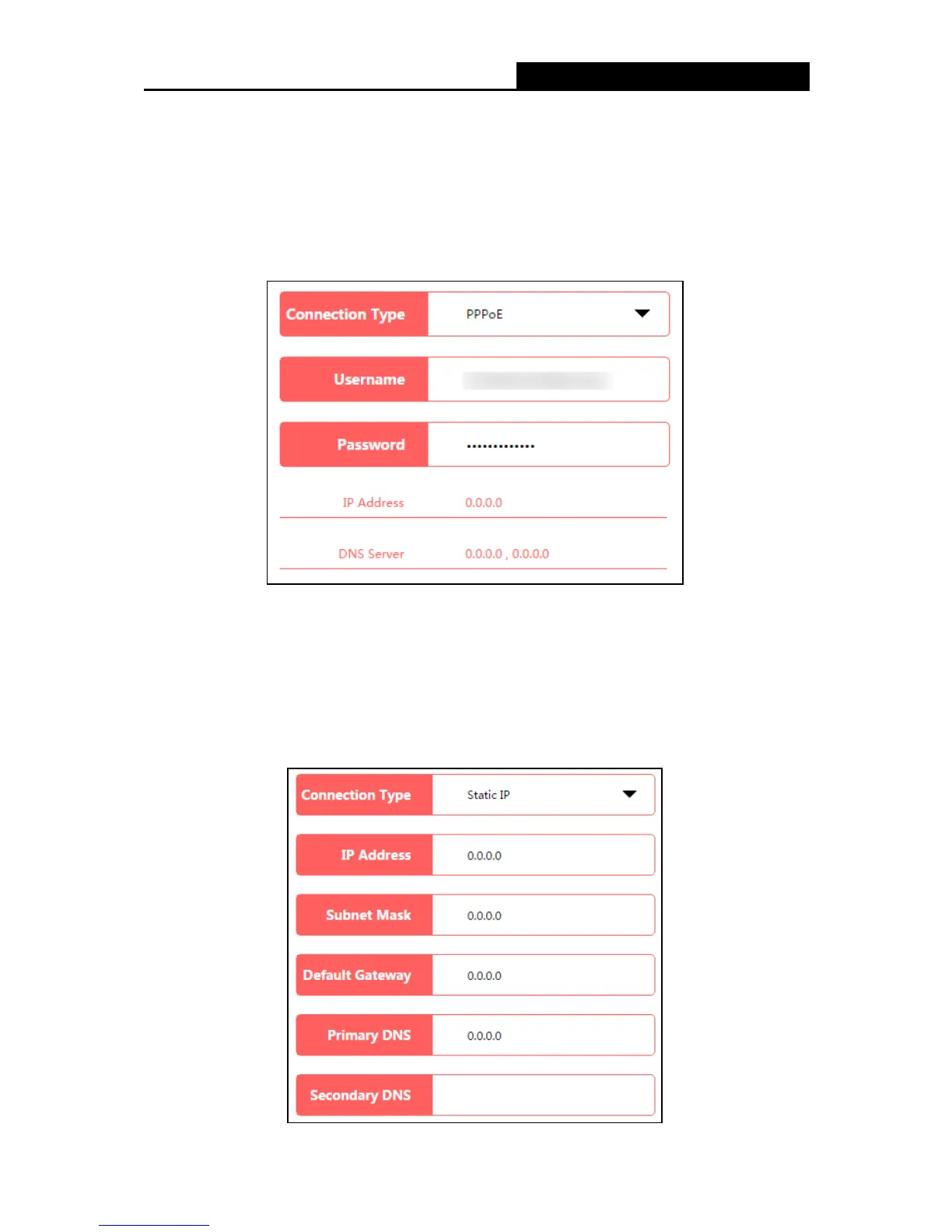

1. PPPoE
If your ISP provides a PPPoE username and password, select PPPoE, and enter the parameters.
 Username/Password - Enter the username and password provided by your ISP. These
fields are case-sensitive.
2. Static IP
If your ISP provides a static IP Address, Subnet Mask, Gateway and DNS setting, select Static
IP and enter the parameters.

Mercusys ac12 Specifications

General

Product type	Tabletop router
Product color	Black
DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Mobile network generation	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Certification	CE, ROHS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Package depth	288 mm
Package width	382 mm
Package height	66 mm
Package weight	640 g

Weight and Dimensions

Depth	140 mm
Width	222 mm
Height	32 mm
