Mercusys ac12 User Manual

AC12
AC1200 Dual Band Wireless Router
- 32 -
1. Click and drag across the cells to set the restriction time periods.
2. Click Save .

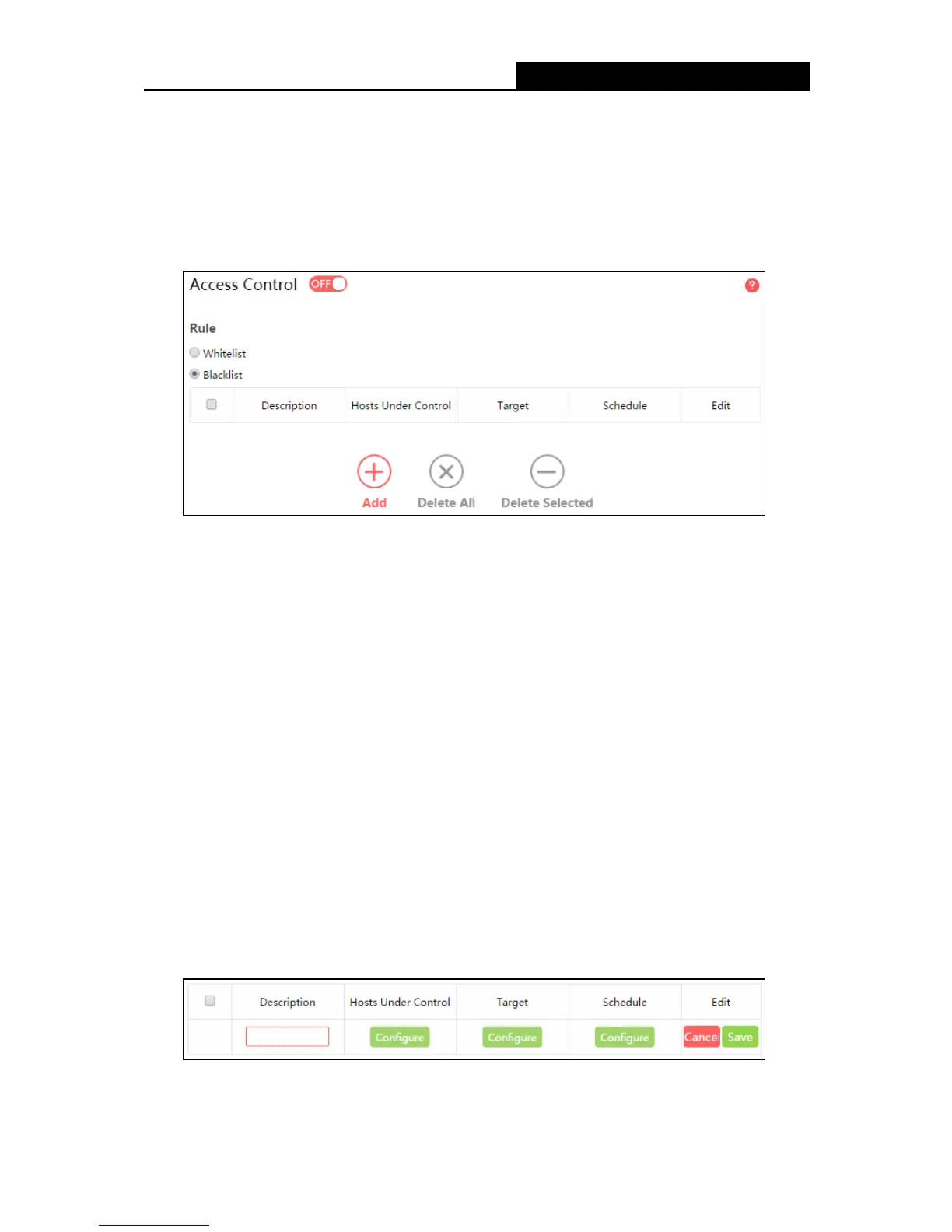

5.4.2 Access Control
Go to Network Control
→
Access Control, and then you can configure the access control in the
screen.
 Access Control - Click the button to enable or disable Access Control.
 White List - Select to allow only the Internet activities specified in the table.
 Black List - Select to block only the Internet activities specified in the table
 Description - Displays the name of the rule and this name is unique.
 Hosts Under Control - Displays the host selected in the corresponding rule.
 Targe t - Displays the target selected in the corresponding rule.
 Schedule - Displays the schedule selected in the corresponding rule.
 Edit - Here you can edit an existing rule.
 Add - Click to add a new rule entry.
 Delete All - Click to delete all the entries in the table.
 Delete Selected - Click to delete selected entries in the table.
To add a new rule, follow the steps below.
1. Toggle on to enable Access Control.
2. Select Whitelist or Blacklist.

Mercusys ac12 Specifications

General

Product type	Tabletop router
Product color	Black
DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Mobile network generation	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Certification	CE, ROHS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Package depth	288 mm
Package width	382 mm
Package height	66 mm
Package weight	640 g

Weight and Dimensions

Depth	140 mm
Width	222 mm
Height	32 mm
