Mercusys ac12 User Manual

AC12
AC1200 Dual Band Wireless Router
- 27 -

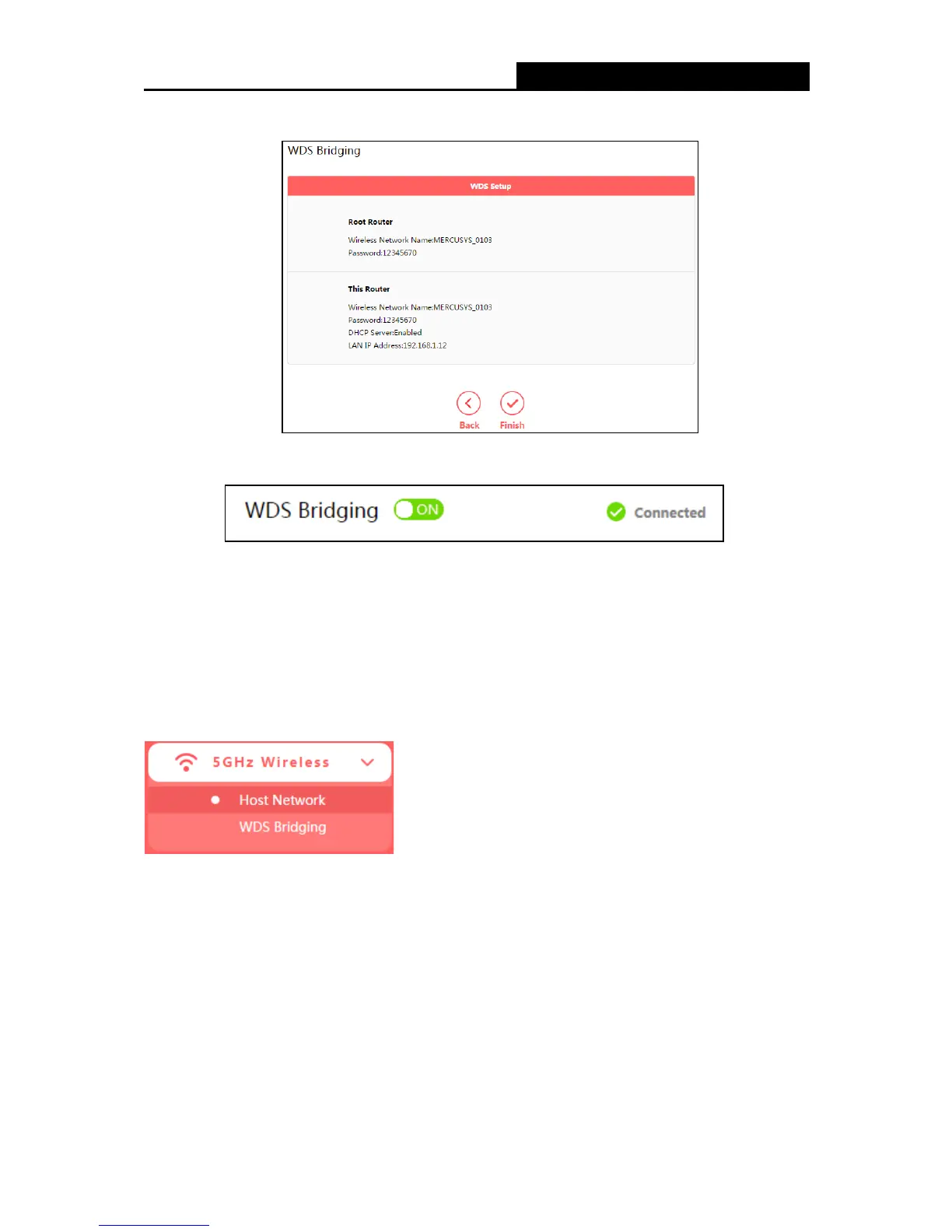

4. Check the parameters and click Finish to complete the setup.
5. The following information indicates successful connection.
Note: If you have changed the LAN IP address of your router during the setup, you need to log in
to the web management page using the domain name (mwlogin.net) or the new LAN IP you have
just set.
5.3 5GHz Wireless
There are two submenus under the 5GHz Wireless menu: Host Network and WDS Bridging.
Click any of them, and you will be able to configure the corresponding function.
5.3.1 Host Network
Go to 5GHz Wire le ss
→
Host Networ k, you can configure the settings for the 5GHz wireless host
network on this page.

Mercusys ac12 Specifications

General

Product type	Tabletop router
Product color	Black
DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Mobile network generation	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Certification	CE, ROHS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Package depth	288 mm
Package width	382 mm
Package height	66 mm
Package weight	640 g

Weight and Dimensions

Depth	140 mm
Width	222 mm
Height	32 mm
