Mercusys ac12 User Manual

AC12
AC1200 Dual Band Wireless Router
- 39 -
 Refresh - Click to update the current UPnP settings list.
5.5.4 Advanced Routing
Go to Advanced Use rs
→
Advanced Routing, and then you can configure the static routing and
view system routing list. Advanced routing is used to predetermine a fixed route for the network
information packets to reach a specific host or network.

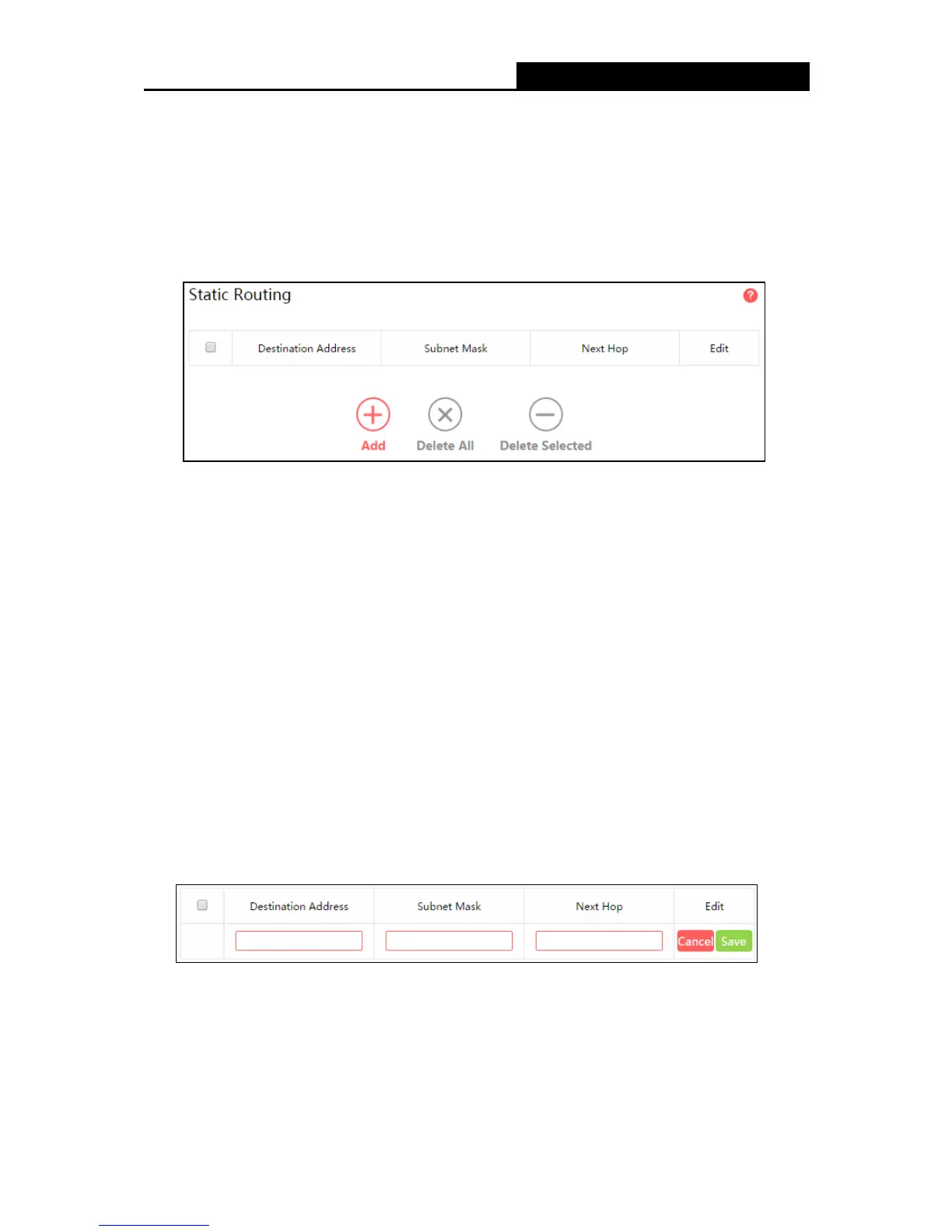

 Static Routing
 De stination Address - The address of the network or host that you want to assign to a static
route.
 Subnet Mask - The Subnet Mask determines which portion of an IP Address is the network
portion, and which portion is the host portion.
 Ne xt Ho p - The IP Address of the gateway device that allows for contact between the router
and the network or host.
 Edit - Here you can edit an existing entry.
 Add - Click to add a new rule entry.
 Delete All - Click to delete all the entries in the table.
 Delete Selected - Click to delete selected entries in the table.
To add a static routing entry:
1. Click Ad d.
2. Enter the parameters in the corresponding fields.
3. Click Save to make the settings effective.

Mercusys ac12 Specifications

General

Product type	Tabletop router
Product color	Black
DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Mobile network generation	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Certification	CE, ROHS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Package depth	288 mm
Package width	382 mm
Package height	66 mm
Package weight	640 g

Weight and Dimensions

Depth	140 mm
Width	222 mm
Height	32 mm
