Mercusys ac12 User Manual

AC12
AC1200 Dual Band Wireless Router
- 38 -

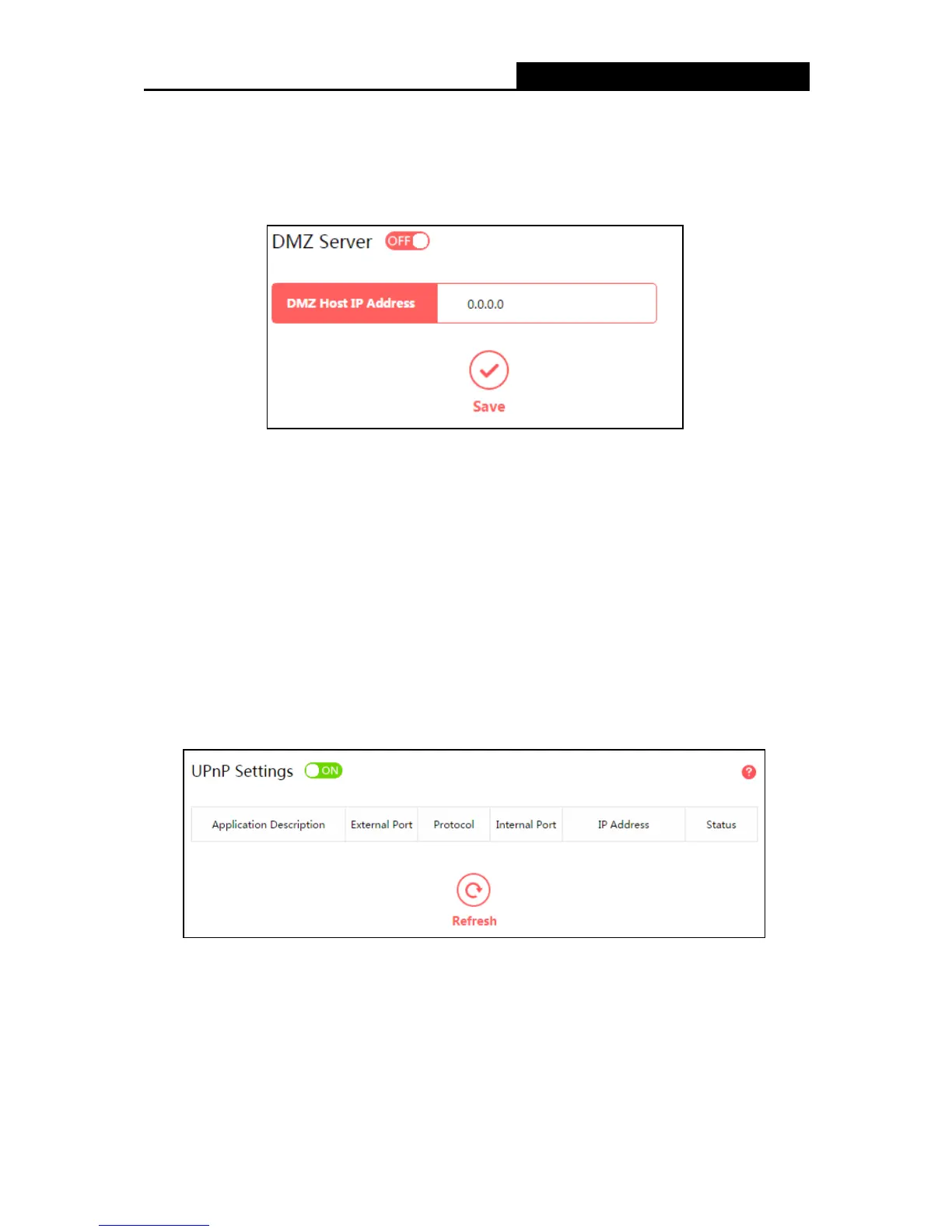

5.5.2 DMZ Server
Go to Adv ance d User s
→
DM Z Server, and then you can view and configure DMZ host on the
page. The DMZ host feature allows one local host to be exposed to the Internet for a
special-purpose service such as Internet gaming or video conferencing.
To assign a computer or server to be a DMZ server:
1. Enter the IP address of a local PC that is set to be DMZ host in the DMZ Host IP Address
field.
2. Click Save .
3. Toggle On to enable DMZ Server.
5.5.3 UPnP Settings
Go to Adv ance d Users
→
UPnP Se t tin gs, and then you can view the information about UPnP.
The Universal Plug and Play (UPnP) feature allows the devices, such as Internet computers, to
access the local host resources or devices as needed. UPnP devices can be automatically
discovered by the UPnP service application on the LAN.
 App lication Description - The description about the application which initiates the UPnP
request.
 External Port - The port which the router opened for the application.
 Protocol - The type of protocol which is opened.
 Internal Port - The port which the router opened for local host.
 IP Address - The IP address of the local host which initiates the UPnP request.
 Status – Displays the port is active or not.

Mercusys ac12 Specifications

General

Product type	Tabletop router
Product color	Black
DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Mobile network generation	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Certification	CE, ROHS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Package depth	288 mm
Package width	382 mm
Package height	66 mm
Package weight	640 g

Weight and Dimensions

Depth	140 mm
Width	222 mm
Height	32 mm
