Mercusys ac12 User Manual

AC12
AC1200 Dual Band Wireless Router
- 28 -

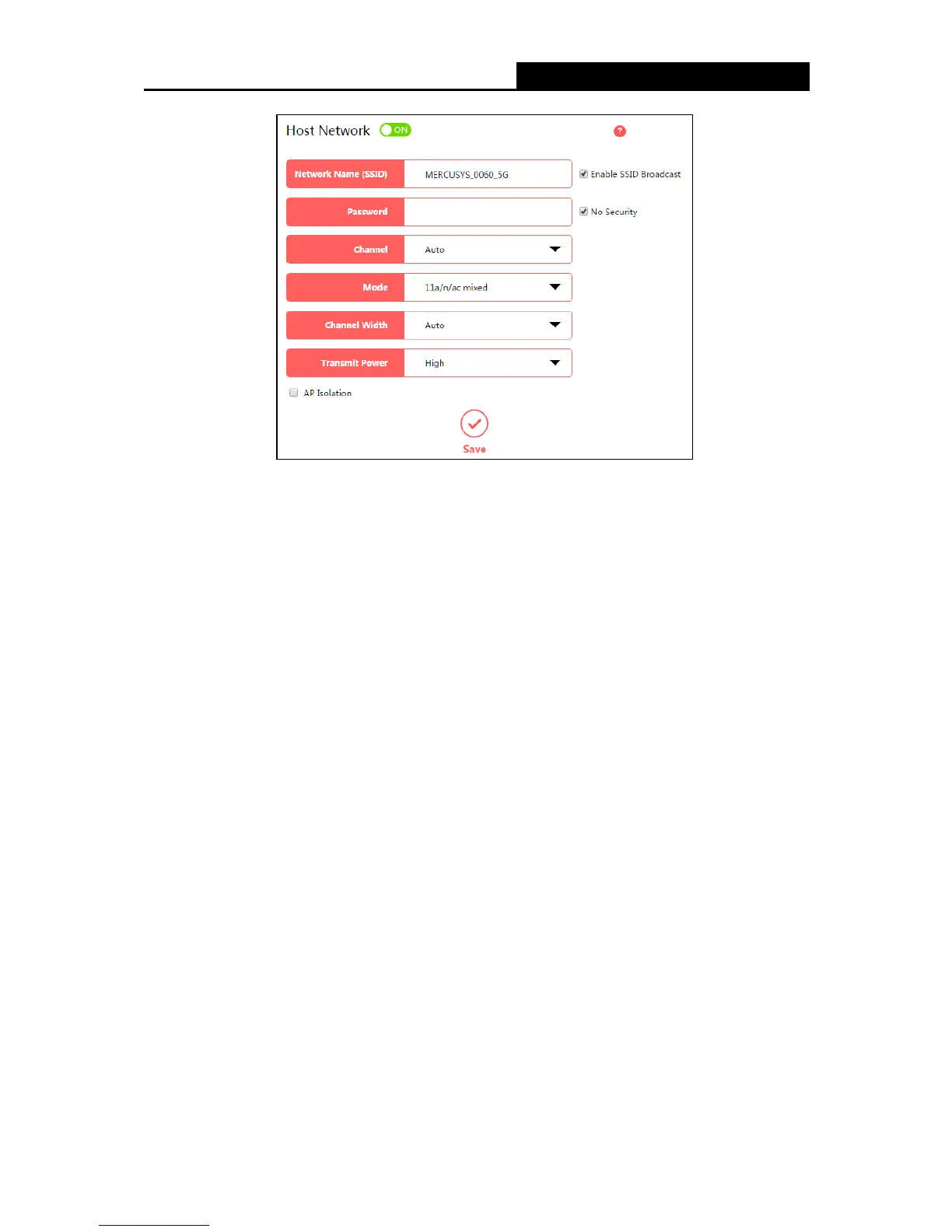

 Network Name (SSID) - Enter a value of up to 32 characters. The default SSID is
MERCUSYS_XXXX_5G (XXXX indicates the last unique four numbers of each router’s
MAC address).
 Password - Enter 8-63 characters using a combination of numbers, letters and symbols. The
security version is WPA2-PSK/WPA-PSK, which supports AES encryption that provides a
good level of security. If you select No Security, the filed will be left blank.
 Channel - This field determines which operating frequency will be used. The default channel
is set to Au to , so the router will choose the best channel automatically. It is not necessary to
change the wireless channel unless you notice interference problems with another nearby
access point.
 Mode - Select the desired mode.
Select the desired wireless mode. It is recommended to select 11a/n/ac mixed, and all of
802.11a, 802.11n and 802.11ac wireless clients can connect to the router.
11 a/n/ac mixed - Select if you are using a mix of 802.11a, 802.11n and 802.11ac wireless
clients.
11 a/n mixed - Select if you are using both 802.11a and 802.11n wireless clients.
 Channel width - Select the channel width from the drop-down list. The default setting is
Auto , which can adjust the channel width for your clients automatically.
 Transmit Power - Select either High, Middle, or Low to specify the data transmit power. The
default and recommended setting is High.
 Enable SSID Broadcast - If you select the Enable SSID Broadcast checkbox, the wireless
router will broadcast its name (SSID) on the air.

Mercusys ac12 Specifications

General

Product type	Tabletop router
Product color	Black
DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Mobile network generation	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Certification	CE, ROHS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Package depth	288 mm
Package width	382 mm
Package height	66 mm
Package weight	640 g

Weight and Dimensions

Depth	140 mm
Width	222 mm
Height	32 mm
