Mercusys MW306R User Manual

115
Chapter 7

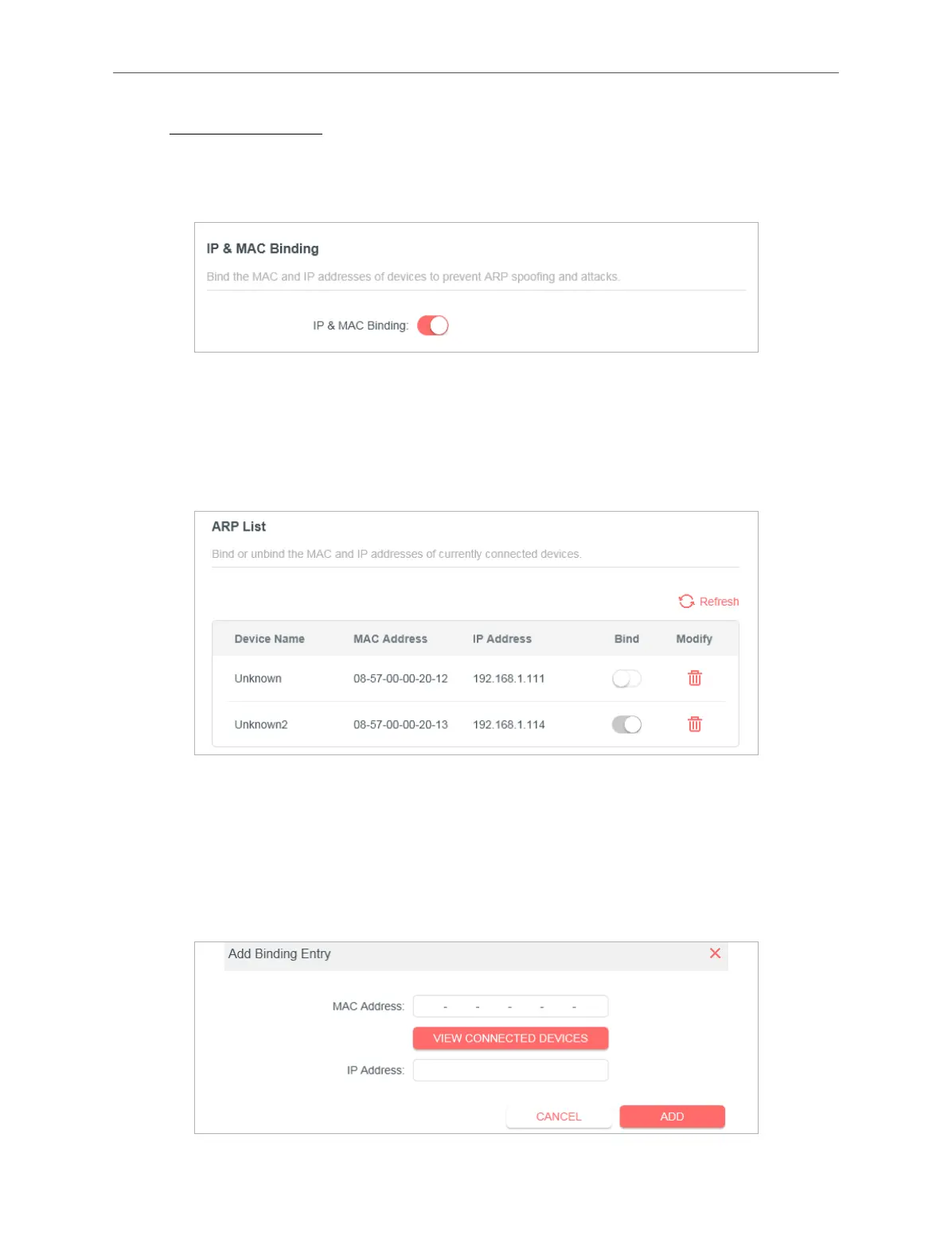

1. Visit http://mwlogin.net, and log in with the password you set for the router.
2. Go to Advanced > Security > IP & MAC Binding.
3. Enable IP & MAC Binding and click SAVE.
4. Bind your device(s) according to your need.
To bind the connected device(s):
Locate the ARP List section and enable Bind to bind the IP and MAC addresses of a
specific device.
To add a binding entry:
1 ) Click Add in the Binding List section.
2 ) Click VIEW CONNECTED DEVICES and select the device you want to bind. Or enter
the MAC Address and IP Address that you want to bind.
3 ) Click ADD.

Mercusys MW306R Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11d, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	-
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA-PSK, WPA2-PSK
Power source type	AC, DC
Product type	Tabletop router
Product color	White
Antennas quantity	3

Weight and Dimensions

Depth	115 mm
Width	147 mm
Height	34 mm
