Mercusys MW306R User Manual

101
Chapter 7

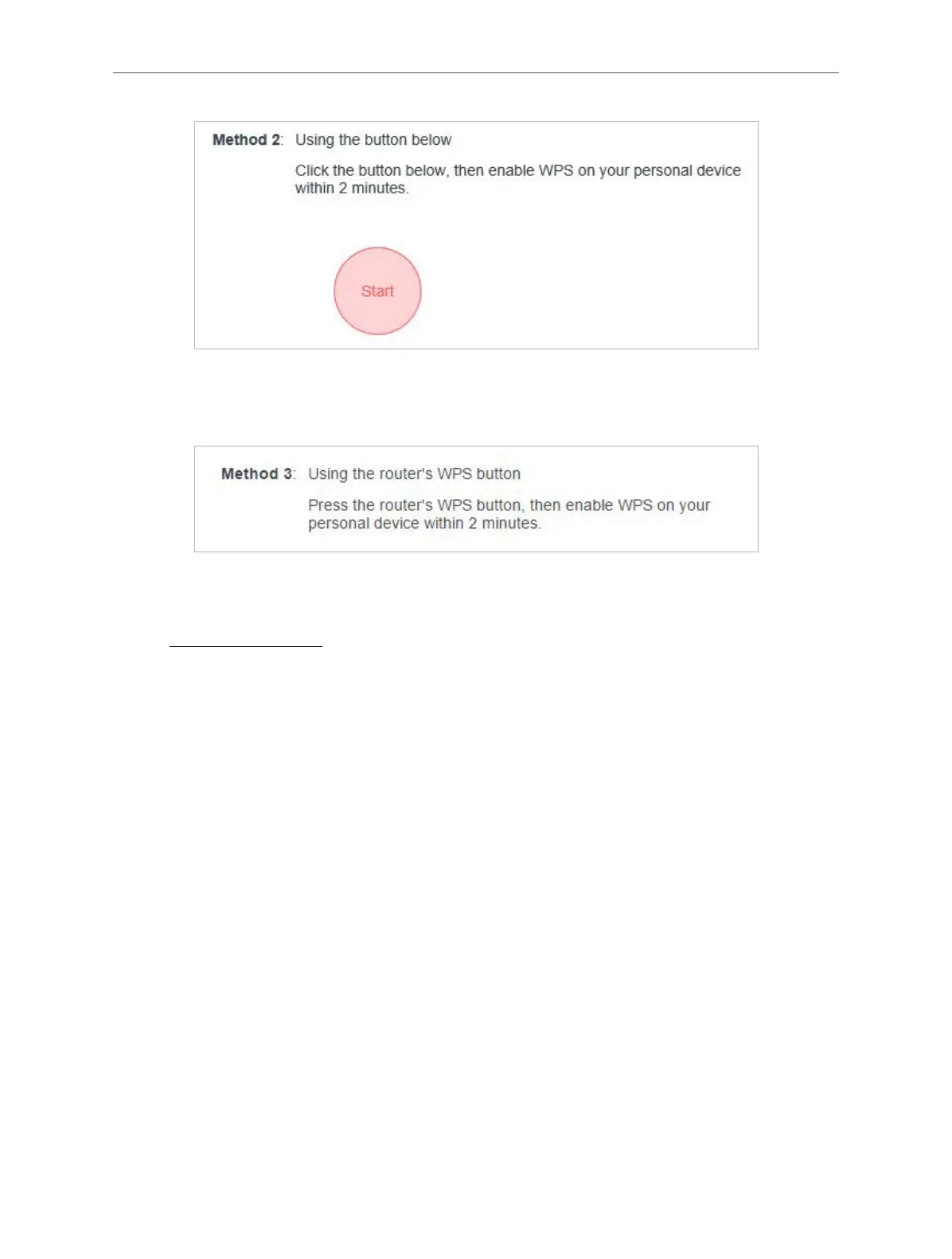

Method 3: Using the WPS Button on the Router
Press the router’s WPS button. Within two minutes, enable WPS on your personal device.
7. 3. 5. Additional Settings
1. Visit http://mwlogin.net, and log in with the password you set for the router.
2. Go to Advanced > Wireless > Additional Settings.
3. Configure the advanced settings of your wireless network and click Save.
Note:
If you are not familiar with the setting items on this page, it’s strongly recommended to keep the provided default values;
otherwise it may result in lower wireless network performance.

Mercusys MW306R Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11d, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	-
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA-PSK, WPA2-PSK
Power source type	AC, DC
Product type	Tabletop router
Product color	White
Antennas quantity	3

Weight and Dimensions

Depth	115 mm
Width	147 mm
Height	34 mm
