Chapter 4

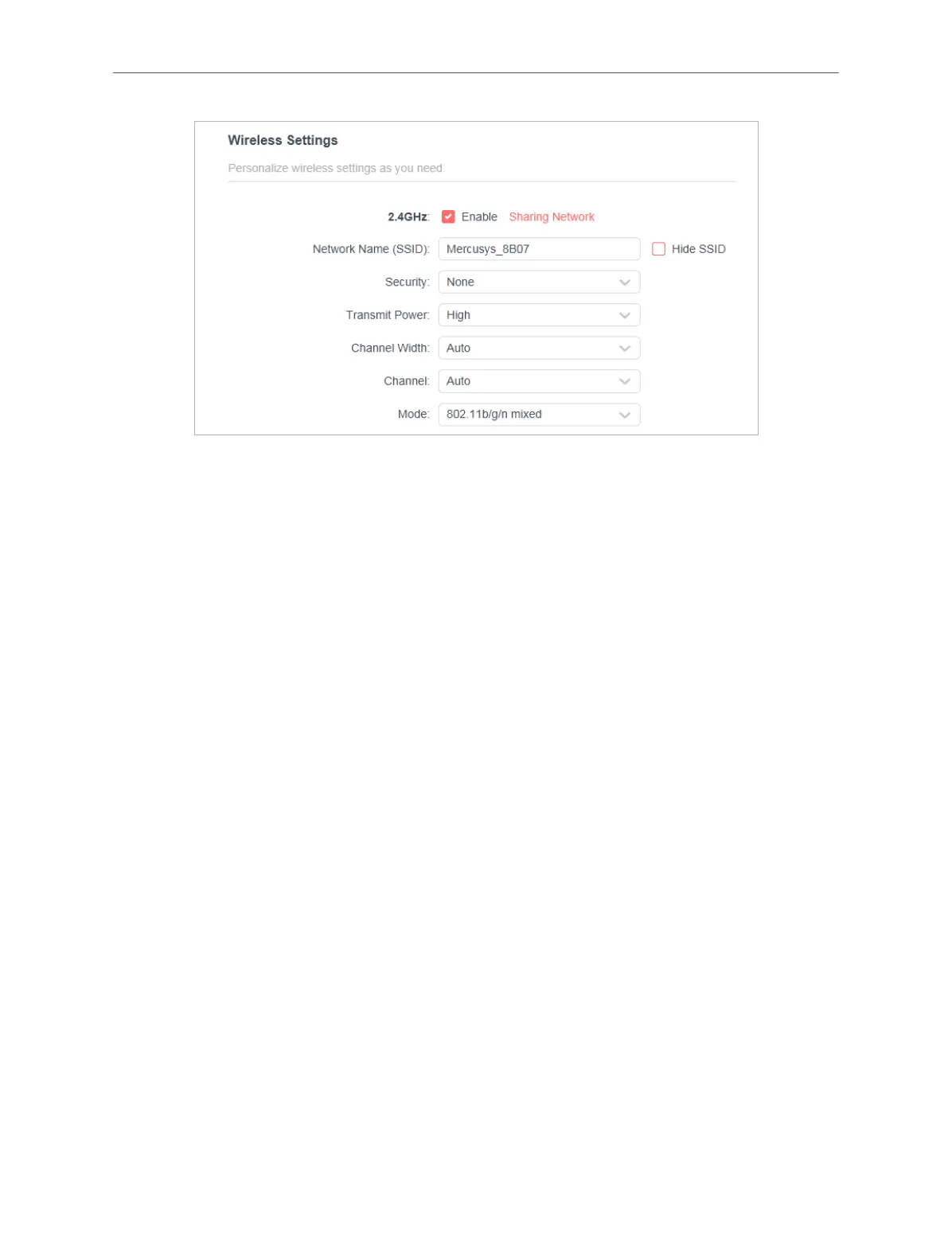

• 2.4GHz - Select this checkbox to enable the 2.4GHz wireless network.

• Network Name (SSID) - Enter a value of up to 32 characters. The same Name (SSID) must

be assigned to all wireless devices in your network.

• Hide SSID - Select this checkbox if you want to hide the 2.4GHz network name (SSID)

from the Wi-Fi network list. In this case, you need to manually join the network.

• Security - Select an option from the Security drop-down list.

• None - No security. It is highly recommend you enable the wireless security to

protect your wireless network from unauthorized access.

• WPA-PSK/WPA2-Personal - It’s the WPA/WPA2 authentication type based on pre-

shared passphrase. It’s also the recommended security type.

• WPA /WPA2-Enterprise - It’s based on Radius Server.

• WEP - It is based on the IEEE 802.11 standard.

• Version - Keep default version value.

• Encryption - Select Auto, TKIP or AES. We recommend you keep the default settings.

• Transmit Power - Select High, Middle or Low to specify the data transmit power. The

default and recommended setting is High.

• Channel Width - Select a channel width (bandwidth) for the wireless network.

• Channel - Select an operating channel for the wireless network. It is recommended to

leave the channel to Auto, if you are not experiencing the intermittent wireless connection

issue.

• Mode - You can choose the appropriate “Mixed” mode.

4. 3. 2. Guest Network

Guest Network allows you to provide Wi-Fi access for guests without disclosing your host

network. When you have guests in your house, apartment, or workplace, you can create a
