Chapter 2

Chapter 2. Connect to the Internet

2. 1. Position Your Router

• The product should not be located in a place where it will be exposed to moisture or

excessive heat.

• Place the router in a location where it can be connected to multiple devices as well as to

a power source.

• Make sure the cables and power cord are safely placed out of the way so they do not

create a tripping hazard.

• The router can be placed on a shelf or desktop.

• Keep the router away from devices with strong electromagnetic reference, such as

Bluetooth devices, cordless phones and microwaves.

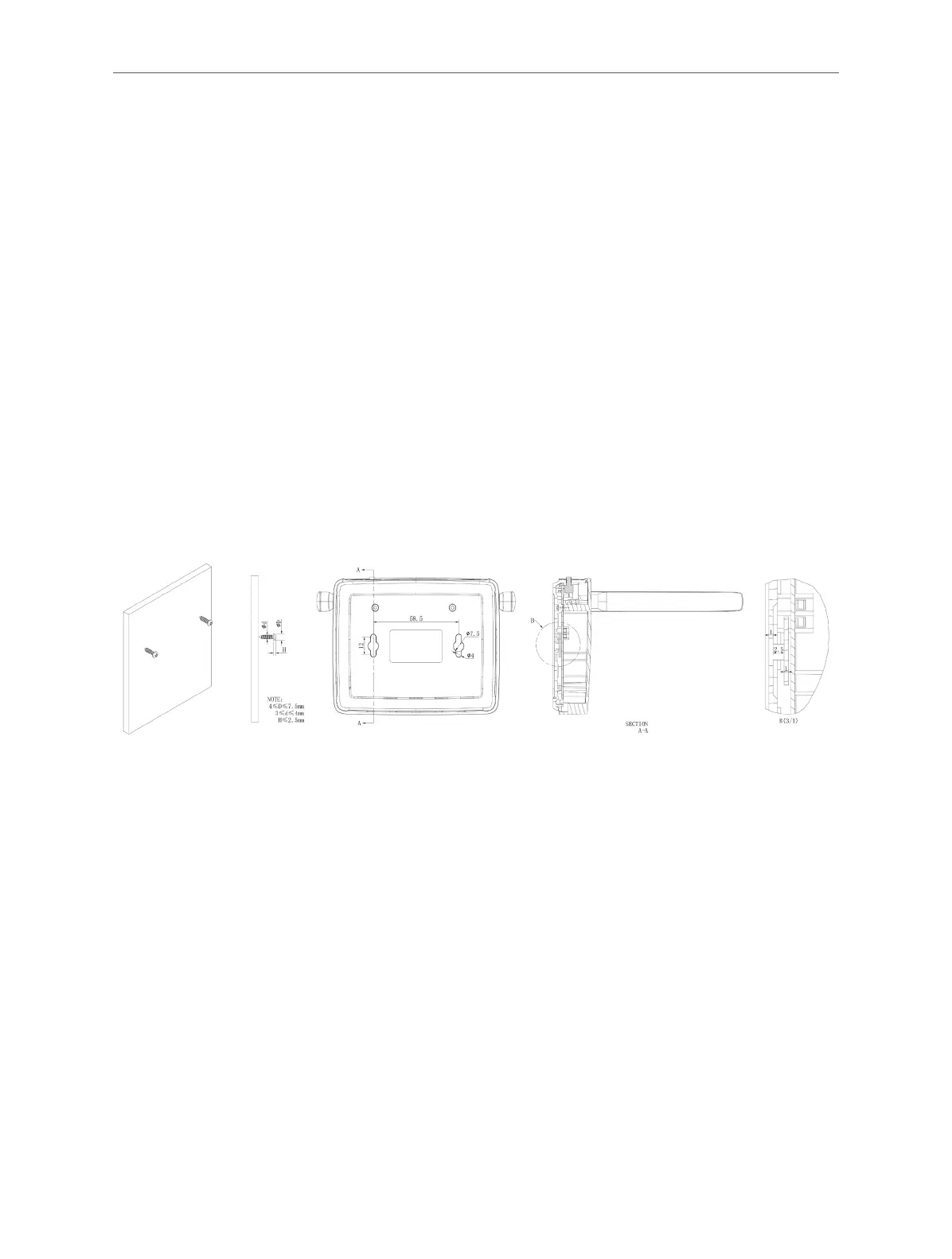

Generally, the router is placed on a horizontal surface, such as on a shelf or desktop. The

device also can be mounted on the wall as shown in the following figure.

Note:

The diameter of the screw head, 4mm<D<7.5mm, and the distance of two screws is 58.5mm. The screw that project from the

wall need around 3.5mm based, and the length of the screw need to be at least 20mm to withstand the weight of the product.

2. 2. Connect to the Internet

The Router provides four working modes: Wireless Router, Access Point, Range Extender

and WISP. You can choose the mode to better suit your network needs and follow the guide

to complete the configuration.

2. 2. 1. Wireless Router Mode

In this mode, the router can provide internet access for multiple wired and wireless devices.

This mode is required most commonly.
