Mercusys MW306R User Manual

38
Chapter 4
RouterXbox
LAN
WAN
LAN WA N POWER RESET/WPS

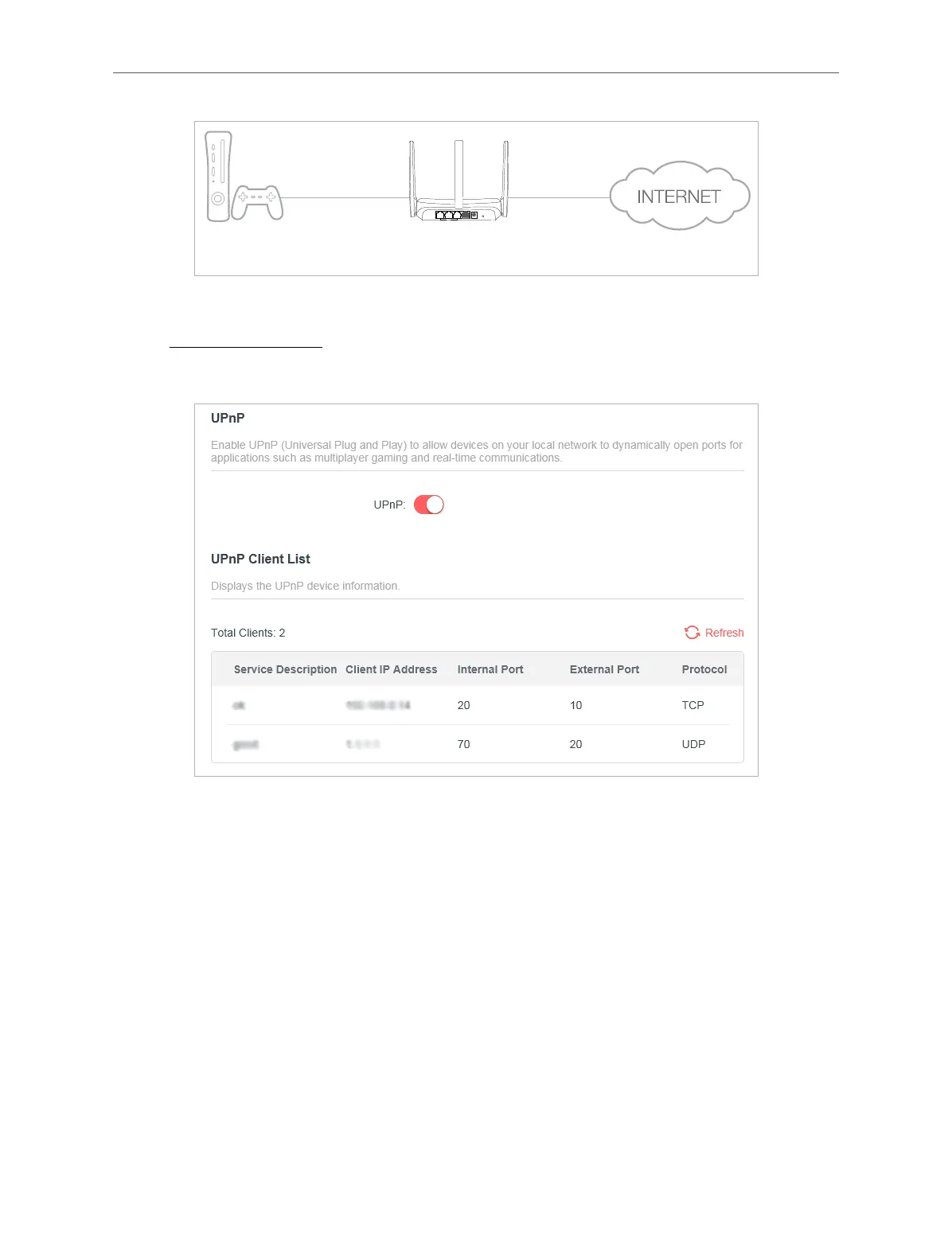

If necessary, you can follow the steps to change the status of UPnP.
1. Visit http://mwlogin.net, and log in with the password you set for the router.
2. Go to Advanced > NAT Forwarding > UPnP and toggle on or off according to your needs.
4. 4. 4. DMZ
When a PC is set to be a DMZ (Demilitarized Zone) host in the local network, it is totally
exposed to the internet, which can realize the unlimited bidirectional communication
between internal hosts and external hosts. The DMZ host becomes a virtual server with
all ports opened. When you are not clear about which ports to open in some special
applications, such as IP camera and database software, you can set the PC to be a DMZ
host.
Note:
DMZ is more applicable in the situation that users are not clear about which ports to open. When it is enabled, the DMZ host is
totally exposed to the internet, which may bring some potential safety hazards. If DMZ is not in use, please disable it in time.
I want to:
Make the home PC join the internet online game without port restriction.
For example, due to some port restriction, when playing the online games, you can log in

Mercusys MW306R Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11d, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	-
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA-PSK, WPA2-PSK
Power source type	AC, DC
Product type	Tabletop router
Product color	White
Antennas quantity	3

Weight and Dimensions

Depth	115 mm
Width	147 mm
Height	34 mm
