Mercusys MW306R User Manual

120
Chapter 7

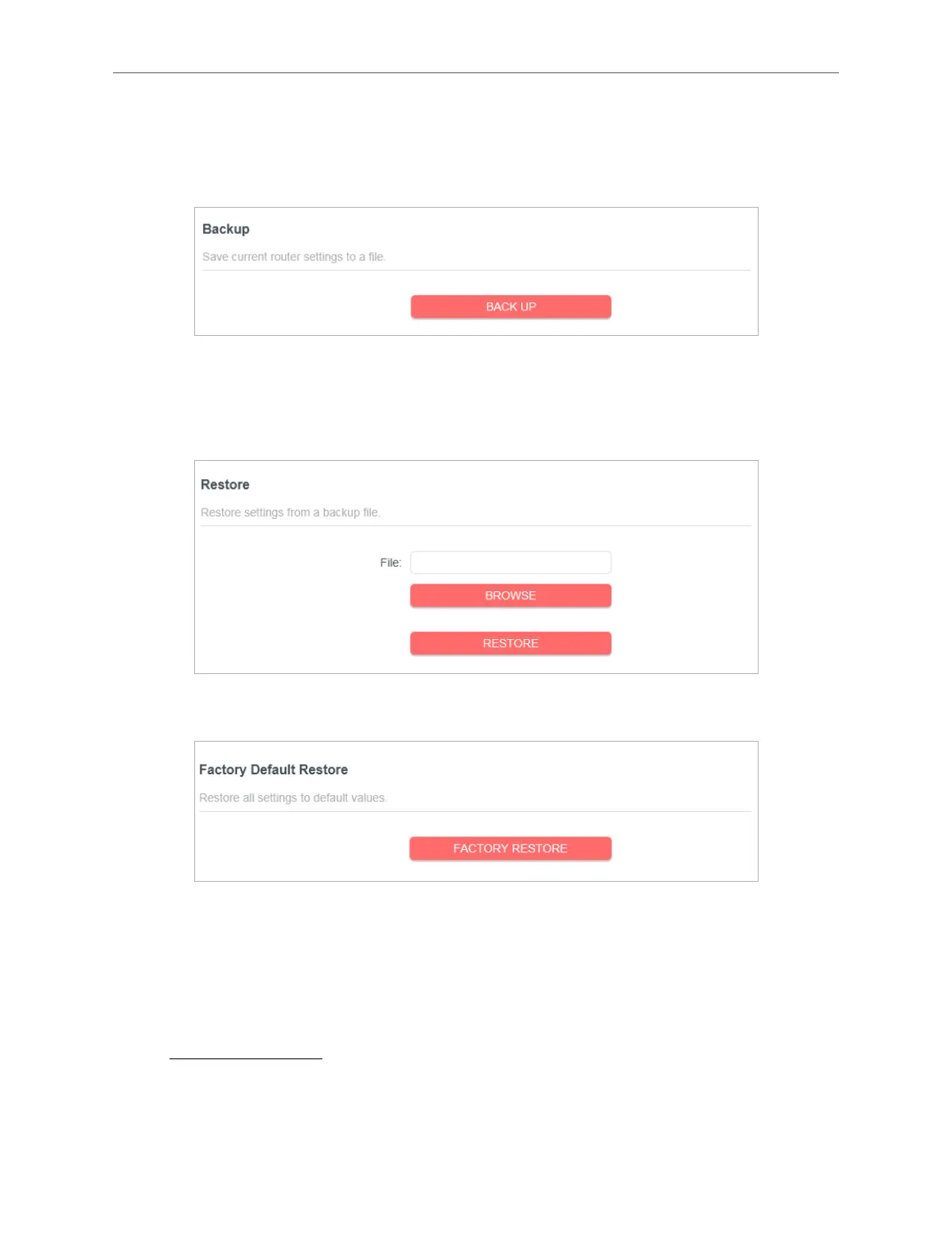

To backup configuration settings:
Click BACK UP to save a copy of the current settings in your local computer. A “.bin“ file of
the current settings will be stored in your computer.
To restore configuration settings:
1. Click BROWSE to locate the backup configuration file stored in your computer, and click
RESTORE.
2. Wait a few minutes for the restoring and rebooting.
To reset the router to factory default settings:
1. Click FACTORY RESTORE to reset the router.
2. Wait a few minutes for the restoring and rebooting.
Note:
• During the resetting process, do not turn off or reset the router.
• We strongly recommend you back up the current configuration settings before resetting the router.
7. 9. 3. Change Password
1. Visit http://mwlogin.net, and log in with the password you set for the router.
2. Go to Advanced > System > Administration, and focus on the Change Password section.

Mercusys MW306R Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11d, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	-
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA-PSK, WPA2-PSK
Power source type	AC, DC
Product type	Tabletop router
Product color	White
Antennas quantity	3

Weight and Dimensions

Depth	115 mm
Width	147 mm
Height	34 mm
